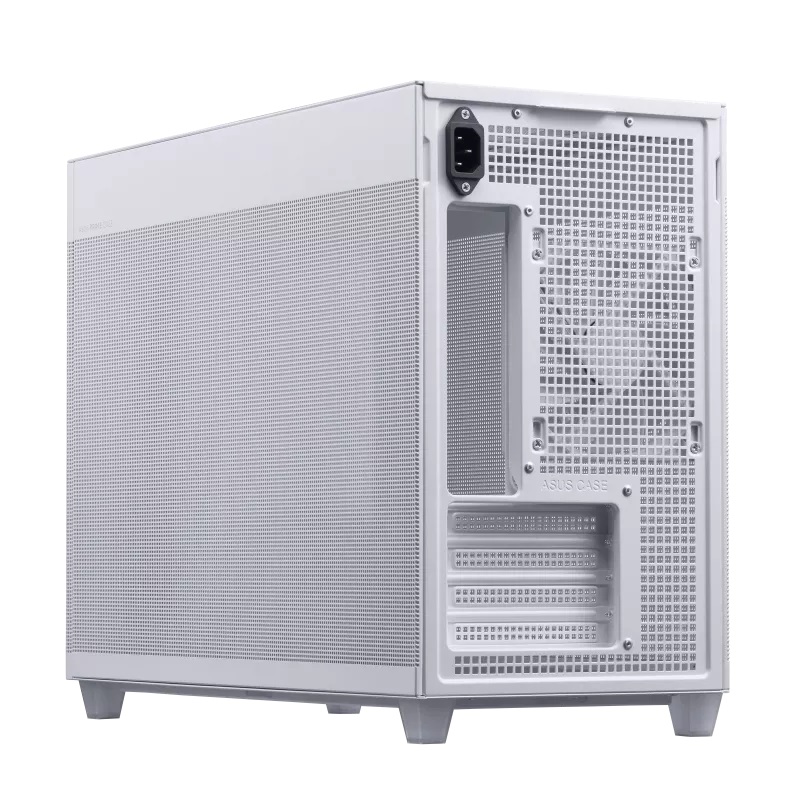

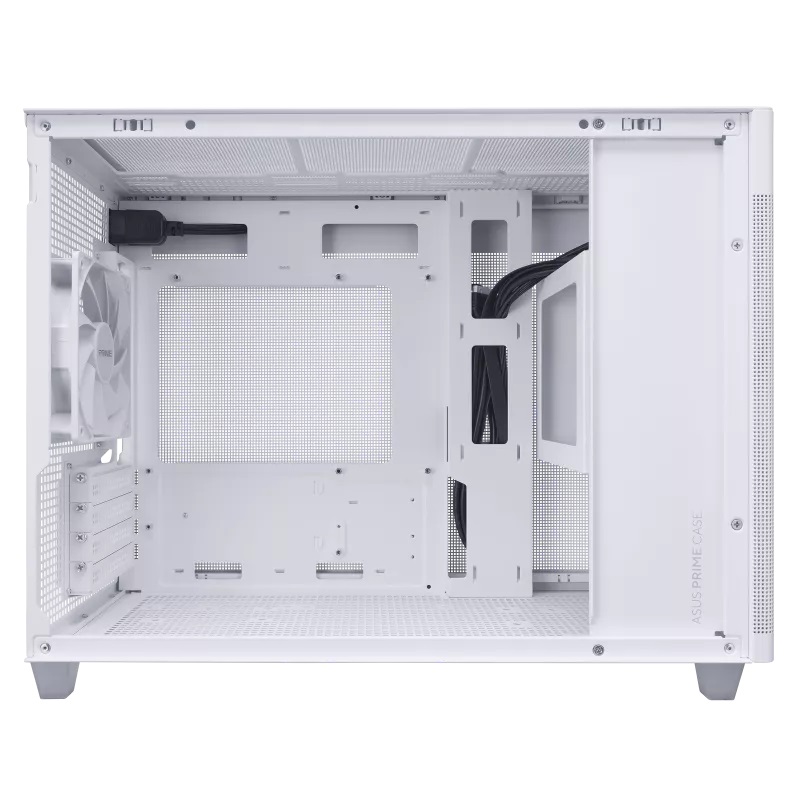

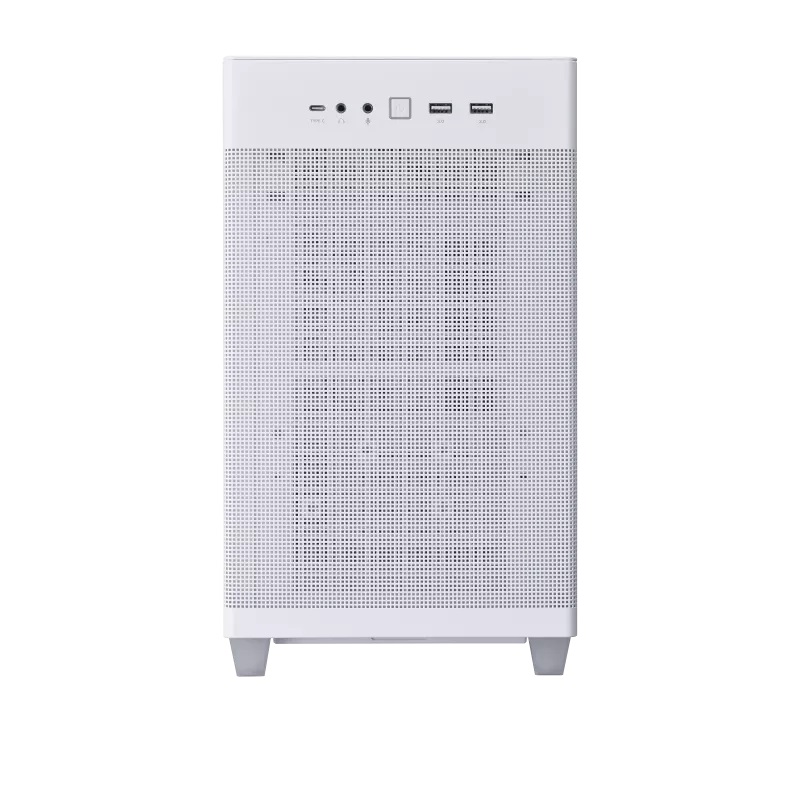

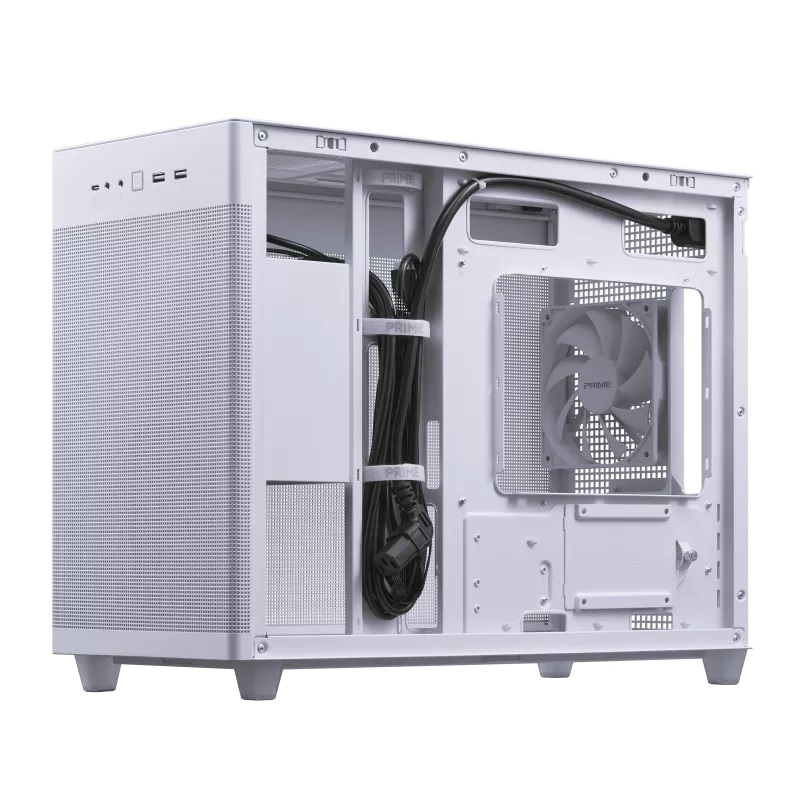

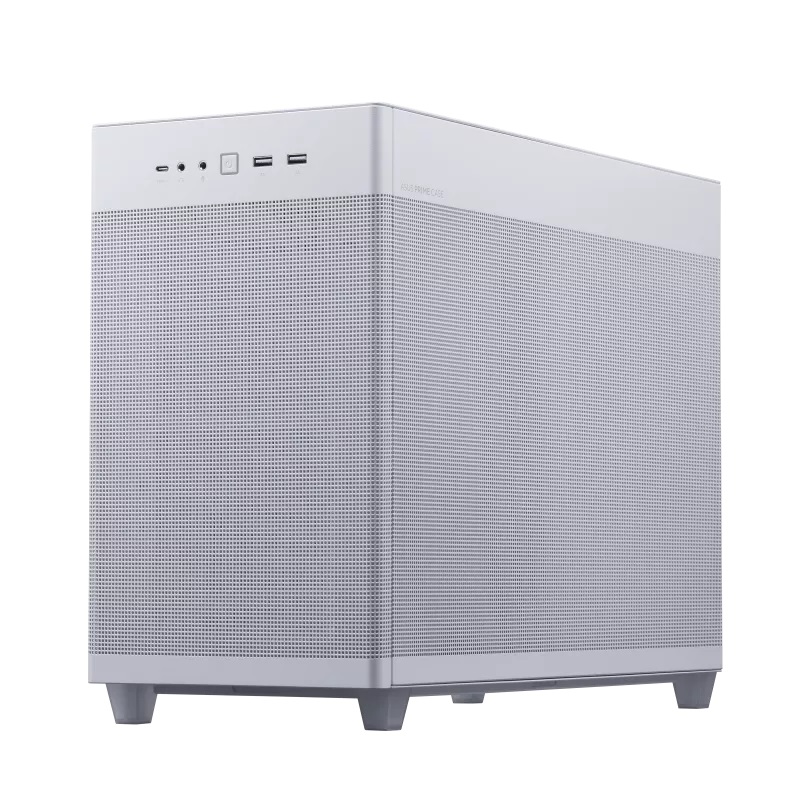

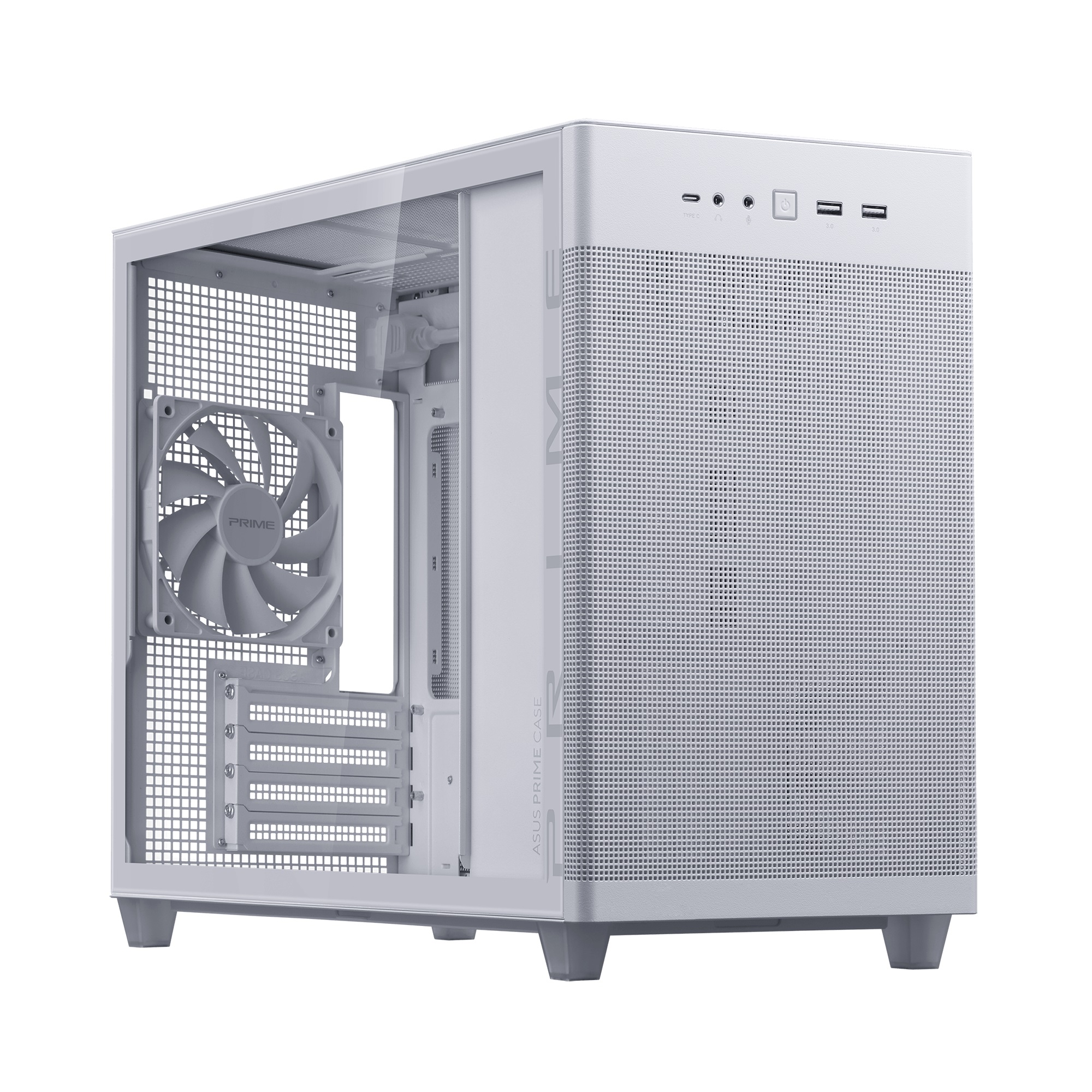

Case ASUS PRIME AP201 TG MicroATX White - 90DC00G3-B39010
- Form factor
- Mini Tower
- Panel
- Tempered glass
- Max. cooler size
- 170 mm
- Max. graphics card size
- 338 mm
- RGB
- No

Description
ASUS PRIME AP201 TG MicroATX White is a compact Mini Tower case with mATX format, aimed at mid-range builds with a focus on good ventilation and a clean look. You get a white chassis with tempered glass, which showcases the configuration without relying on RGB. Despite the small form factor, there is room inside for a graphics card up to 338 mm and a cooler up to 170 mm, so it comfortably fits a serious gaming or work setup. Support for water cooling up to 360 mm on top provides plenty of freedom for quiet and cool systems.
What you get
Inside, you have a well-thought-out layout – four expansion slots for a standard mATX motherboard configuration and enough space for an enthusiast-class graphics card up to 338 mm. The combination of support for an air cooler up to 170 mm and an option for a 360 mm water radiator on top allows you to choose whether to pursue a maximally quiet build or more aggressive cooling under high load. The slots for 3.5"/2.5" drives (up to 3 combined plus a separate 2.5") are more than sufficient for a typical gaming/creator build with one SSD for the system and 1–2 larger drives for storage. The front I/O ports – including USB 3.2 Gen2 Type-C – save you from digging behind the case and are convenient for fast external SSDs, headphones, and microphones.
- Case with Mini Tower form factor and mATX format, suitable for compact but serious configurations.
- Tempered glass on the panel, allowing you to showcase your hardware even without relying on RGB effects.
- Support for fans on top: 3 x 120 mm or 2 x 140 mm and at the rear 1 x 120 mm, with one 120 mm fan included from the factory at the rear.
- Water cooling support on top: 120/140/240/280/360 mm and at the rear 120 mm, providing flexibility for AIO solutions.
- Maximum graphics card size 338 mm and maximum CPU cooler height 170 mm, so you are not limited to low-end or entry-level hardware.
- Storage slots: 3 x 3.5" or 2.5" combined plus 1 x 2.5", no 5.25" bay, focusing on modern configurations without an optical drive.
- Front panel with 2 x USB 3.2 Gen1, 1 x USB 3.2 Gen2 Type-C, separate jacks for headphones and microphone for easy access to peripherals.
- Supported power supply units up to 180 mm, covering a wide spectrum of quality PSUs without hindering cable management.
- Weight of 5.8 kg and white color, combining into a light, easy-to-carry chassis with a clean look.
- No built-in RGB, suitable for minimalist builds or for those who will rely on the lighting of individual components.
Who it is suitable for
This case is a good choice if you want a compact mATX build for gaming or work, without giving up on a long graphics card and serious cooling. It is suitable for people who want a clean white setup with visible hardware through the glass panel and do not care about built-in RGB. It is not the best option if you are looking for space for many 5.25" devices or a massive workstation with an E-ATX motherboard.
The combination of 360 mm water cooling support, a graphics card up to 338 mm, and convenient front I/O ports in a compact, white Mini Tower chassis makes the ASUS PRIME AP201 TG MicroATX White a very practical base for a modern and tidy build.
Full specifications
- Manufacturer
-
ASUS
- Product code
- 90DC00G3-B39010
- Format
-
Mini ITXmATX
- Form factor
- Mini Tower
- Supported fans
-
Top: 3 x 120 mm / 2 x 140 mmBack: 1 x 120 mm
- Included fans
-
Rear panel: 1 x 120mm
- Panel
- Tempered glass
- Expansion slots
-
4
- Number of 2.5" / 3.5" slots
-
1 x 2.5"3 x 3.5’’ or 2.5’’
- Number of 5.25" slots
-
No
- I/O ports
-
1 x Headphone1 x Microphone2 x USB 3.2 Gen11 x USB 3.2 Gen2 Type C
- Max. cooler size
- 170 mm
- Max. graphics card size
- 338 mm
- Power supply unit power
-
Without power supply unit
- Supported power supplies
-
up to 180mm
- Water cooling support
-
Top: 120/140/240/280/360 mmBack: 120 mm
- Color
-
White
- Weight (kg)
- 5.8
- RGB
-
No
- Warranty
- 36 months
