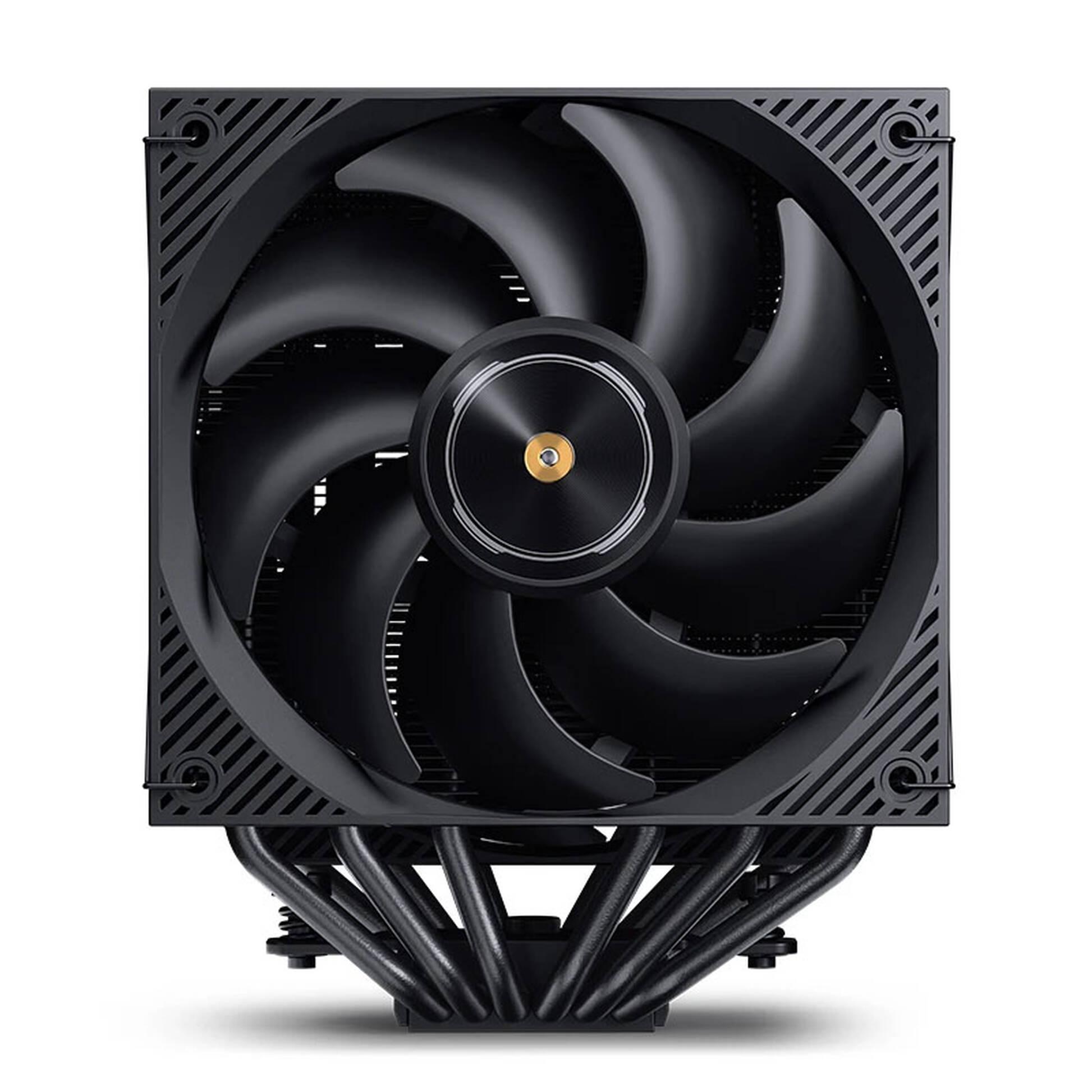

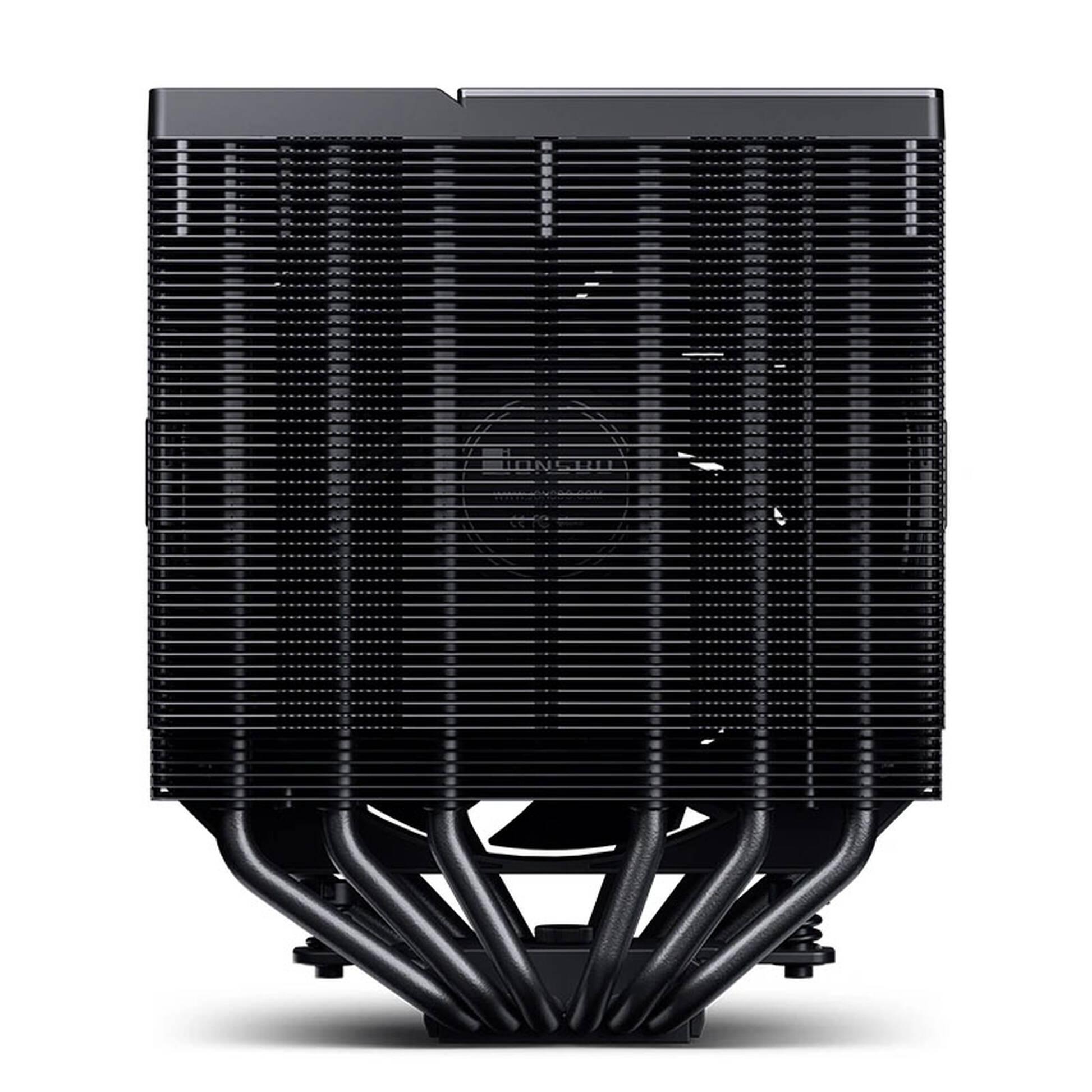

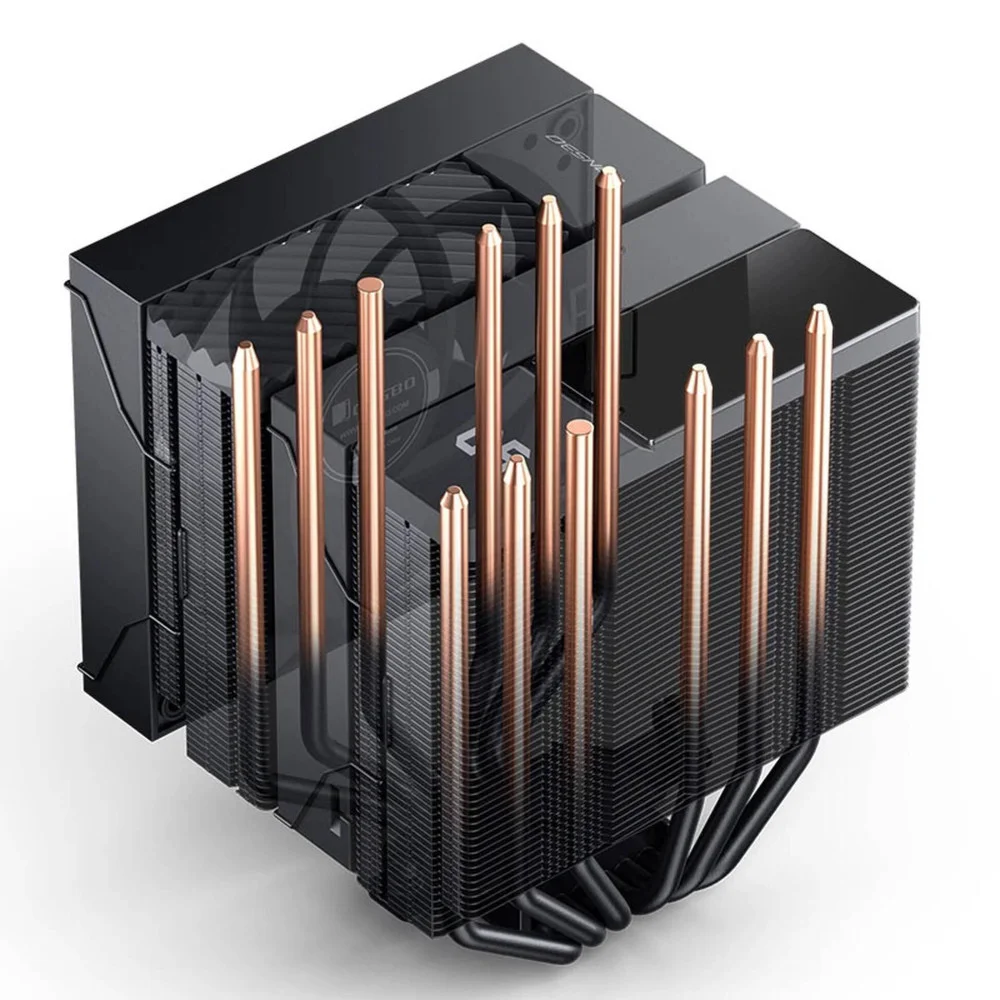

Jonsbo CC90 Dual Tower 130mm Display CPU Cooler - Black
- Cooling type
- Air
- Included fans
- 1 x 130 mm PWM fan; 1 x 120 mm PWM fan
- RGB
- No
- Height (mm)
- 158 mm

Description
Jonsbo CC90 is an air cooler for processors with a dual tower design and two PWM fans, aimed at mid-range to high-end configurations, including more serious gaming builds. It supports both modern LGA 1851 and LGA 1700, as well as AM4/AM5, making it a good choice if you plan to upgrade your platform. The cooling capacity of up to 285 W is more than sufficient for powerful CPUs, as long as there is no serious overclocking. The built-in 130 mm and 120 mm PWM fans provide a balance between low noise and stable temperatures.

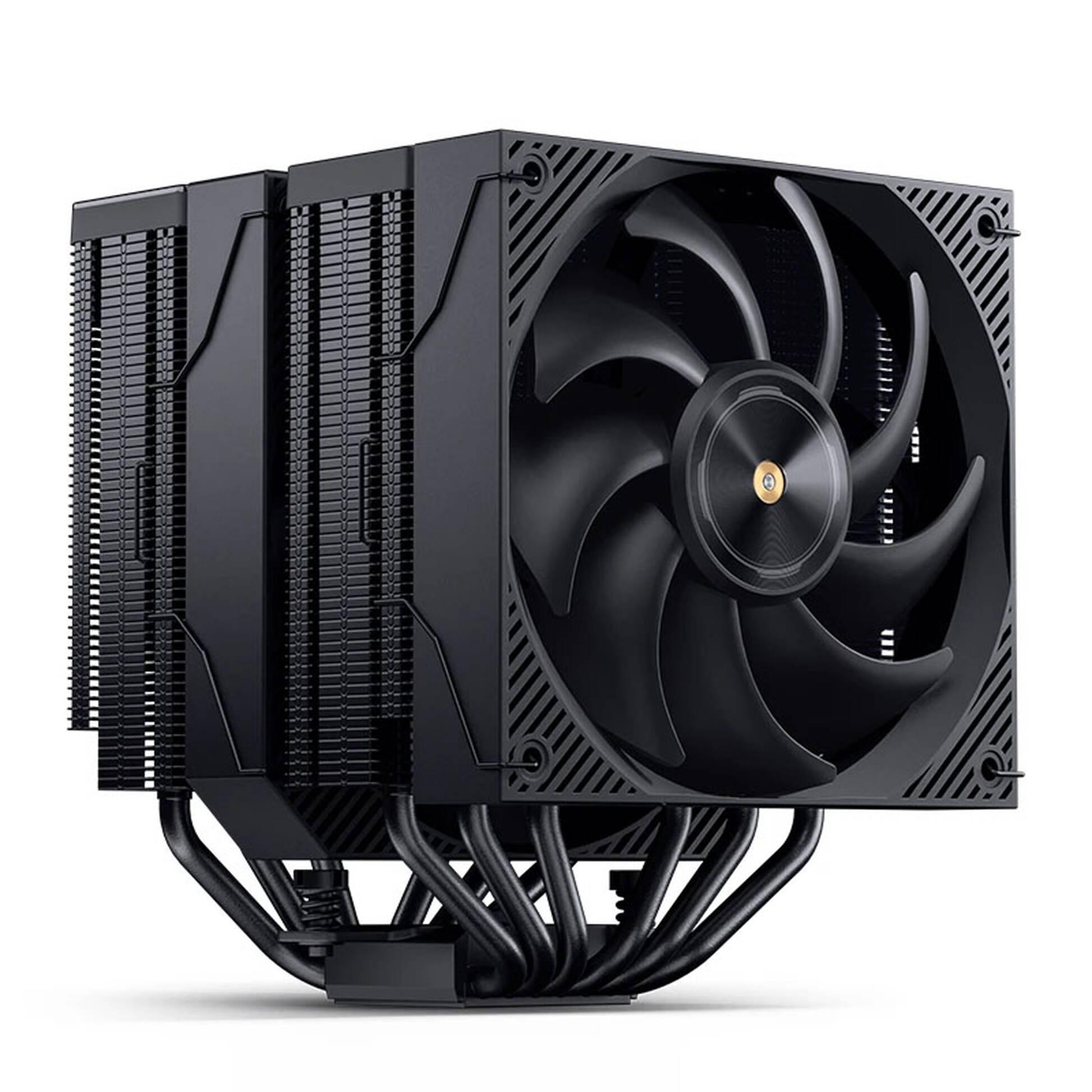

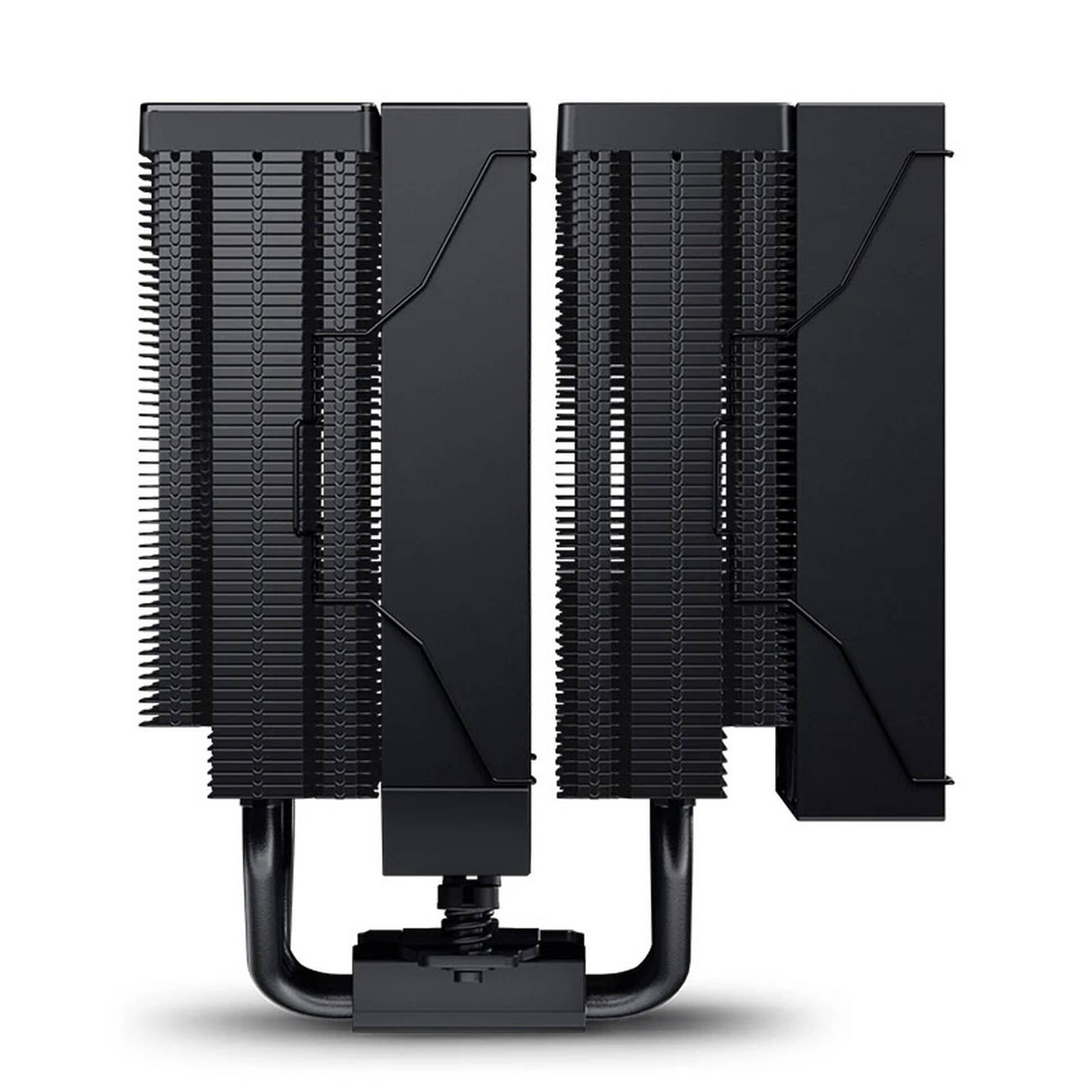

What you get is a serious air cooler that can handle up to 285 W of heat, so it can easily keep multi-core processors under control during gaming and work loads. The dual tower construction with two fans – 1 x 130 mm and 1 x 120 mm PWM – creates an effective air tunnel through the radiator, improving heat dissipation under higher load. The speed range of 700 – 2050 RPM gives you a wide range – from quiet mode under light load to aggressive airflow during rendering or long gaming sessions. With a flow rate of up to 81 CFM and static pressure of up to 3.0 mmH2O, the fans perform well even with denser radiator fins. The noise level in the range of 14.1 – 37.6 dB(A) means that during normal operation the system remains relatively quiet, and at full speed you know you are getting maximum cooling.
- Air cooling with dual tower design and capacity up to 285 W, suitable for powerful CPUs without excessive overclocking.
- Compatibility with multiple sockets – LGA 1851, LGA 1700, LGA 1200, LGA 1151, LGA 1150, LGA 1156, LGA 1155, AM4, AM5, which facilitates future upgrades.
- A combination of 1 x 130 mm and 1 x 120 mm PWM fan provides a good balance between airflow and coverage of the entire radiator.
- A wide RPM range of 700 – 2050 RPM allows you to set profiles from nearly silent operation to maximum performance.
- Maximum airflow of up to 81 CFM helps quickly expel warm air from the radiator and case.
- Static pressure of up to 3.0 mmH2O is beneficial for denser radiator packs and improves actual cooling performance.
- Noise level between 14.1 – 37.6 dB(A), so in idle and light tasks the cooler remains discreet, while under load it prioritizes low temperatures.
This cooler is suitable if you are building a gaming or workstation machine with a more serious CPU and are looking for stable air cooling instead of a more complex AIO. It is suitable for 1080p/1440p gaming builds, workstations, and general-purpose systems where you seek a combination of quiet operation in idle and good performance under load. If you aim for extreme overclocking or a completely silent build, you should rather look towards other solutions.
The strength of Jonsbo CC90 lies in the combination of 285 W cooling capacity, wide socket compatibility, and two PWM fans with high airflow and controllable noise. If you want a reliable air cooler for a serious CPU without delving into the complexity of water cooling, this model fits well.
Full specifications
- Manufacturer
-
Jonsbo
- Product code
- CPJB-091
- Cooling type
- Air
- Fan Size
-
130 x 130 x 25.5 mm130 x 120 x 25 mm
- Included fans
-
1 x 130 mm PWM fan1 x 120 mm PWM fan
- Fan connector
- 4-pin PWM
- Rotation speed
- 700 – 2050 RPM
- Airflow (CFM)
- 81 CFM
- NOISE LEVEL
- 14.1 – 37.6 dB(A)
- Max. pressure (mm H2O)
- up to 3.0 mmH2O
- Cooling capacity
- 285 W
- RGB
-
No
- Voltage
- 12 V DC
- Fan speed
- 700 – 2050 RPM
- Power (W)
-
2.16 W (max. 3.0 W) per fanLED 1.5 W (120 mm fan)
- MTBF (hours of operation)
- ≥ 50,000 hours @ 40°C, 15–65% RH
- Others
-

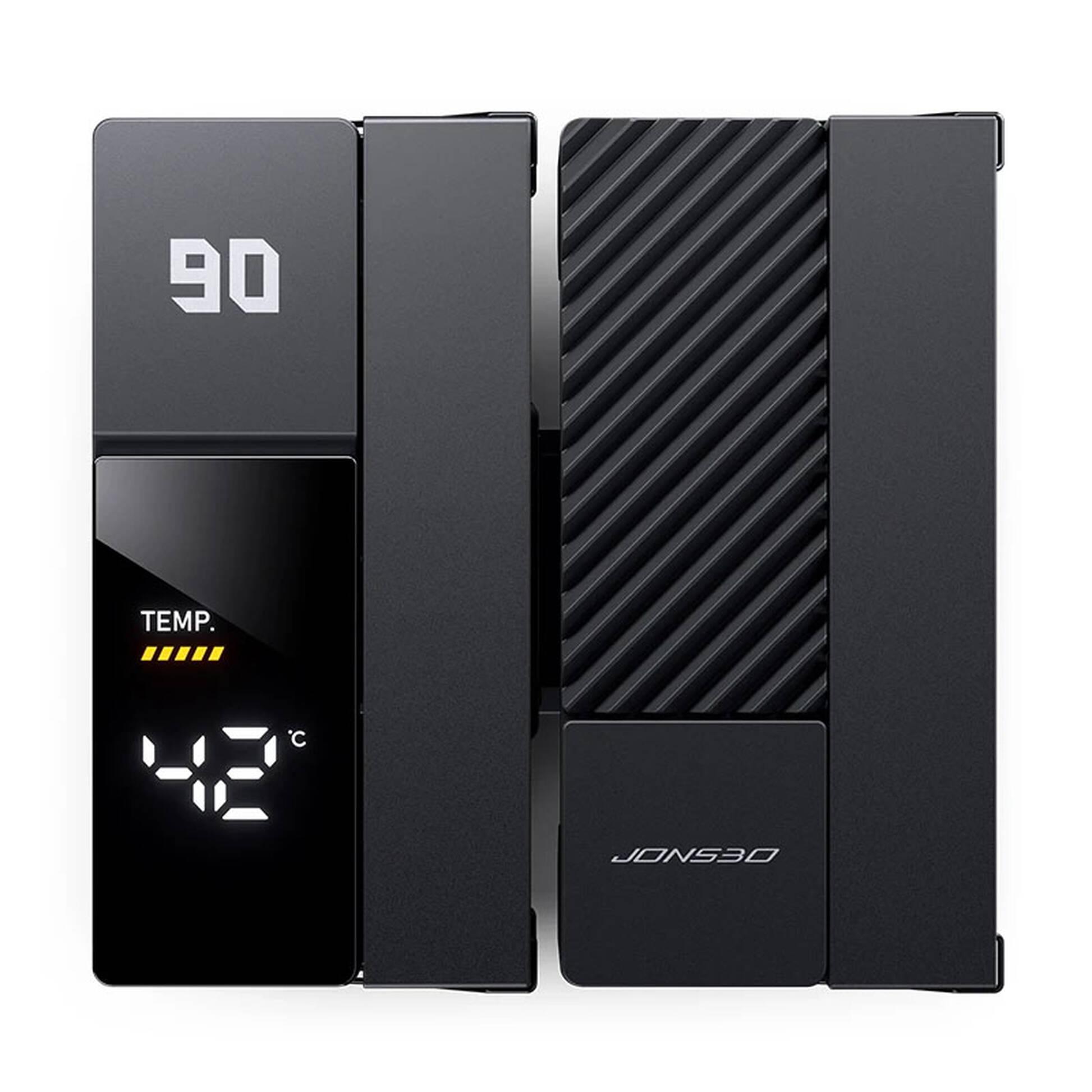

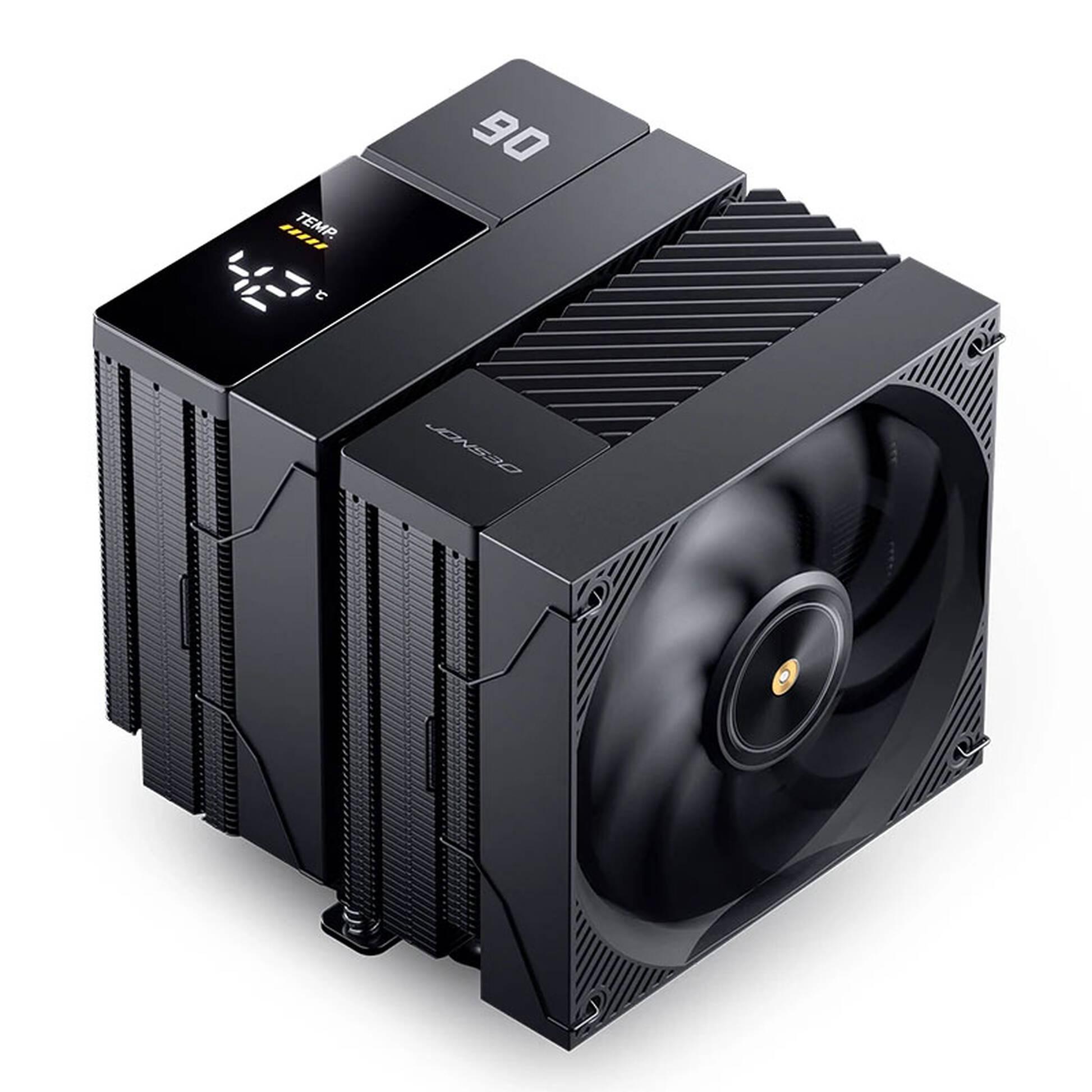

Dual tower designSegment display for monitoring
- Dimensions (mm)
- 135 x 130 x 158 mm
- Material
-

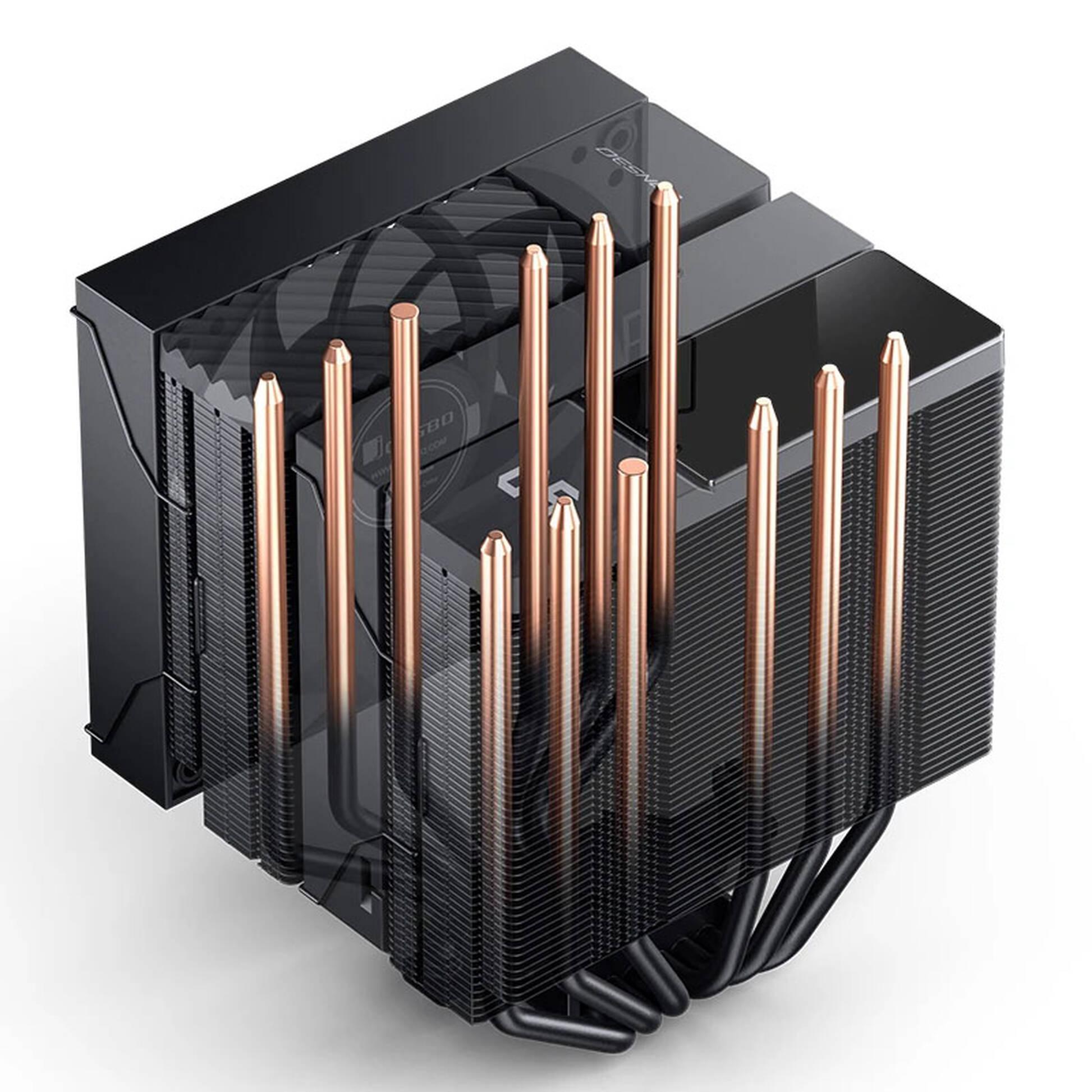

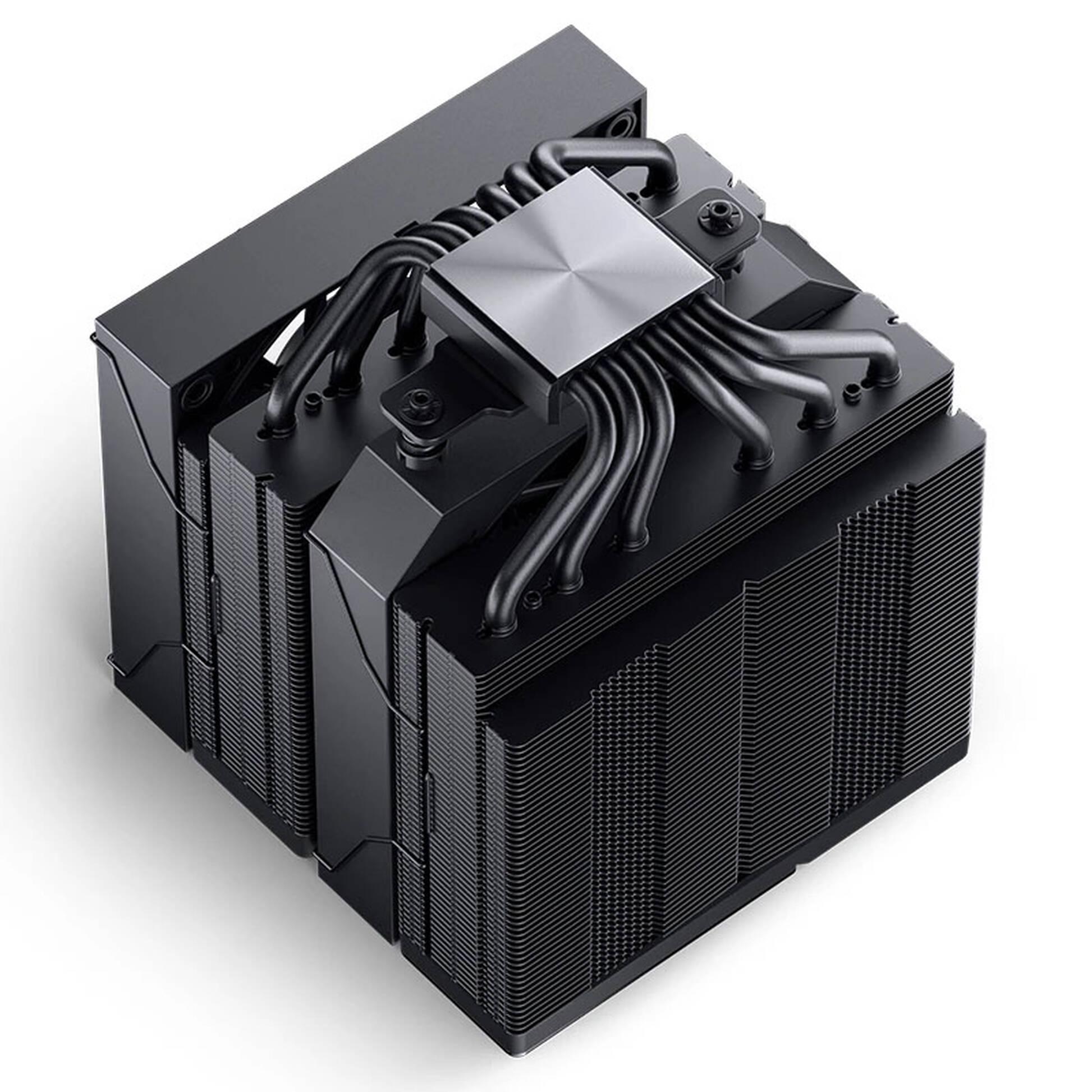

Aluminum cooling finsCopper heat pipes with nickel platingCNC-machined copper base
- Height (mm)
-
158
- Warranty
- 36 months
- DIAMETER OF TUBES
- 6 mm
- Color
-
Black
- X-CASE 1
- Dual Tower CPU air cooler
- X-CASE 2
- Max. TDP 285 W
- X-CASE 3
- 6 x 6 mm heatpipe tubes
- X-CASE 6
- Height 158 mm – compatible with most cases
- CPU socket
-
LGA 1851LGA 1700LGA 1200LGA 1151LGA 1150LGA 1156LGA 1155AM4AM5
- Fan information
-
2 x PWM fans (1 x 130 mm, 1 x 120 mm)700–2050 RPM maximumAirflow up to 81 CFMPressure up to 3.0 mmH2ONoise up to 37.1 dB(A)4-pin PWM connectors
- Content
-
CPU cooler Jonsbo CC90130 x 130 x 25.5 mm internal fan130 x 120 x 25 mm external fanMounting skeleton/bracketIntel backplateMounting screws for LGA1200/115XMounting screws for LGA1851/1700AMD spacers and screws for AM4/AM5Cable clipsY-cable 1-to-2 for fansInternal USB 2.0 9-pin extensionThermal paste TG-7SpatulaInstallation/user manual
