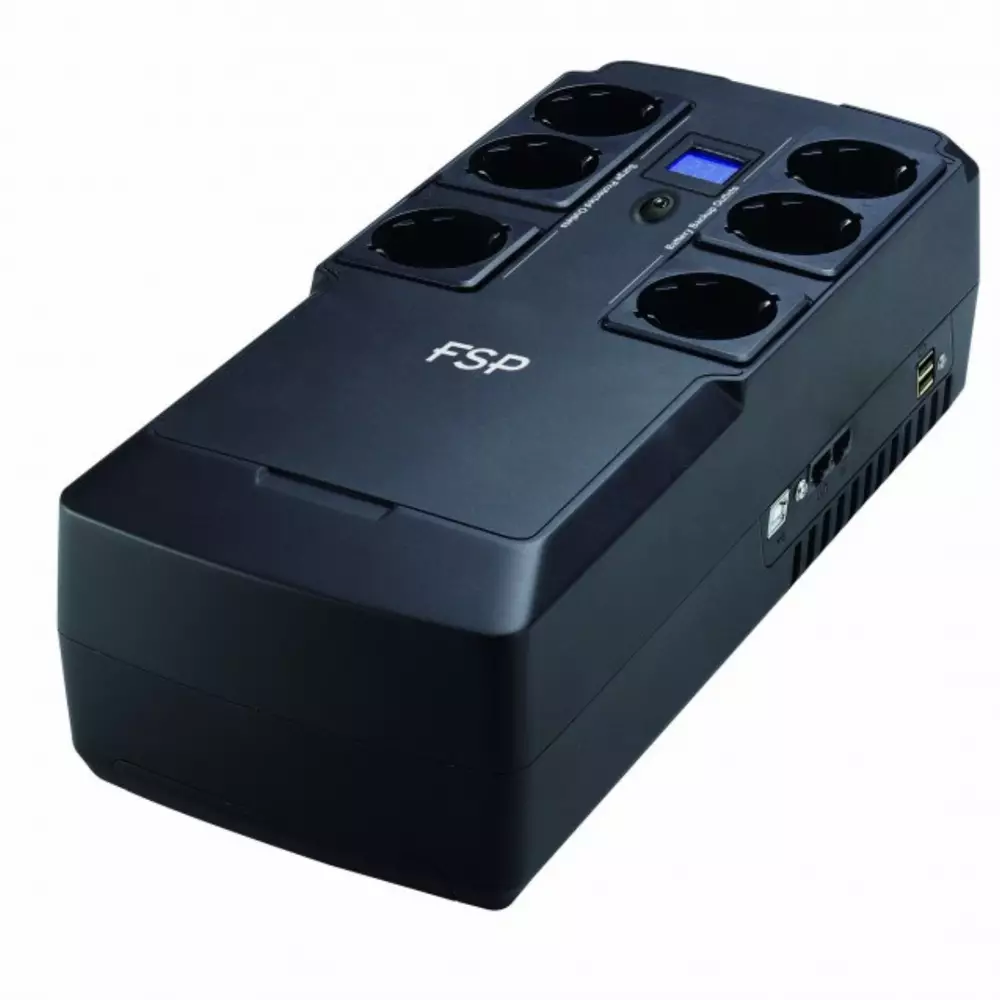

UPS FSP Group NANO FIT 600
- TYPE
- Linear-interactive
- Capacity
- 600 VA
- Capacity
- 600 VA / 360 W
- Control panel
- without LCD
- Output voltage shape
- Simulated sine wave
Description
FSP Group NANO FIT 600 is a compact line-interactive UPS, aimed at home and small office configurations where you need basic but meaningful protection against power outages and fluctuations. With a capacity of 600VA / 360W, it can easily handle a desktop computer with a monitor and peripherals or several smaller devices. The six Schuko outlets give you the flexibility to connect everything important – router, NAS, console, chargers. Without an LCD, but with a clear LED indicator, NANO FIT 600 is simple to use and requires no settings.
What you get
This UPS focuses on stable power supply and quick switching during problems. It operates with an input voltage in a wide range of 180–270 Vac, which protects your equipment during drops and peaks in the grid without immediately switching to battery. When this does happen, a 12V / 4.5Ah battery takes over the load and provides a simulated sine wave, fully sufficient for standard PC configurations, routers, and other office equipment. The switching time is typically 2–6 ms (maximum 10 ms), so your computer won't notice the interruption. The battery charges to about 90% in 8 hours, which is convenient for daily use and frequent short power outages.
- Line-interactive type UPS with a capacity of 600VA / 360W, suitable for home and small office systems with moderate load.
- Wide input range 180–270 Vac with automatic recognition of 50/60Hz, which reduces unnecessary battery switching and protects electronics during fluctuations.
- Six Schuko outlets, allowing you to protect a computer, monitor, router, console, and other peripherals from sudden power outages simultaneously.
- One 12V / 4.5Ah battery with a typical recharge time of 8 hours to 90%, optimized for short to medium interruptions.
- Output voltage 220/230/240 Vac with regulation in battery mode ±10% and frequency 50/60Hz ±1Hz, providing stable power for sensitive equipment.
- Simulated sine wave in battery mode and switching time 2–6 ms (max. 10 ms), sufficient for standard PSUs and office equipment.
- LED indication: green in line mode, yellow flashing when running on battery, and red in case of error, plus audible alarms at different intervals for battery, low battery, overload, and fault.
- Full protection against overload, discharge, and overcharge, operation in humidity 0–90% RH and low noise below 40 dB, suitable for desk or living room.
- Compact and lightweight body in black color with dimensions 305 x 158.5 x 95 mm and weight of only 2.6 kg, easy to position next to or under the desk.
Who it is suitable for
This UPS is a good choice if you want protection for a desktop computer, router, modem, and additional peripherals without entering more expensive rack or online solutions. It is suitable for home office, gaming on one PC, small office, or just to keep your internet running during power outages. It is not suitable if you plan to power a heavy server, large laser printers, or multiple powerful devices over a total of 360W.
The combination of 600VA capacity, 6 Schuko outlets, and clear visual/audible indications makes FSP NANO FIT 600 a practical and well-balanced option for protecting your most important equipment at home or in the office.
Full specifications
- Manufacturer
-
FSP Group
- Manufacturer code:
- PPF3602301
- Warranty
- 24 months
- TYPE
- Linear-interactive
- Capacity
- 600 VA / 360 W; 600 VA
- Output connectors
-
6x schuko
- Battery model
- 12V / 4.5Ah
- Software
- UPS monitoring software
- Control panel
- without LCD
- Runtime
-
<1 min at 100% load~5 min at 50% load
- Output voltage shape
- Simulated sine wave
- Input voltage
- 220/230/240 Vac, allowable range 180–270 Vac
- Input connectors
- Fixed power cable with plug EF CEE 7/7
- Surge protection
-
Full Protection: Overload, discharge, and overcharge protectionHumidity:0-90 % RH @ 0- 40°C (non-condensing)Noise Level:Less than 40dB.
- Type sizes
- 305 × 158.5 × 95 mm
- Number of batteries
- 1
- Input frequency
- 50/60 Hz, auto-detection
- Output frequency
- 50 Hz or 60 Hz ±1 Hz (in battery mode)
- Connection slots
-
1× USB Type-B communication port2× RJ45 for data line
- Charging time
- ~8 hours to 90% of capacity
- Noise
- <40 dB
- Output voltage
- 220/230/240 Vac, regulation ±10% in battery mode
- Alarm
-
Battery Mode: Beeps every 10 secondsLow Battery: Beeps every secondOverload: Beeps every 0.5 secondFault: Continuously beeping.
- Sound signaling
- Built-in buzzer with different beep frequencies according to state (battery, low battery, overload, fault)
- Outputs
-
6× AC Schuko outputs2× USB-A charging ports 5V / 1A (max.)
- Color
- Black
- Overload protection
- Yes – overload protection
- Weight (kg)
- 2.6
- Model
- NANO FIT 600
- Standards
-
CERoHS
- Dimensions
- 305 x 158.5 x 95 mm
- Display
- Line Mode: Green lighting; Battery Mode: Yellow flashing; Fault: Red lighting.
- Battery
-
Battery Type & Number:12V / 4.5Ah x 1Typical Recharge Time: 8 hours recover to 90% capacity.
- Design
-
Compact, multi-outlet form factor with 6 Schuko outputsOption for desktop use or wall mounting
- Noise level
- <40 dB
- Interface
- USB Type B
- Weight (kg)
- 2.6
- Others
-
Compact chassis for desktop or wall mountingCold start from batteryAuto restart upon network recoveryCE and RoHS compliance0–90% RH @ 0–40°C, non-condensing
