SEASONIC Prime Ultra Gold SSR-1000GD 1000W 80+ Gold Power Supply

SEASONIC Prime Ultra Gold SSR-1000GD 1000W 80+ Gold Power Supply

Name: SEASONIC Prime Ultra Gold SSR-1000GD 1000W 80+ Gold Power Supply
Brand: Seasonic
SKU: 19706
Price: 184.14 EUR
Availability: OutOfStock

Code: 19706

☆☆☆☆☆ 0 reviews

184.14 €

Earn 184 points

Out of stock

Notify me when available

We will send you an email as soon as the product is back in stock.

✅ Done! We will write to you as soon as it is available.

Power supply unit power (W): 1000 W
Certificate: 80+ Gold
Format: ATX
Modular power supply: Yes
PSU length (mm): 150 mm

View all specifications

Full specifications

Manufacturer: Seasonic
Product Code: SSR-1000GD
Power supply unit power (W): 1000
Certificate: 80+ Gold
Power supply: 100 - 240 VAC
Format: ATX
Efficiency: 90% at 50% load
Fan: FDB Fan, 135 mm
Modular power supply: Yes
Input voltage: Voltage: 100 V - 240 V
Current: 11 - 5.5 A
Frequency: 50 Hz - 60 Hz.
Output power: Total continuous power:1000W
Rail/Maximum Power: +3.3 V/25 A/125 W
+5 V/25 A/125 W
+12 V/83 A/996 W
-12 V/0.3 A/3.6 W
+5 VSB/3 A/15 W.
PFC type: Active
Color: Black
Others: Operating Temperature:50 °C
MTBF @ 25 °C, excl. fan:150,000 hours
AC Input:Full Range
Protection:OPP, OVP, UVP, OCP, OTP, SCP.
Weight: 2.08 kg
PSU length (mm): 150
Warranty: 96 months
Dimensions (mm): 150 x 170 x 86 mm

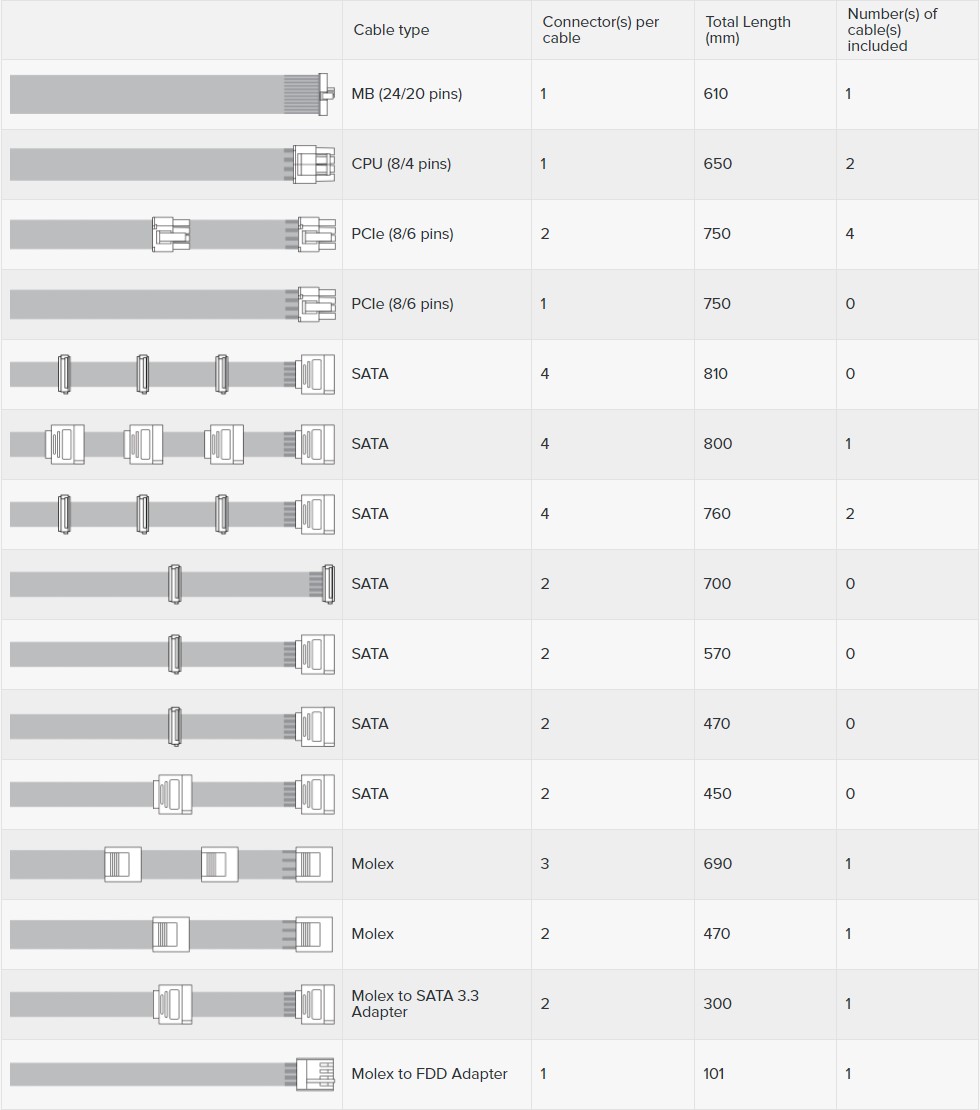

Connectors: ATX12V 24 Pin x 1:(610 mm - modular)
CPU 8 Pin x 2:(2x 4/8 Pin - 650 mm- modular)
PCI-E 2.0 x 8:(4x 6/8 Pin - 675 + 75 mm - modular)
S-ATA x 12:(3x 450 + 120 + 120 + 120 mm - modular)
Molex 4 Pin x 5:(1 x 400 + 120 + 120 mm - modular,1 x 350 + 120 mm - modular)
Floppy 4 Pin x 1:101 mm- modular - end connector of the Peripheral cable.
