Motherboard Gigabyte B850M EAGLE WIFI6E AM5

Gigabyte B850M EAGLE WIFI6E AM5 is a Micro ATX motherboard for mid-range to high-end AM5 builds, which comfortably supports both current and next-generation Ryzen. It supports AMD Ryzen 9000, 8000 and 7000 Series processors, so you have a direct upgrade path without changing the motherboard. It works with DDR5 memory up to 8200+ MHz (OC), and the built-in WiFi 6E, Bluetooth 5.3, and 2.5 GbE LAN cover the networking part without the need for additional cards. Despite the compact format, you get a serious set of M.2, SATA, and USB options.

What you get

The AM5 socket with AMD B850 chipset gives you flexibility – from Ryzen 7000 for a budget gaming build to Ryzen 9000 for more serious configurations. The four DDR5 slots with a maximum of 256 GB RAM and support for up to 8200+ MHz (OC) are more than enough for heavy multitasking and productivity. The two M.2 slots directly connected to the CPU allow for PCIe 5.0 SSD with Ryzen 9000/7000 and PCIe 4.0 SSD with Ryzen 8000, so you can use the fastest NVMe drives for OS and games. For storage arrays, you have 4 x SATA3 with RAID 0/1/5/10, which is convenient for a combination of fast NVMe + large HDD/SSD for archiving and media. The built-in WiFi 6E and 2.5GbE LAN give you the choice between a stable wired connection for low ping and a modern wireless network without buying external adapters.

• AM5 socket with AMD B850 chipset – ready for Ryzen™ 7000, 8000, and 9000 Series, with long platform life and options for future upgrades.
• 4 DDR5 slots with a capacity of up to 256 GB and frequencies up to 8200+ MHz (OC), allowing for both budget 2x16 builds and serious RAM configurations for work and streaming.
• Two M.2 slots to the CPU: one supports PCIe 5.0 x4/x2 SSD with Ryzen 9000/7000, and both operate on PCIe 4.0 with Ryzen 8000, giving you a fast OS disk and a second NVMe for games or projects.
• 1 x PCIe x16 slot from CPU, which reaches PCIe 5.0 x16 with Ryzen 9000/7000, providing full bandwidth for modern GPUs; a second PCIe 3.0 x4 slot from the chipset for an additional card.
• Built-in WiFi 6E (802.11ax) and Bluetooth 5.3, so you immediately have a fast wireless connection and peripherals without dongles.
• Realtek 2.5GbE LAN for higher bandwidth compared to standard 1 GbE – useful for large files, NAS, and local streaming.
• 4 x SATA3 6.0 Gb/s with RAID 0/1/5/10, allowing you to combine several drives for capacity, speed, or redundancy depending on needs.

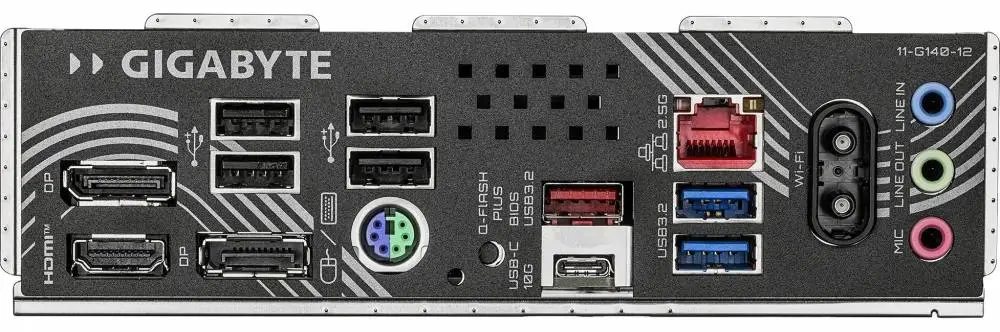

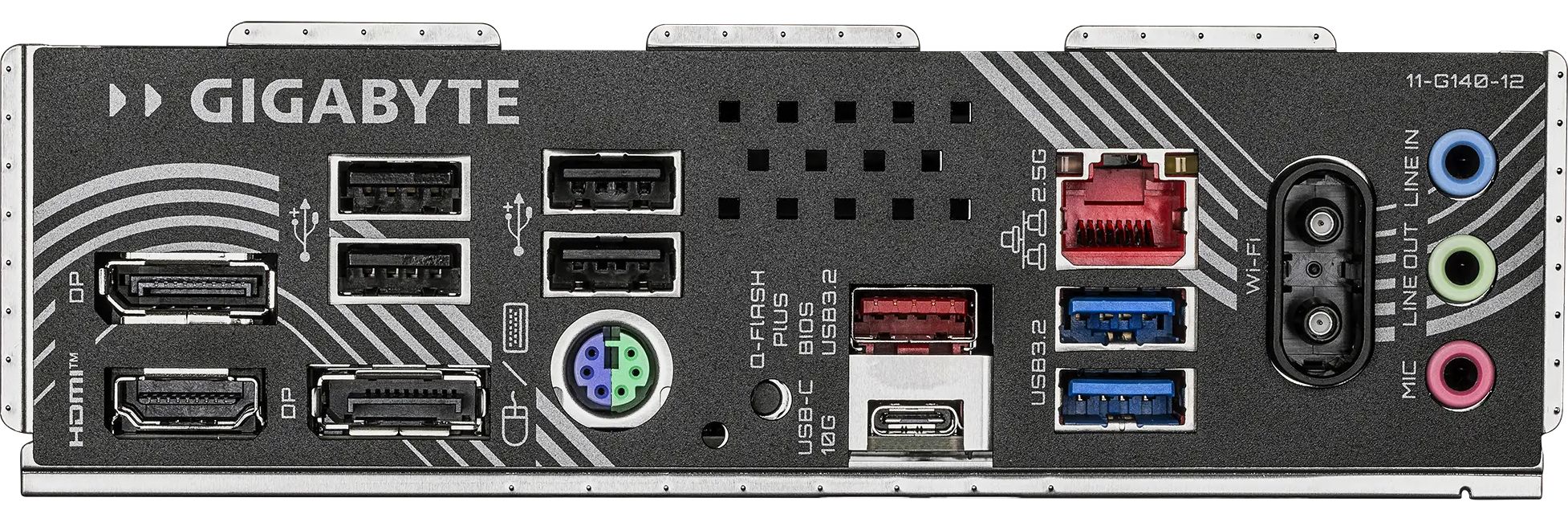

• Rich rear I/O: HDMI and 2 x DisplayPort for integrated video from Ryzen, USB 3.2 Gen 2 Type-A and Type-C®, plus multiple USB 3.2 Gen 1 and USB 2.0 ports for peripherals and external devices.
• Realtek High Definition Audio with support for 2/4/5.1/7.1-channel sound for gaming, movies, and voice communication without the need for a separate sound card.
• Power connectors 1 x 24-pin + 2 x 8-pin, providing stable power delivery to the CPU for more powerful chips and overclocking.

Who it is suitable for

This motherboard is a good choice for a 1080p/1440p gaming build, streaming configuration, or compact productivity PC, where you want DDR5, PCIe 5.0 for storage, and WiFi 6E in a Micro ATX format. It is also suitable if you plan to upgrade to a newer Ryzen later without changing the foundation. If you are chasing an extreme enthusiast build with maximum PCIe slots and additional M.2 positions, you might need a larger ATX motherboard.

The combination of AM5 + B850, fast DDR5 support, PCIe 5.0 M.2, and built-in WiFi 6E in a Micro ATX format makes Gigabyte B850M EAGLE WIFI6E AM5 a very balanced foundation for a modern and future-proof build.
