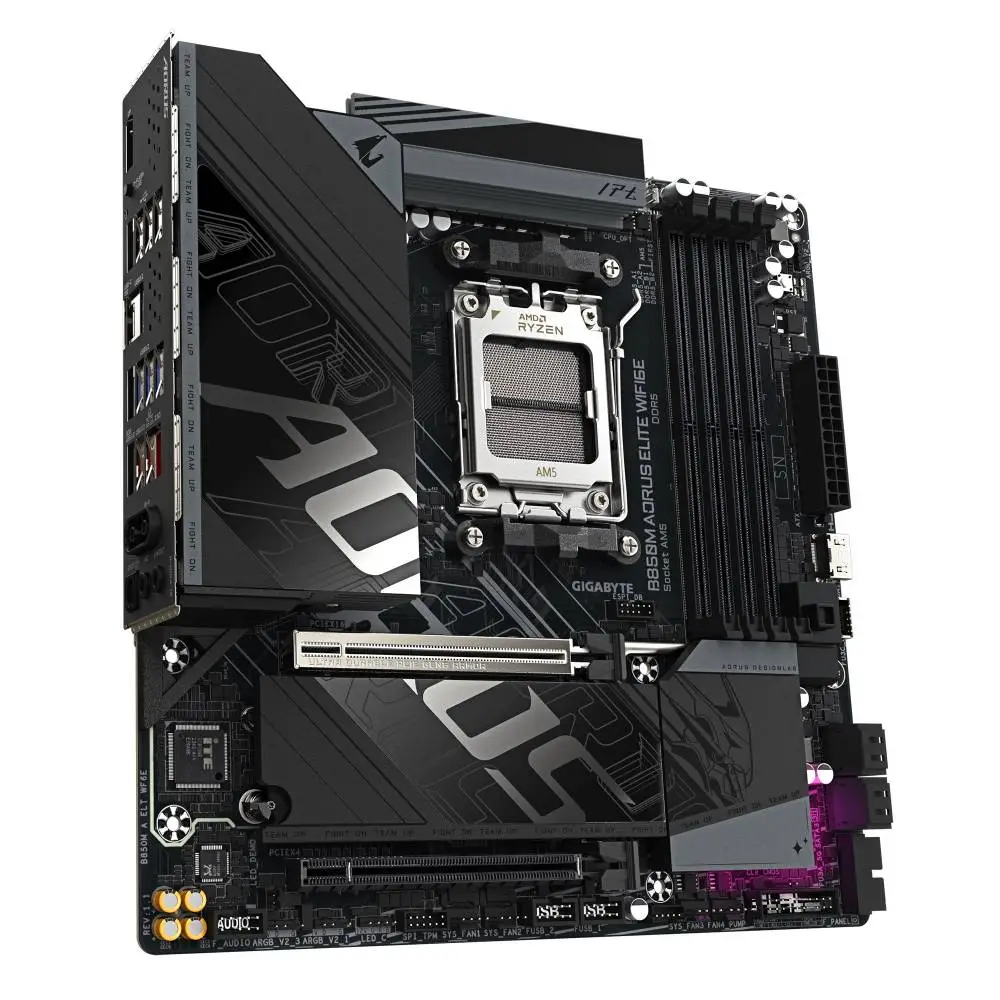

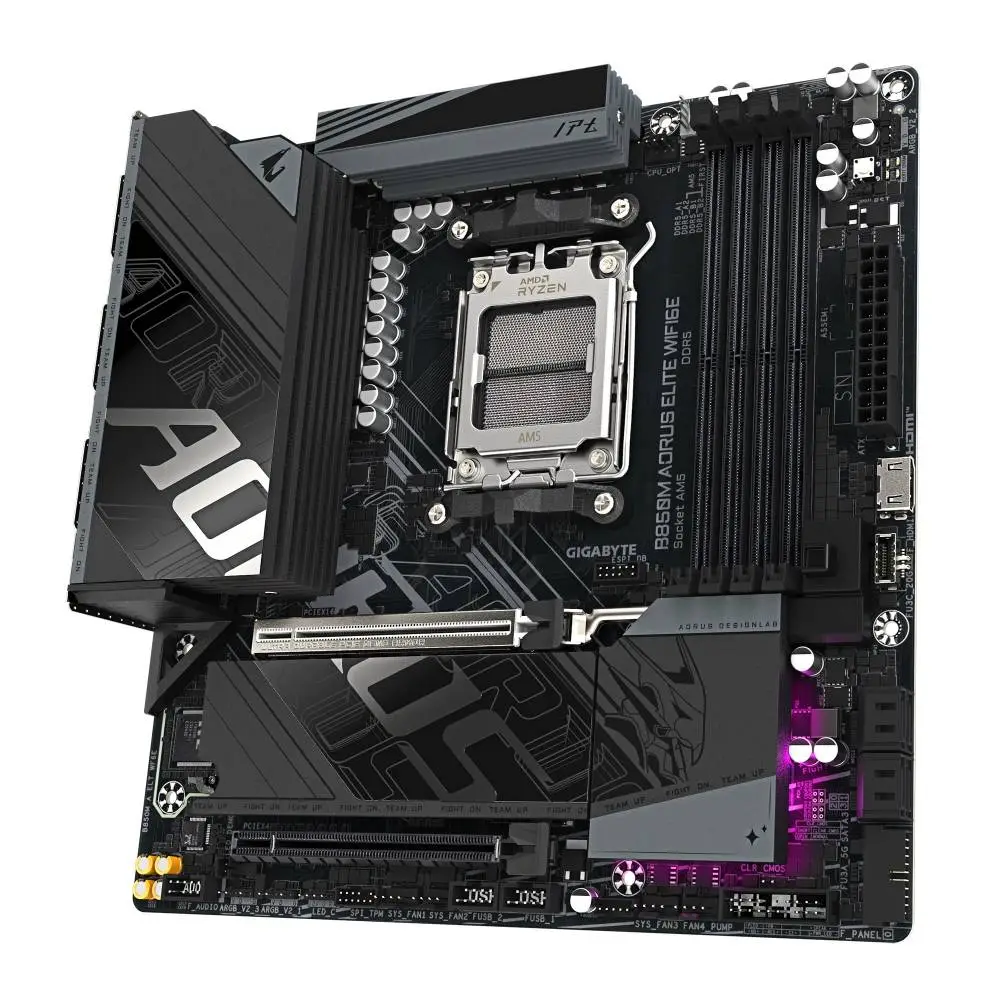

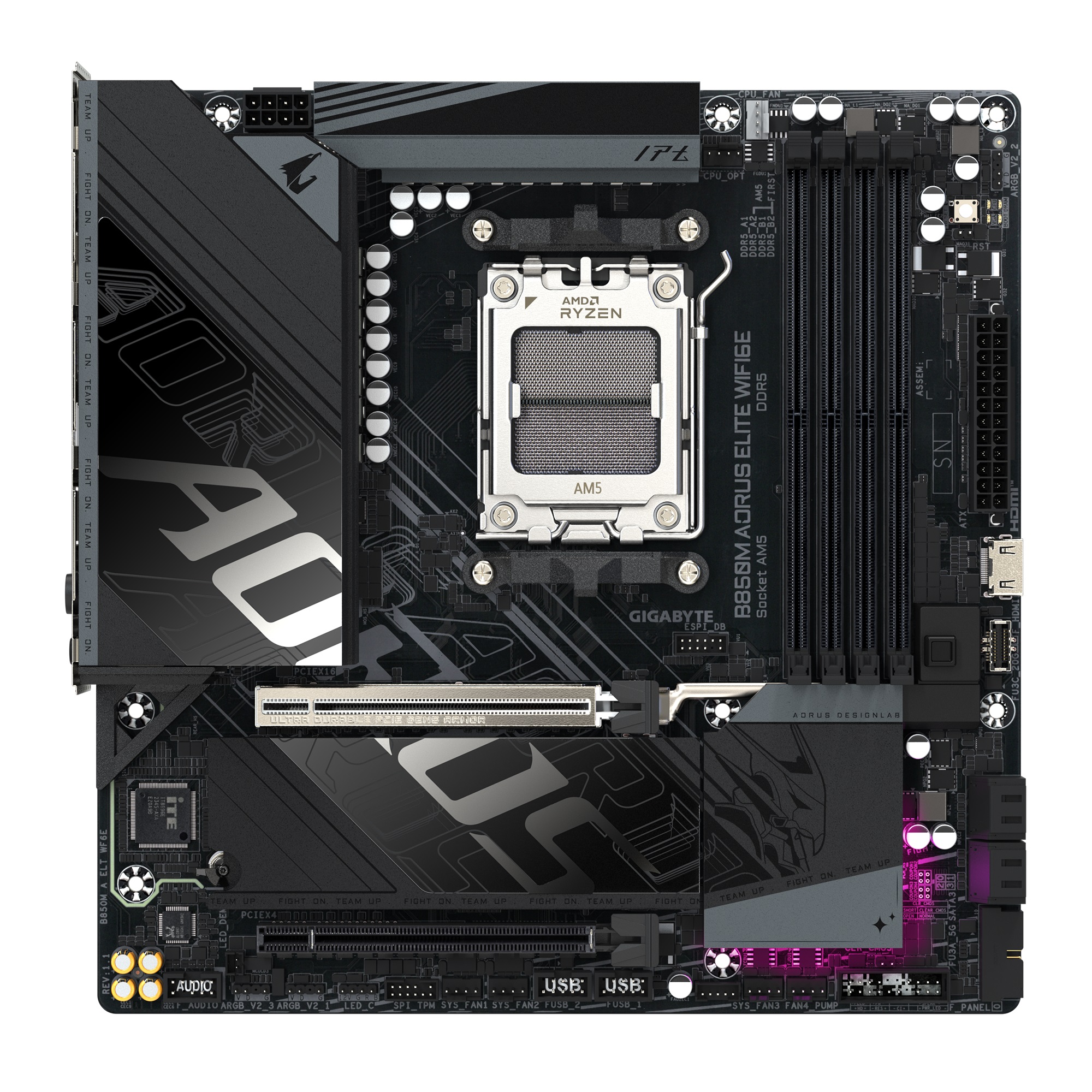

Дънна платка Gigabyte B850M AORUS ELITE WIFI6E

Name: Дънна платка Gigabyte B850M AORUS ELITE WIFI6E
Brand: Gigabyte
SKU: 57531
Price: 263.00 EUR
Availability: InStock

Код: 57531

☆☆☆☆☆ 0 ревюта

263.00 €

Спечели 263 точки

Доставка до 15 дни

Купи на изплащане

Любими

CPU сокет: AM5
Чипсет (MB): AMD B850 MB
Форм фактор: Micro ATX
Поддържана памет: DDR5
Брой слотове за памет: 4

Виж всички характеристики

Пълни характеристики

Производител: Gigabyte
Продуктов код: B850M A ELT WF6E
CPU сокет: AM5
Чипсет (MB): AMD B850
Форм фактор: Micro ATX
Поддържани процесори: Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Поддържана памет: DDR5
Брой слотове за памет: 4
Максимален капацитет RAM памет: 256 GB
Честота памет (MHz): до 8200+(OC)
Поддръжка на двуканална памет: Да
Вградено аудио: Realtek ALC1220
Realtek Audio CODEC (Only for rev. 1.0)
Вграден Wi-Fi: Wi-Fi 6E
Bluetooth версия: Bluetooth V5.3
Вграден LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Интерфейс SATA: 4 x SATA3 6.0 Gb/s
Поддръжка на RAID: 0,1,10
Разширителни слотове: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Chipset:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Конектор захранване: 1 x 24-pin
1 x 8-pin
Поколение процесор: 7-мо поколение
8-мо поколение
9-то поколение
Гаранция: 36 месеца
ОС: Support for Windows 10 and 11 64-bit
М2 слот: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
USB портове: CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers

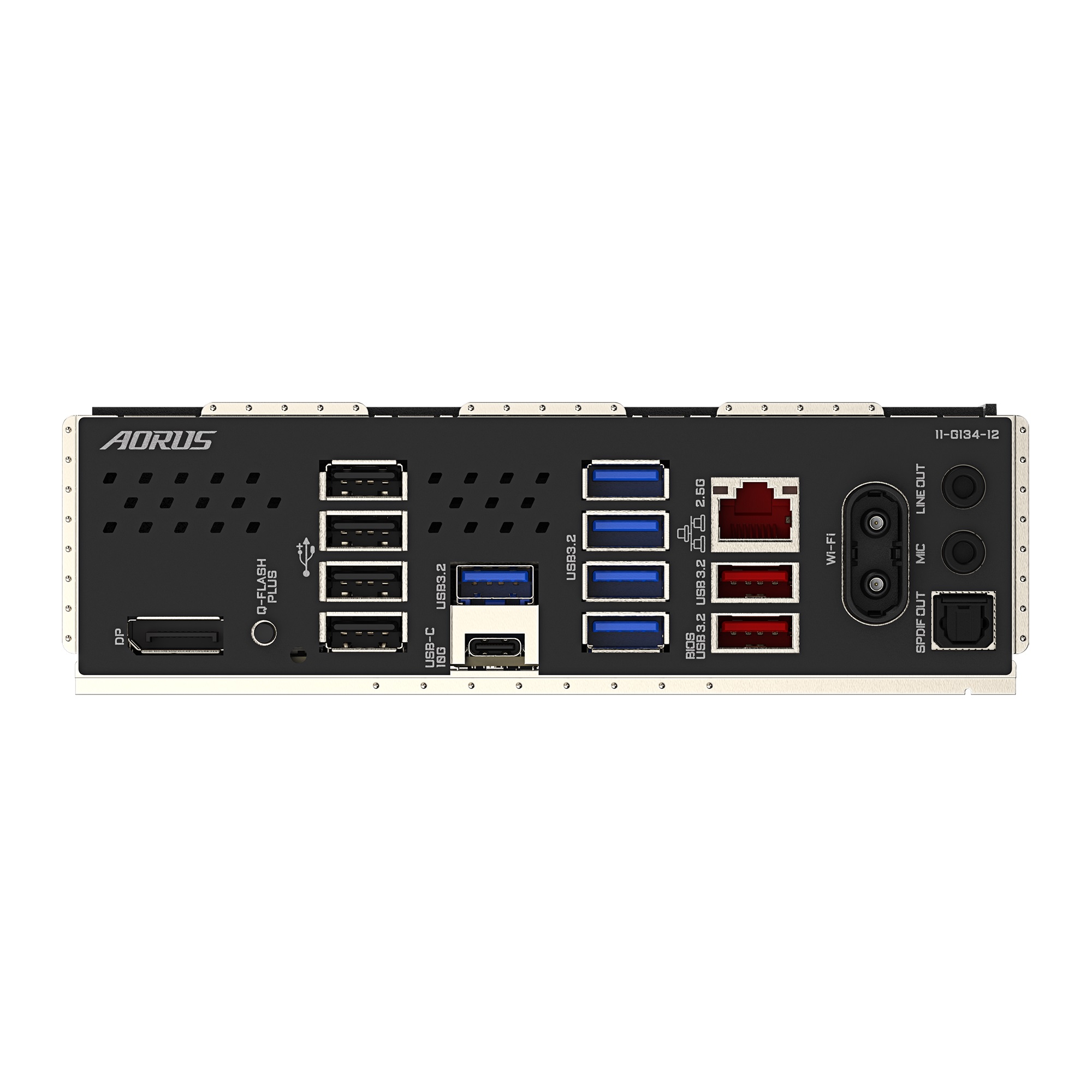

Заден I/O панел: 1 x DisplayPort (Note)
1 x Q-Flash Plus button
4 x USB 2.0/1.1 ports
5 x USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x RJ-45 port
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
