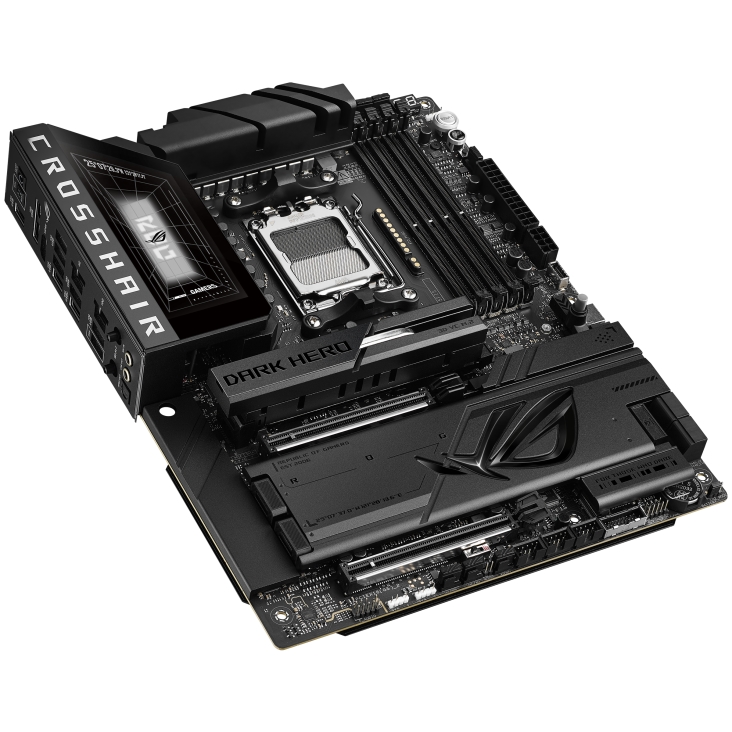

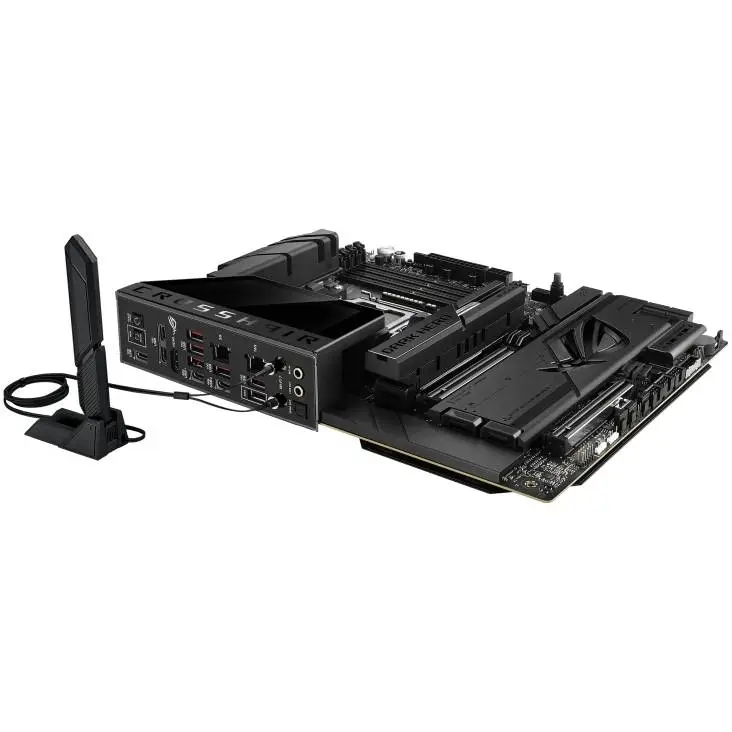

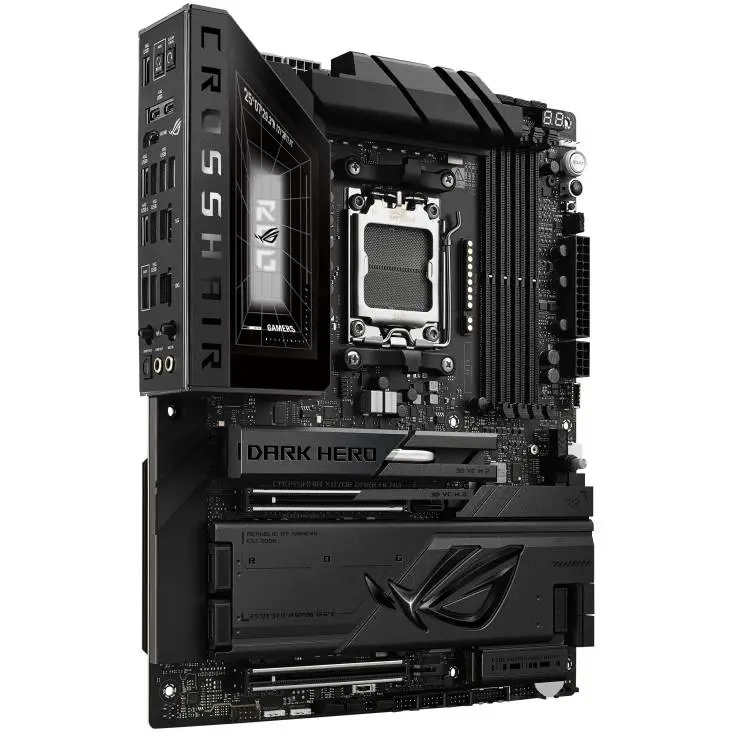

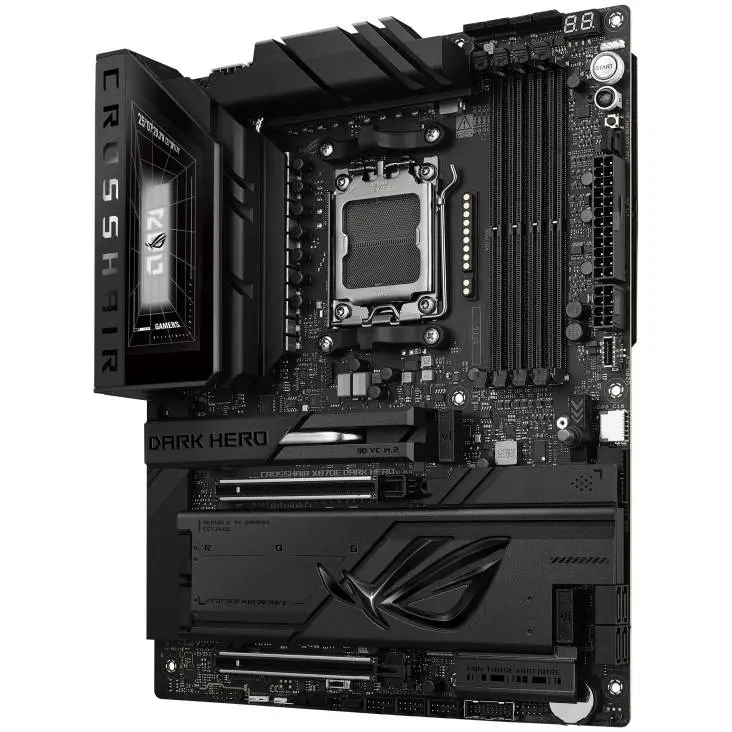

Дънна платка Asus ROG Crosshair X870E Dark Hero Wi-Fi - 90MB1NT0-M0EAY0
| Производител | ASUS |
| Продуктов код | 90MB1NT0-M0EAY0 |
| CPU сокет | AM5 |
| Чипсет (MB) | AMD X870E |
| Форм фактор | ATX |
| Поддържани процесори | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors ; AMD AM5 Ryzen |
| Поддържана памет | DDR5 |
| Брой слотове за памет | 4 |
| Максимален капацитет RAM памет | 256 GB |
| Честота памет (MHz) | до 9600+(OC) |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082, SupremeFX Shielding Technology, ESS ES9219 QUAD DAC, Gold-plated audio jacks ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 |
| Вграден Wi-Fi | Wi-Fi 7 (802.11be) |
| Bluetooth версия | Bluetooth V5.4 |
| Вграден LAN | 1 x Realtek 10Gb Ethernet 1 x Realtek 5Gb Ethernet ASUS LANGuard |
| Интерфейс SATA | 4 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0, 1, 5, 10 |
| М2 слот | 5 M.2 slots (Key M) Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)* AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)* AMD Ryzen™ 8500 & 8300 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) AMD X870E Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2230 (supports PCIe 4.0 x2 mode) |
| Разширителни слотове | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)** AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors* 2 x PCIe 4.0 x16 slots (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will run at PCIe 3.0 x4) AMD Ryzen™ 8500 & 8300 Series Desktop Processors* 2 x PCIe 4.0 x16 slots (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will run at PCIe 3.0 x4) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). * Specifications vary by CPU types. ** When PCIEX16_1 runs at PCIe 5.0 x16, PCIEX16_2 will run at PCIe 3.0 x4. The bandwidth can be altered in the BIOS. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported 2 PCIe 4.0 x16 slots |
| Конектор захранване | 1 x 8 pin 12V Power Connector 24-pin Main Power connector, 2 8-pin +12V CPU Power connector, 8-pin PCIe Power connector 1 x 24-pin 2 x 8-pin |
| USB портове | Rear USB (Total 11 ports) 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 9 x USB 10Gbps connector (6 x Type-A + 3 x USB Type-C®) Front USB (Total 12 ports) 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)** 1 x USB 20Gbps connector (supports USB Type-C®)* 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A **USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A |

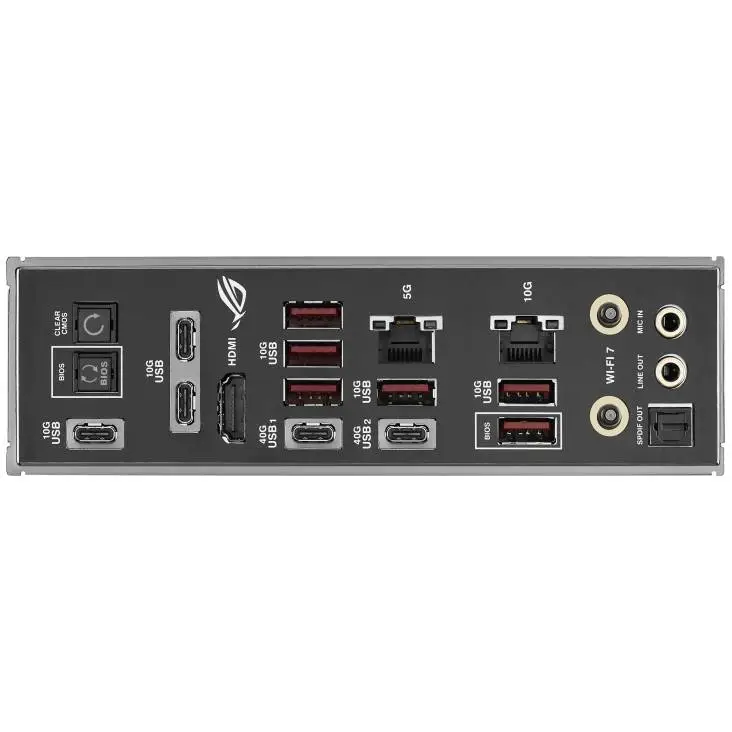

| Заден I/O панел | 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 9 x USB 10Gbps connector (6 x Type-A + 3 x USB Type-C®) 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 10Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button 2 USB4 (40Gbps) ports (2 x USB Type-C), 9 USB 10Gbps ports (6 x Type-A + 3 x USB Type-C), Wi-Fi Module x Realtek 10Gb Ethernet ports, 2 Gold-plated audio jacks |
| Bios | 512 Mb Flash ROM, UEFI AMI BIOS |
| OS | Windows 11 Windows 11 64-bit |
| Поколение процесор | 9-то поколение 8-мо поколение 7-мо поколение |
| Гаранция | 36 месеца |
| Поддържани технологии | ROG Exclusive Software, ASUS Exclusive Software |
