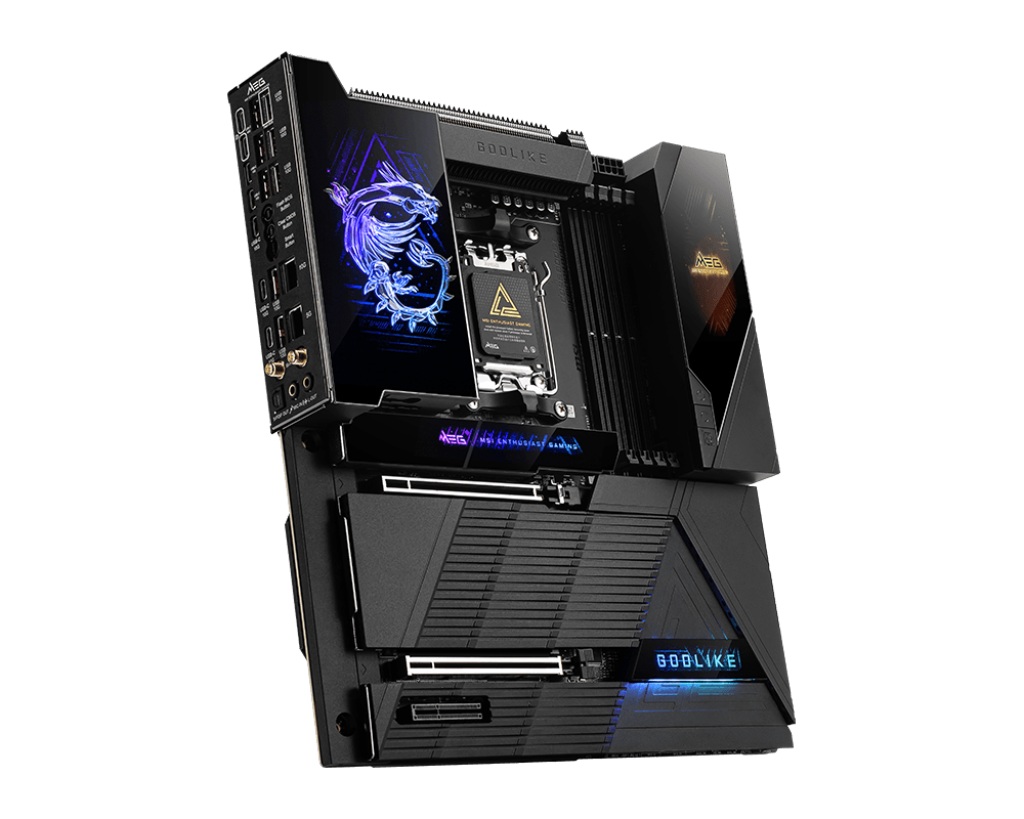

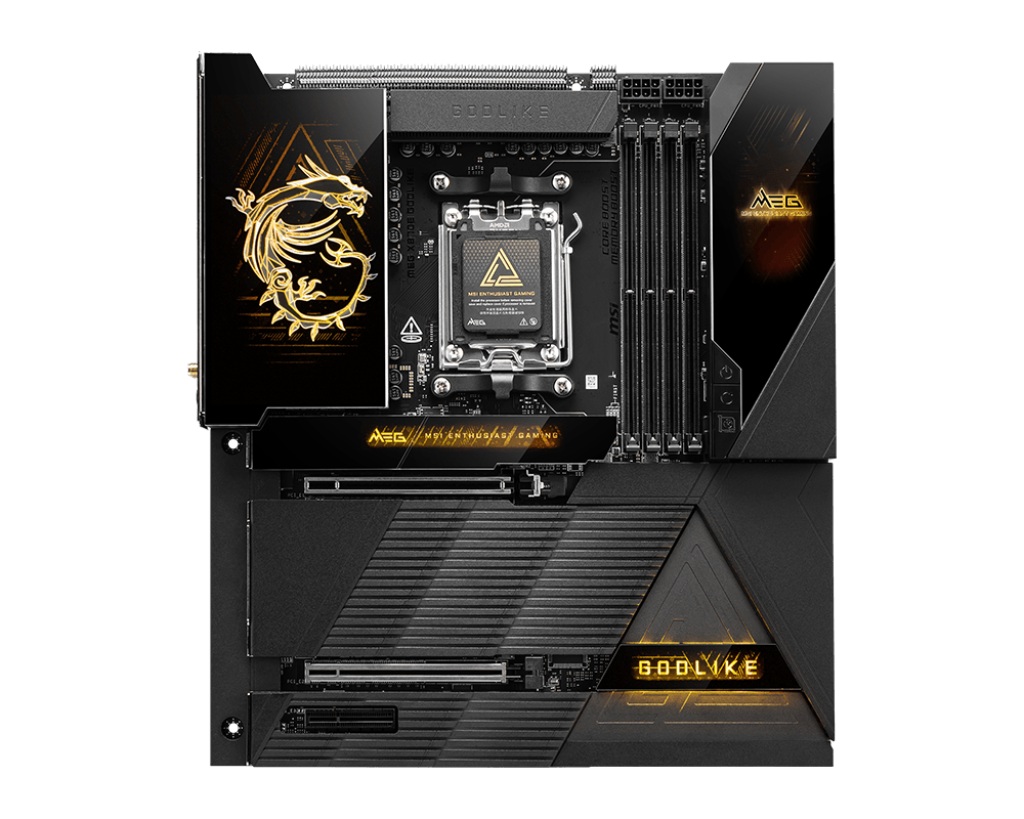

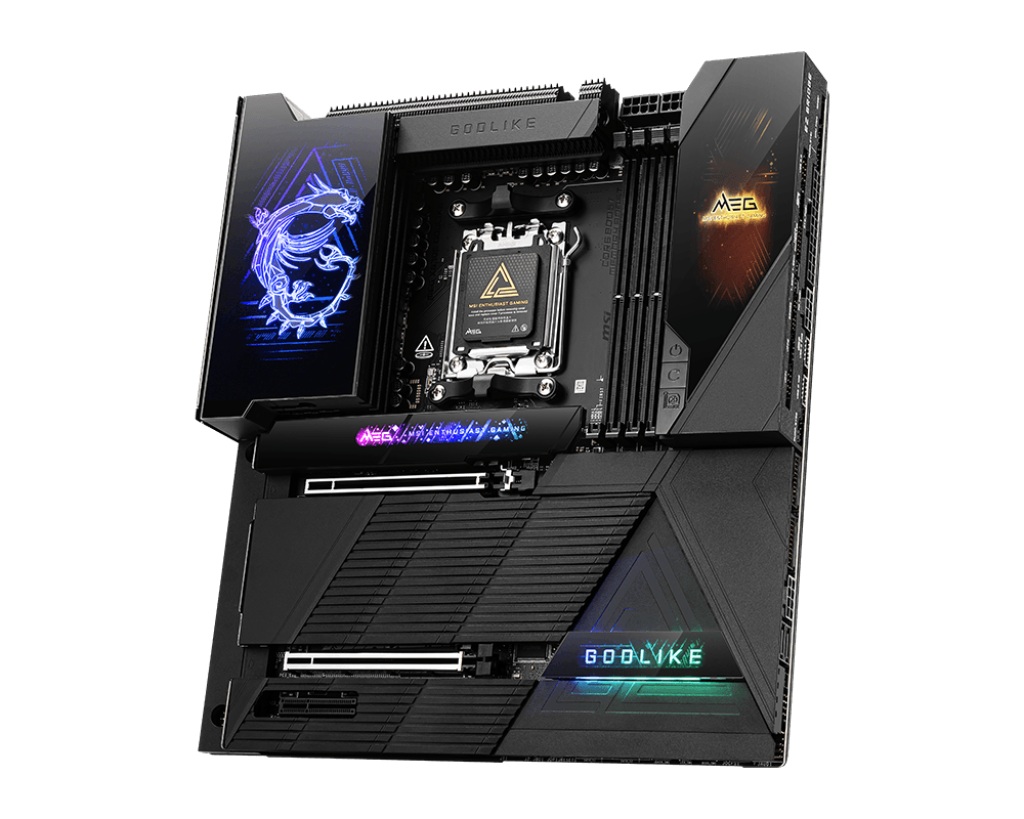

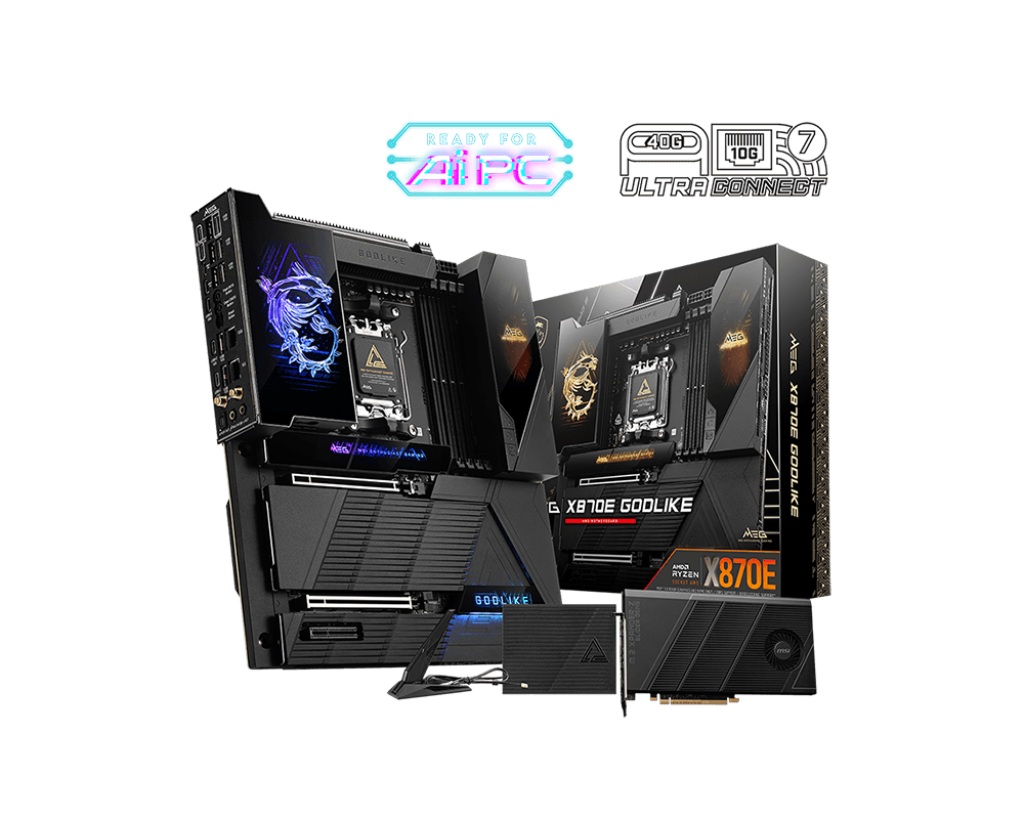

Дънна платка MSI MEG X870E GODLIKE
| Производител | MSI |
| CPU сокет | AM5 |
| Чипсет (MB) | AMD X870E |
| Форм фактор | Extended ATX |
| Поддържани процесори | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Поддържана памет | DDR5 |
| Брой слотове за памет | 4 |
| Максимален капацитет RAM памет | 256 GB |
| Честота памет (MHz) | до 9000(OC) MHz |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Вграден Wi-Fi | Wi-Fi 7 (802.11be) |
| Bluetooth версия | Bluetooth V5.4 |
| Вграден LAN | 1x Marvell® AQC113CS 10Gbps LAN 1x Realtek® 8126 5Gbps LAN |
| Интерфейс SATA | 4 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0, 1, 5, 10 |
| М2 слот | 7x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices |
| Разширителни слотове | 2x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 & PCI_E2 slots • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors) • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors) PCI_E3 slot • Supports up to PCIe 4.0 x4 * PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot. Please refer to the PCIe configuration table in the manual for more details. |
| Конектор захранване | 1 x 24-pin 2 x 8-pin 1 x 8 pin 12V Power Connector |
| USB портове | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 8x USB 10Gbps Type A (Rear) 5x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear) |

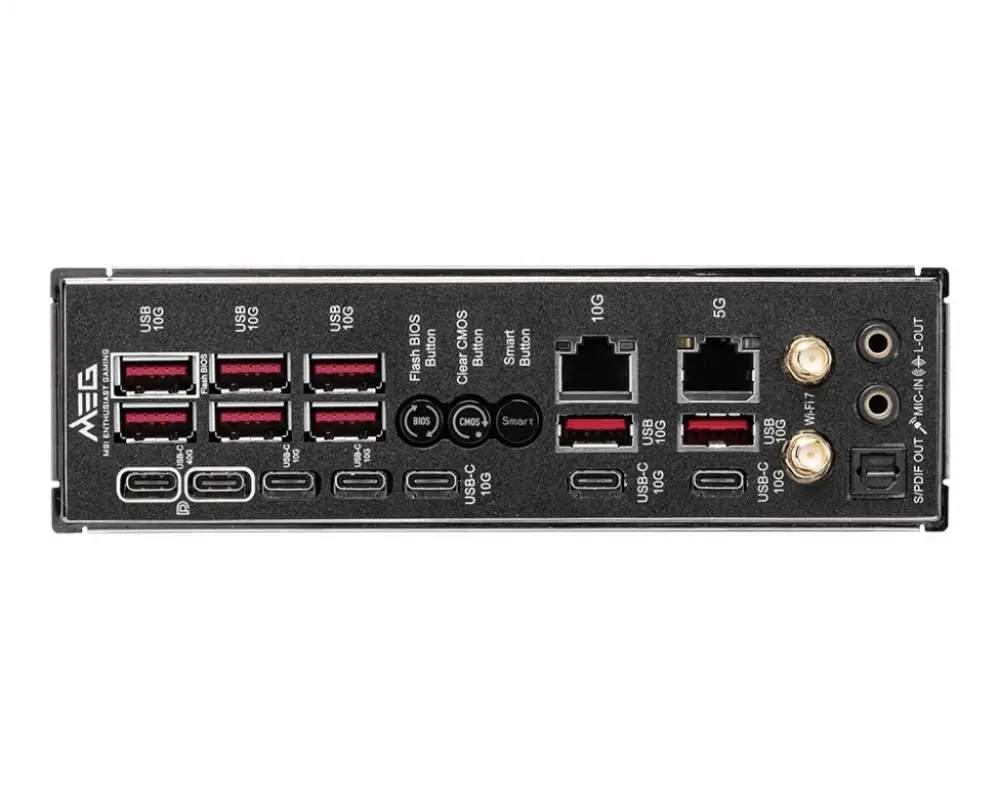

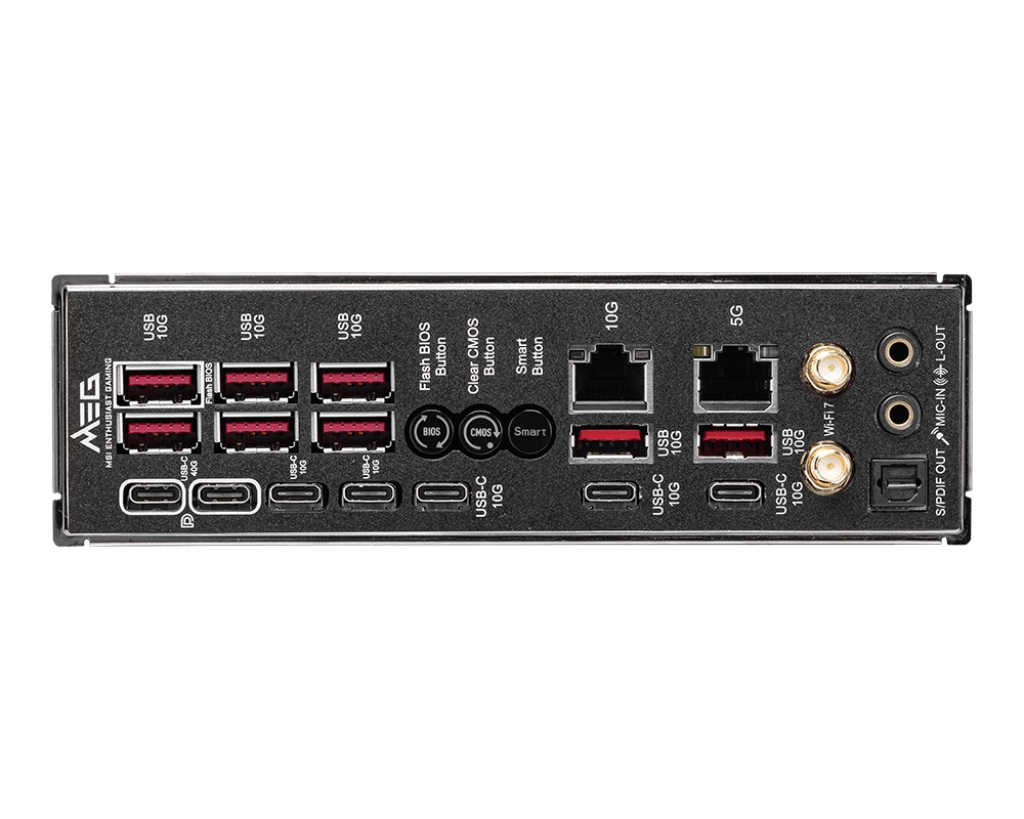

| Заден I/O панел | USB 10Gbps (Type-A) Flash BIOS Button Clear CMOS Button Smart Button 10G LAN 5G LAN Wi-Fi / Bluetooth HD Audio Connectors USB 40Gbps (Type-C) USB 10Gbps (Type-C) USB 10Gbps (Type-A) Optical S/PDIF-Out |
| Размери | E-ATX 304.8 x 277 mm |
| OS | Windows 11 64-bit |
| Поколение процесор | 7-мо поколение 8-мо поколение 9-то поколение |
| Гаранция | 36 месеца |
Все още няма ревюта за този продукт. Бъди първи!
