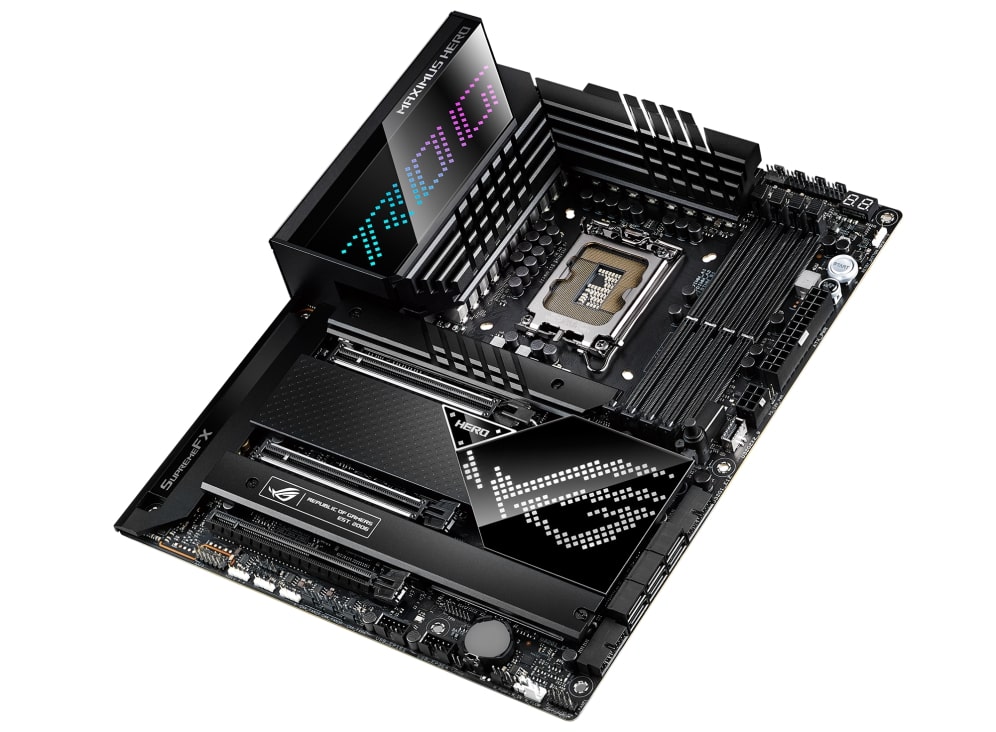

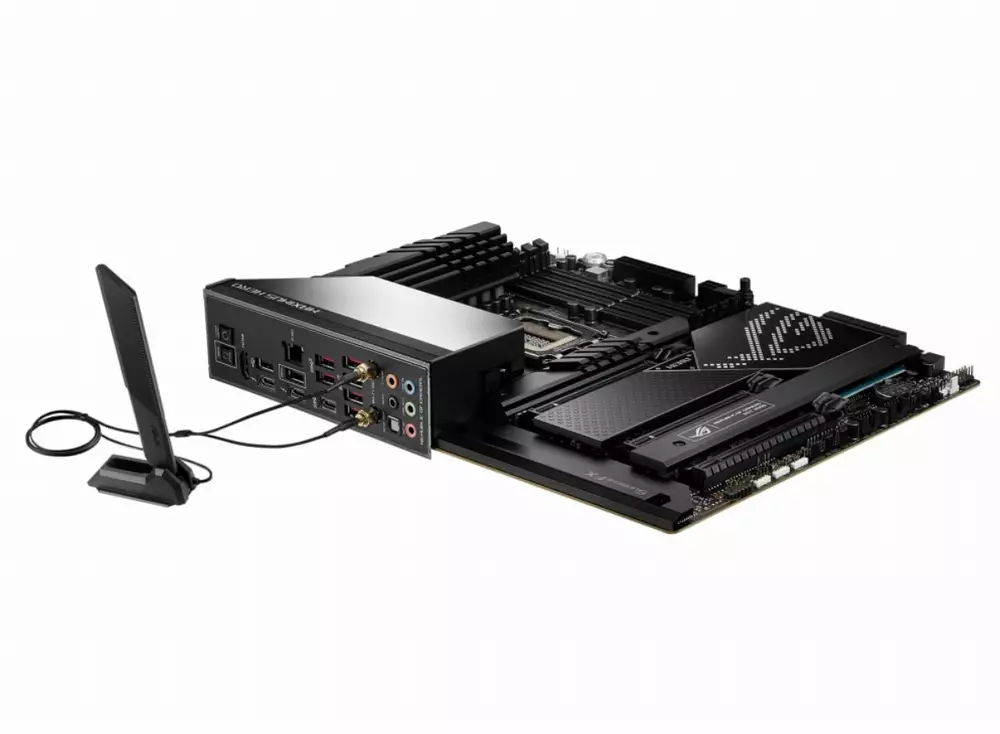

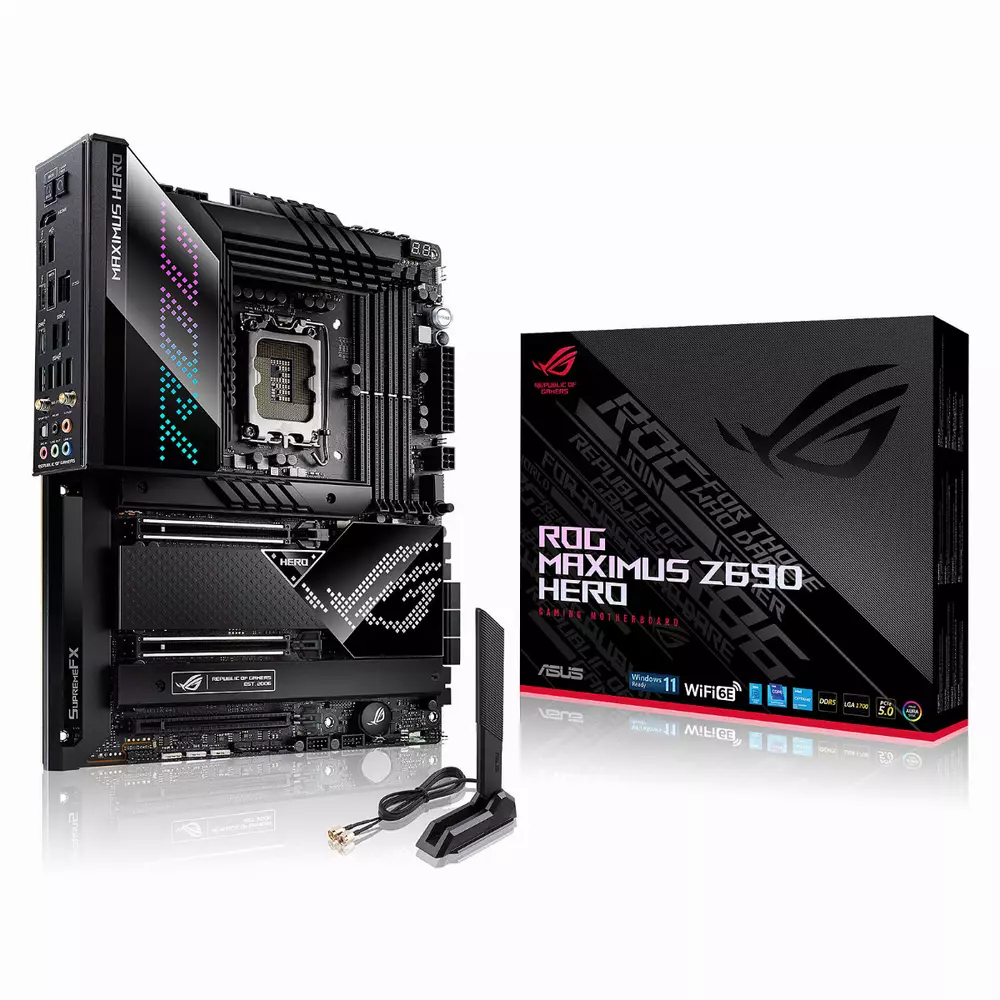

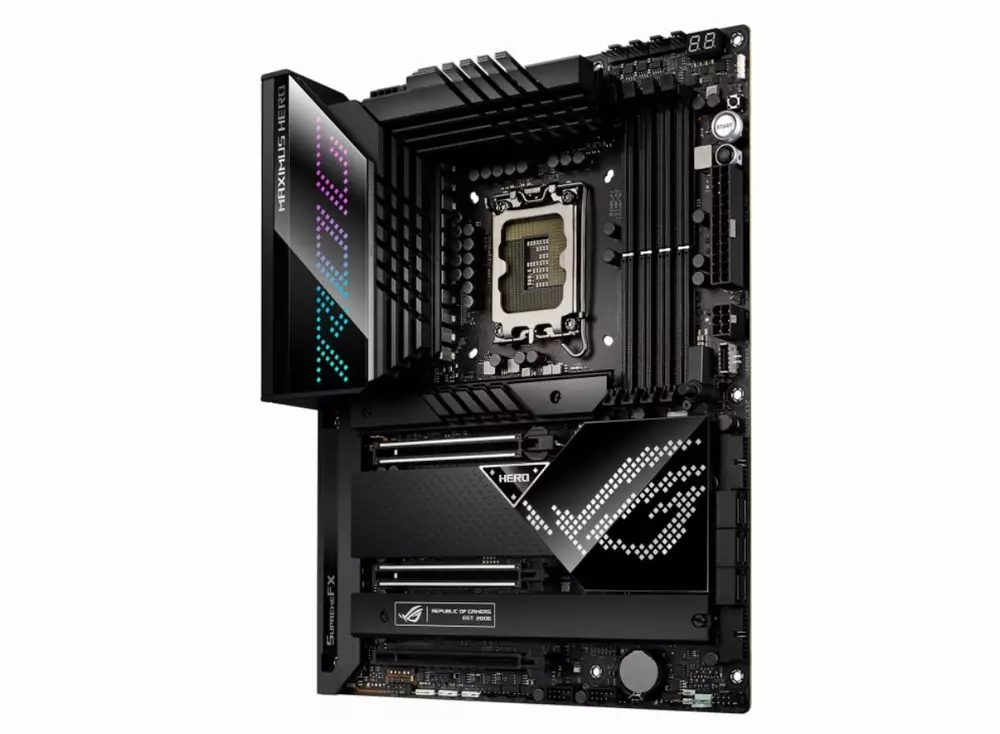

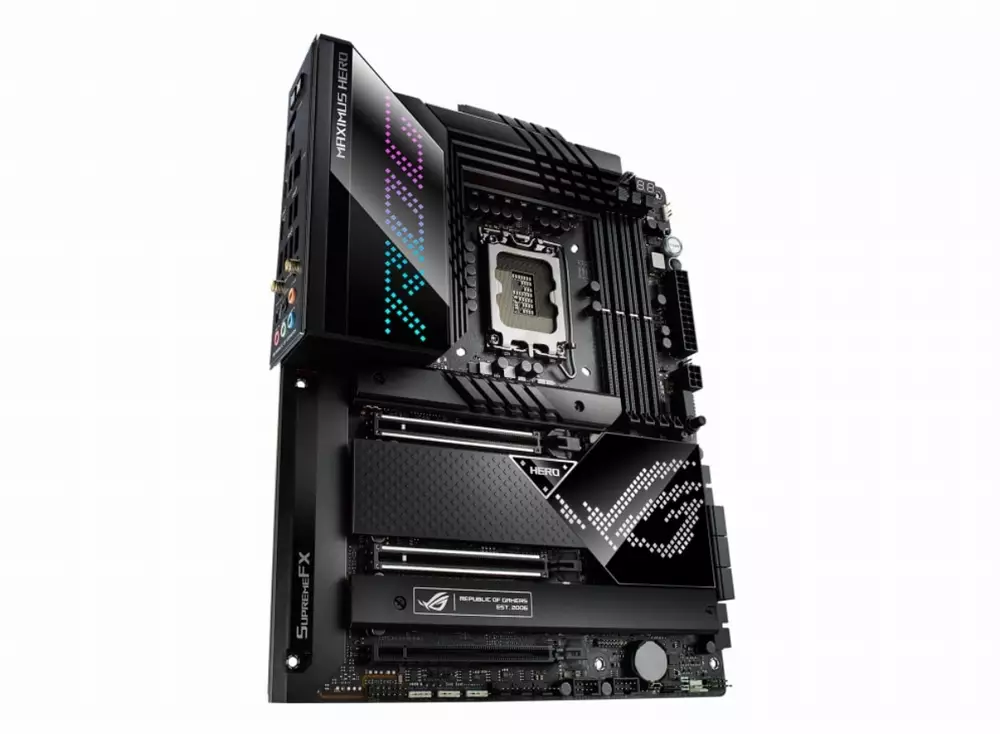

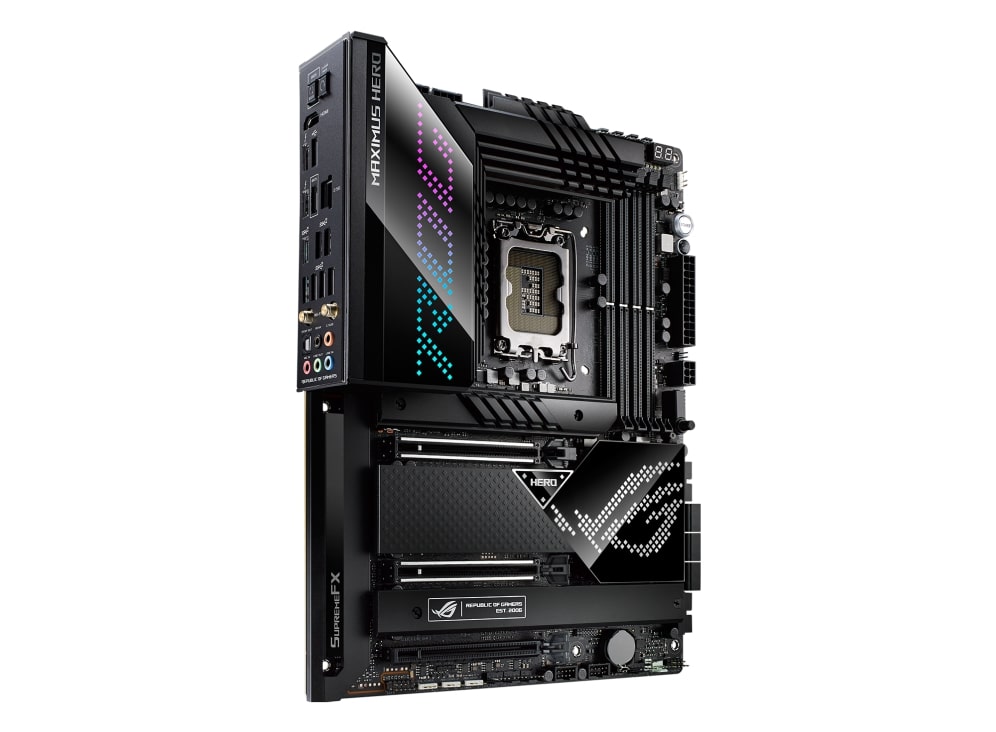

ASUS ROG MAXIMUS Z690 HERO LGA1700 Motherboard

ASUS ROG MAXIMUS Z690 HERO LGA1700 Motherboard

Name: ASUS ROG MAXIMUS Z690 HERO LGA1700 Motherboard
Brand: ASUS
SKU: 27181
Price: 759.89 EUR
Availability: OutOfStock

Code: 27181

☆☆☆☆☆ 0 reviews

759.89 €

Earn 759 points

Out of stock

Notify me when available

We will send you an email as soon as the product is back in stock.

✅ Done! We will write to you as soon as it is available.

CPU socket: LGA 1700
Chipset (MB): Intel Z690 MB
Form factor: ATX
Supported memory: DDR5
Number of memory slots: 4

View all specifications

Full specifications

Manufacturer: ASUS
Product Code: ROG MAXIMUS Z690 HERO
CPU socket: LGA 1700
Chipset (MB): Intel Z690
Form factor: ATX
Supported processors: Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors*
Supported memory: DDR5
Number of memory slots: 4
Maximum RAM capacity: 128 GB
Memory frequency (MHz): 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800
Support for dual-channel memory: Yes
Built-in audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
Built-in Wi-Fi: Wi-Fi 6E
Bluetooth version: Bluetooth V5.2
Built-in LAN: 1 x Intel® 2.5Gb Ethernet

ASUS LANGuard
SATA interface: 6 x SATA3 6.0 Gb/s
RAID support: 0, 1, 5, 10
Expansion slots: Intel® 12th Gen Processors*
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**
Intel® Z690 Chipset***
1 x PCIe 4.0 x16 slot (supports x4, x4/x4 modes)
* Please check PCIe bifurcation table in Chapter 1.
** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1, PCIEX16(G5)_2 will run x8 only and if ROG Hyper M.2 card is installed on PCIEX16(G5)_2, PCIEX16(G5)_1 will run x8 only.
*** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot.
Power connector: 1 x 24-pin
2 x 8-pin
1 x 6-pin
Graphics: 1 x HDMI® port**
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs
The set includes: 1 x ARGB RGB extension cable
1 x RGB extension cable
4 x SATA 6Gb/s cables
ROG Hyper M.2 Card
1 x ROG Hyper M.2 Card with heatsink
2 x M.2 screw packages for ROG Hyper M.2 Card
1 x ASUS Wi-Fi moving antennas
1 x M.2 Q-Latch package
2 x M.2 Q-Latch packages for M.2 backplate
1 x M.2 Rubber Package
1 x Q-connector
1 x ROG Graphics card holder
1 x ROG stickers
1 x ROG key chain
1 x ROG thank you card
1 x USB drive with utilities and drivers
1 x User Guide
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Dimensions: 30.5 cm x 24.4 cm
Processor generation: 14th generation
13th generation
12th generation
*for 13th generation Intel processors, it is necessary to update the BIOS
Warranty: 36 months
OS: Support for Windows 10 and 11 64-bit
M2 slot: Supports 5 x M.2 slots
Intel® 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode.)
- Intel® 12th Gen processors support PCIe 4.0 x4 mode.
Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110***
- Intel® 12th Gen processors support PCIe 5.0 x4 mode
Intel® Z690 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)
Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)
USB ports: Rear USB: Total 11 ports
2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®)
2 x USB 2.0 ports (2 x Type-A)
Front USB: Total 9 ports
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Rear I/O panel: 2 x Thunderbolt™ 4 USB Type-C® ports
7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
