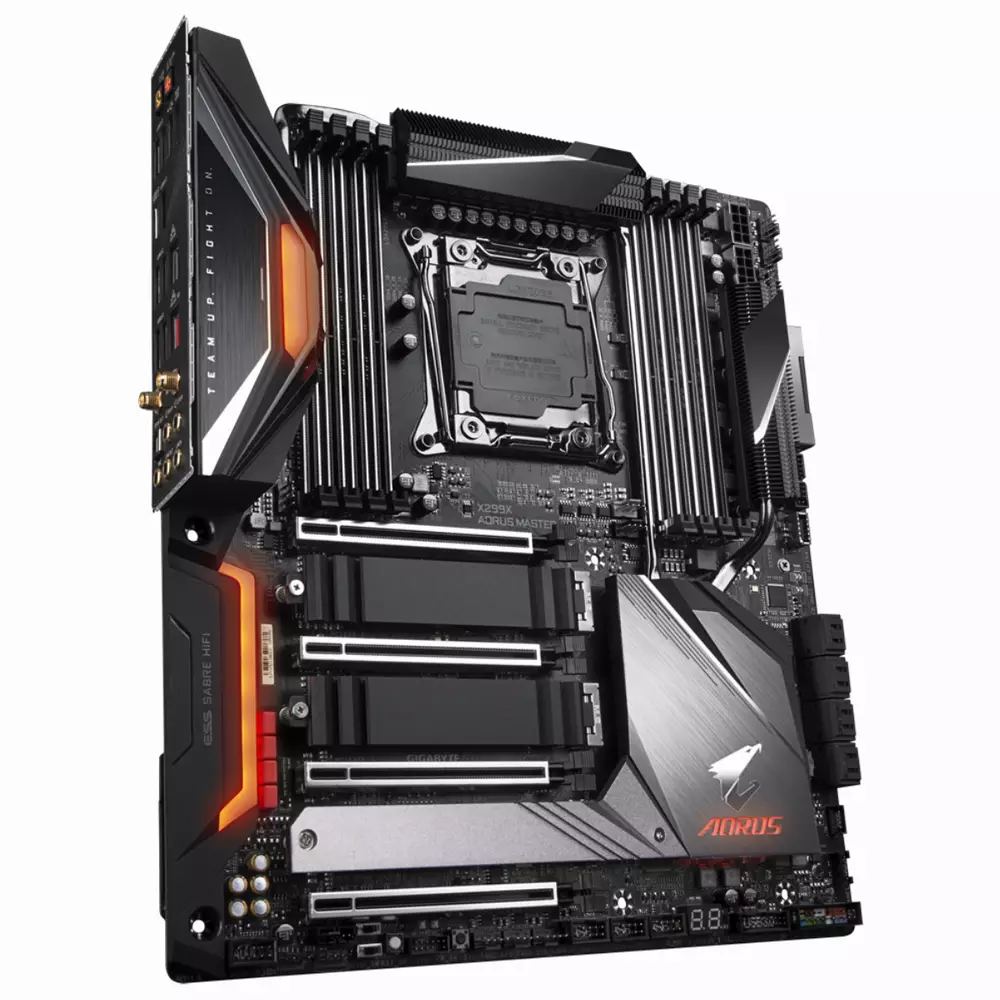

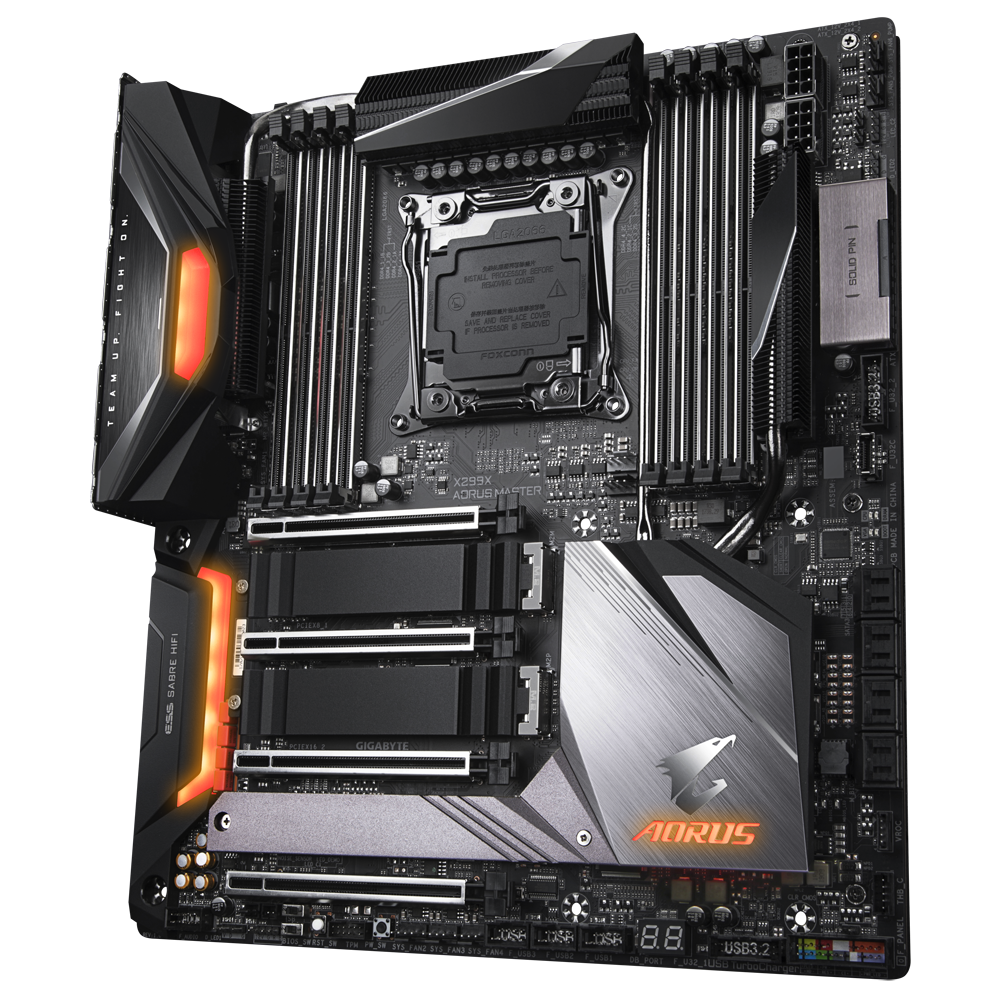

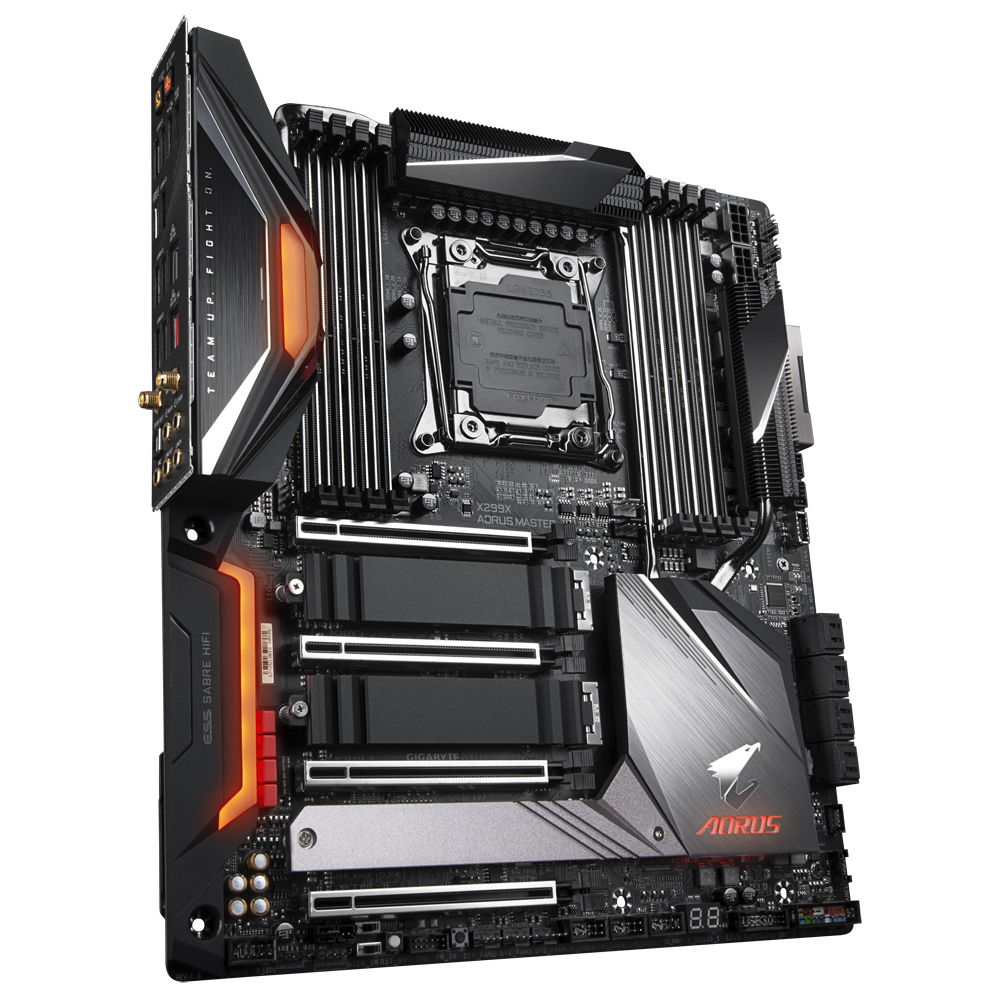

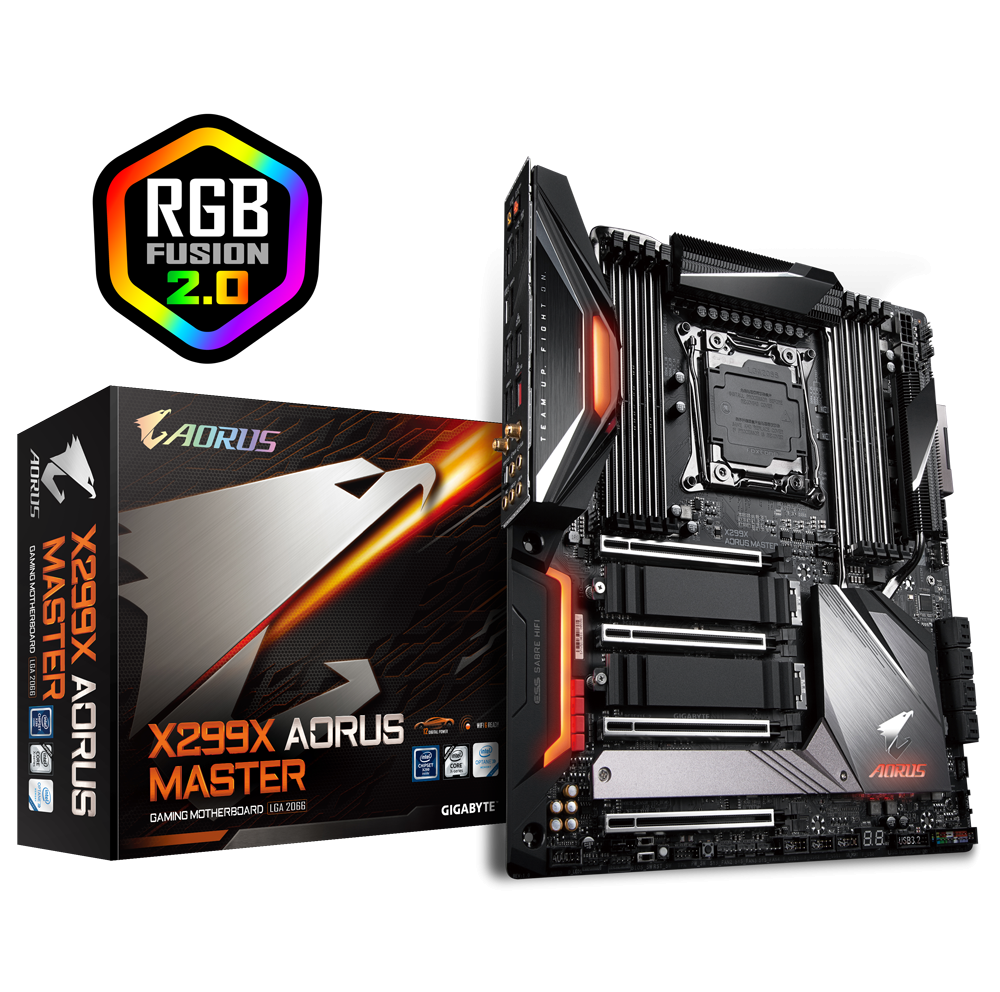

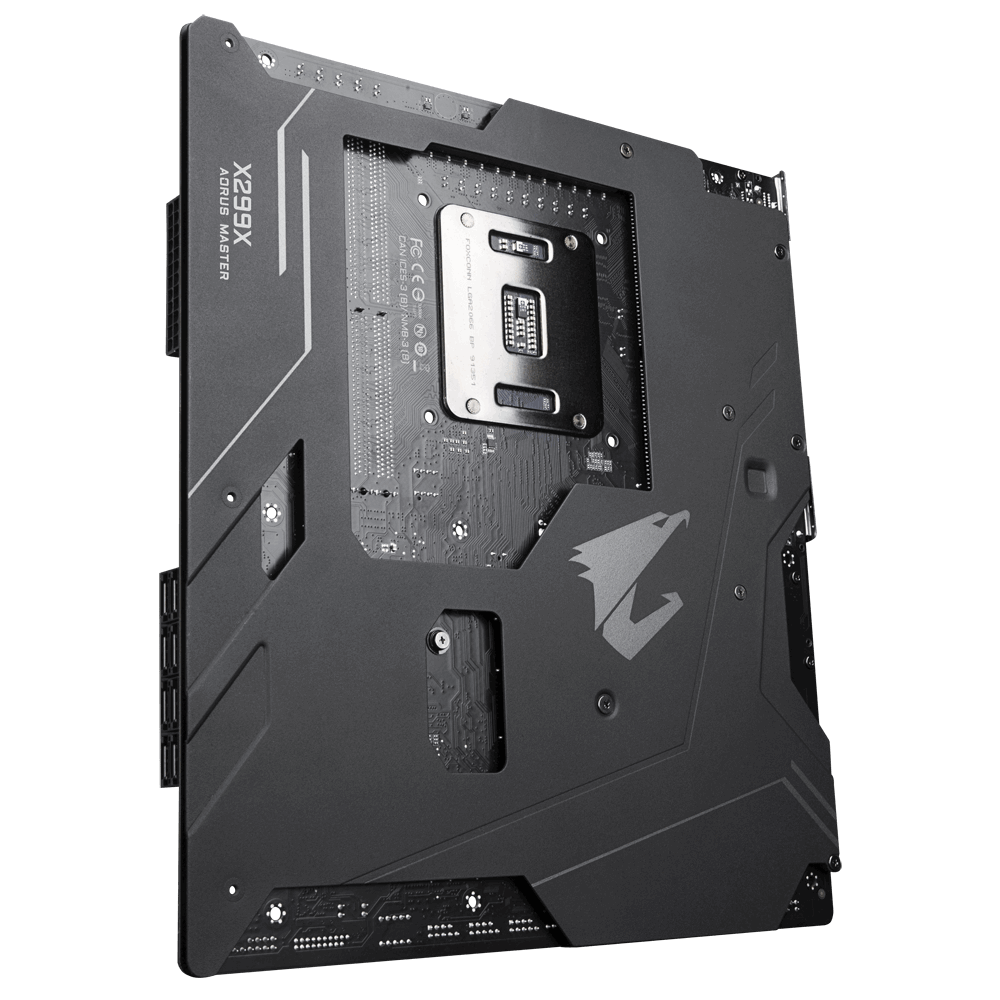

Дънна платка GIGABYTE AORUS X299X MASTER
| Производител | Gigabyte |
| CPU сокет | LGA 2066 |
| Чипсет (MB) | Intel X299 |
| Форм фактор | Extended ATX |
| Поддържани процесори | Intel® Core™ X Series |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 8 |
| Максимален капацитет RAM памет | 256 GB |
| Честота памет (MHz) | До 4400(O.C.) |
| Поддръжка на двуканална памет | 4 канална архитектура |
| Вградено аудио | Realtek ALC1220 |
| Вграден Wi-Fi | Intel® Wi-Fi 802.11ax MU-MIMO |
| Bluetooth версия | Bluetooth V5.0 |
| Вграден LAN | 1 x Aquantia 5GbE LAN chip (5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (5GLAN) |
| Интерфейс SATA | 8 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0, 1, 5, 10 |
| М2 слот | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P) |
| Разширителни слотове | Intel® Core™ X series 48-lane processors: 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2) * The PCIEX16_2 slot shares bandwidth with the PCIEX8_1 slot. When the PCIEX8_1 slot is populated, the PCIEX16_2 slot operates at up to x8 mode. Intel® Core™ X series 44-lane processors: 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 1 x PCI Express x16 slot, running at x8 (PCIEX8_1) 1 x PCI Express x16 slot, running at x4 (PCIEX8_2) * The PCIEX16_2 slot shares bandwidth with the PCIEX8_1 slot. When the PCIEX8_1 slot is populated, the PCIEX16_2 slot operates at up to x8 mode. Intel® Core™ X series 28-lane processors: 1 x PCI Express x16 slot, running at x16 (PCIEX16_1) 1 x PCI Express x16 slot, running at x8 (PCIEX16_2) 1 x PCI Express x16 slot, running at x4 (PCIEX8_2) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot. (All of the PCI Express x16 slots conform to PCI Express 3.0 standard.) |
| Конектор захранване | 1 x 24-pin 1 x 8-pin |
| USB портове | Chipset+2 ASMedia® USB 3.2 Gen 2 Controllers: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+Realtek® USB 3.2 Gen 1 Hub: 2 x USB 3.2 Gen 1 ports on the back panel 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset: 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) 2 x USB 2.0/1.1 ports available through the internal USB header |

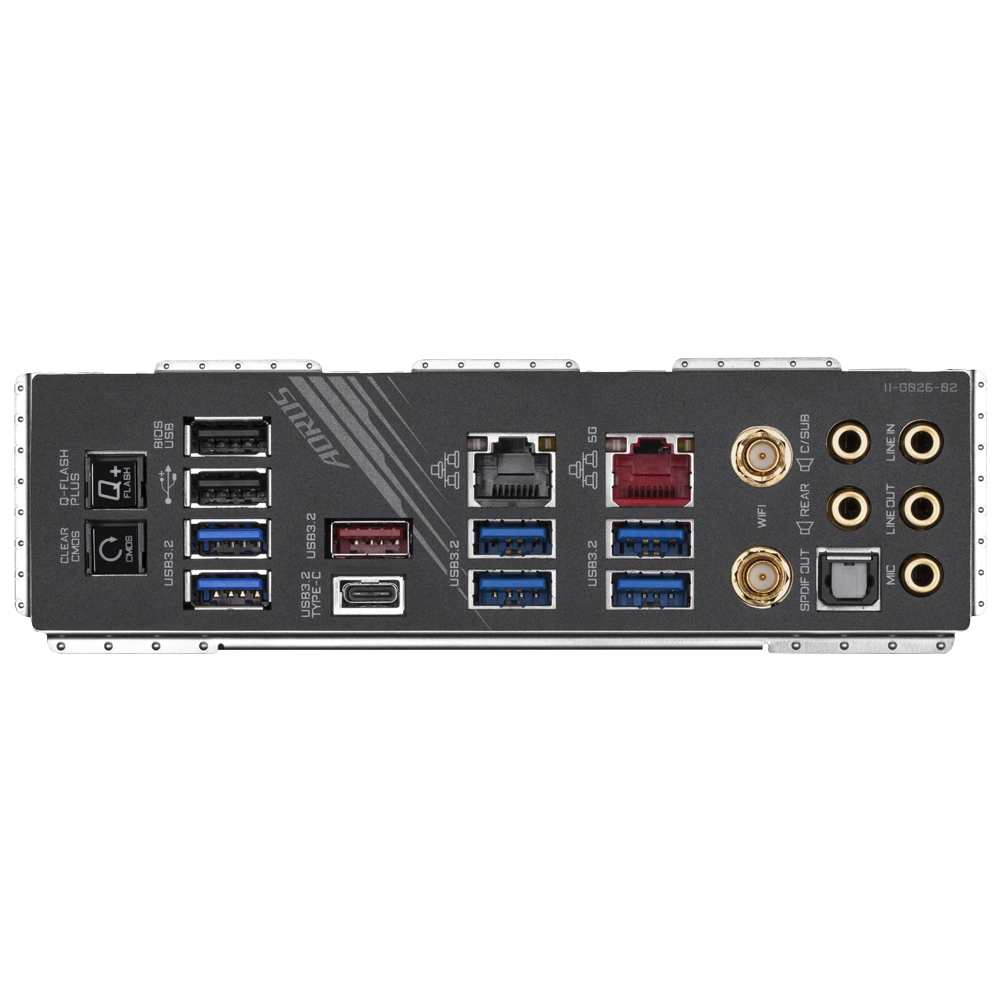

| Заден I/O панел | 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 6 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x RJ-45 ports 2 x SMA antenna connectors (2T2R) 1 x optical S/PDIF Out connector 5 x audio jacks |
| Мулти GPU технология | Supports NVIDIA® 4-Way SLI™ Technology;Supports NVIDIA® 3-Way SLI™ Technology;Supports NVIDIA® SLI™ Technology;Supports AMD 4-Way CrossFireX Technology;Supports AMD 3-Way CrossFireX™ Technology;Supports AMD CrossFireX™ Technology |
| Bios | BIOS:2 x 128 Mbit flash Use of licensed AMI UEFI BIOS: Support for DualBIOS™ PnP 1.0a DMI 2.7 WfM 2.0 SM BIOS 2.7 ACPI 5.0 |
| Размери | 30.5cm x 26.9cm |
| OS | Microsoft Windows 10 64-bit |
| Поколение процесор | X - серия процесори |
| Гаранция | 36 месеца |
