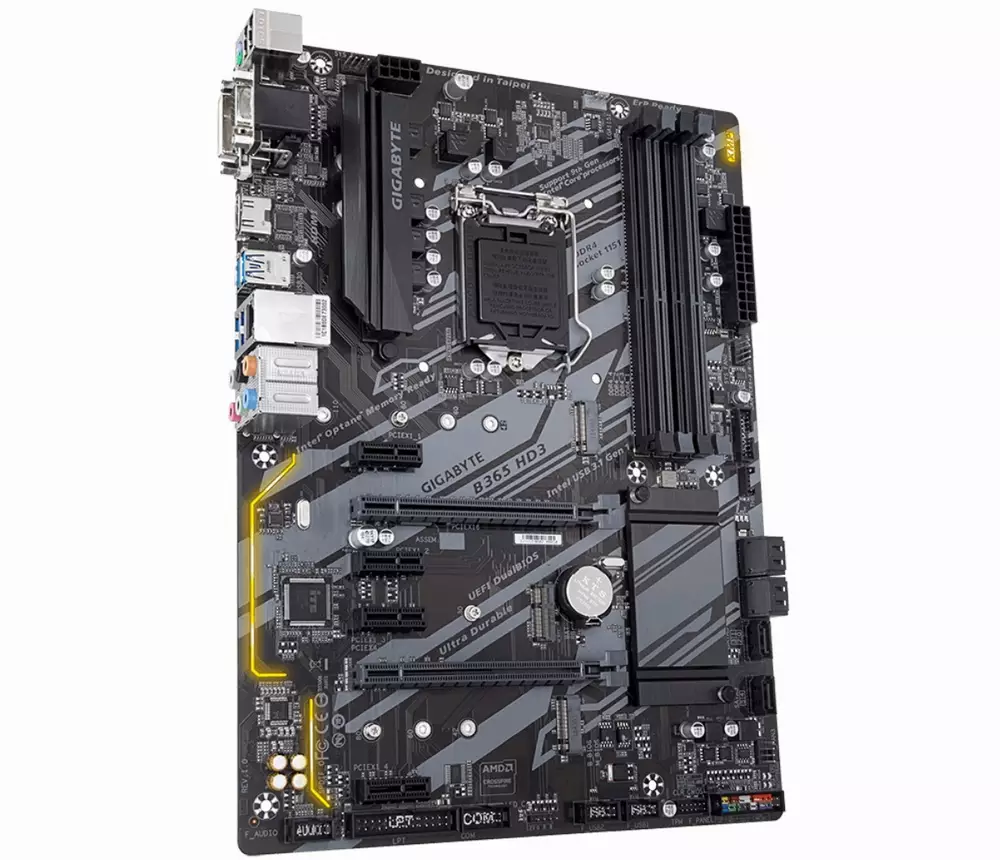

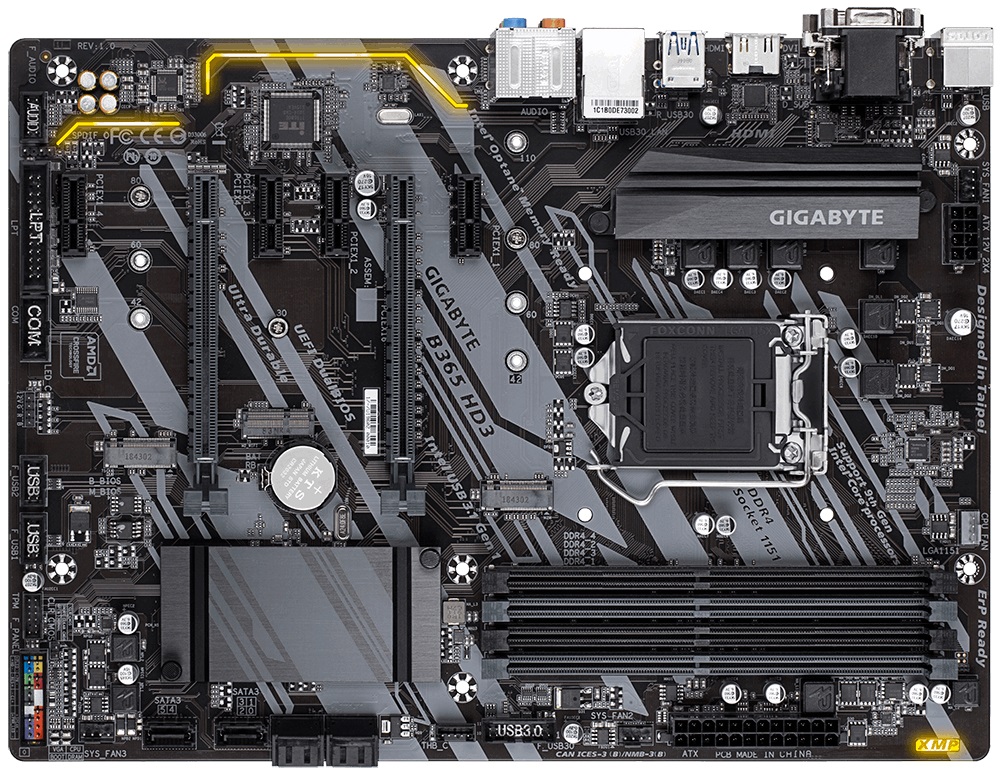

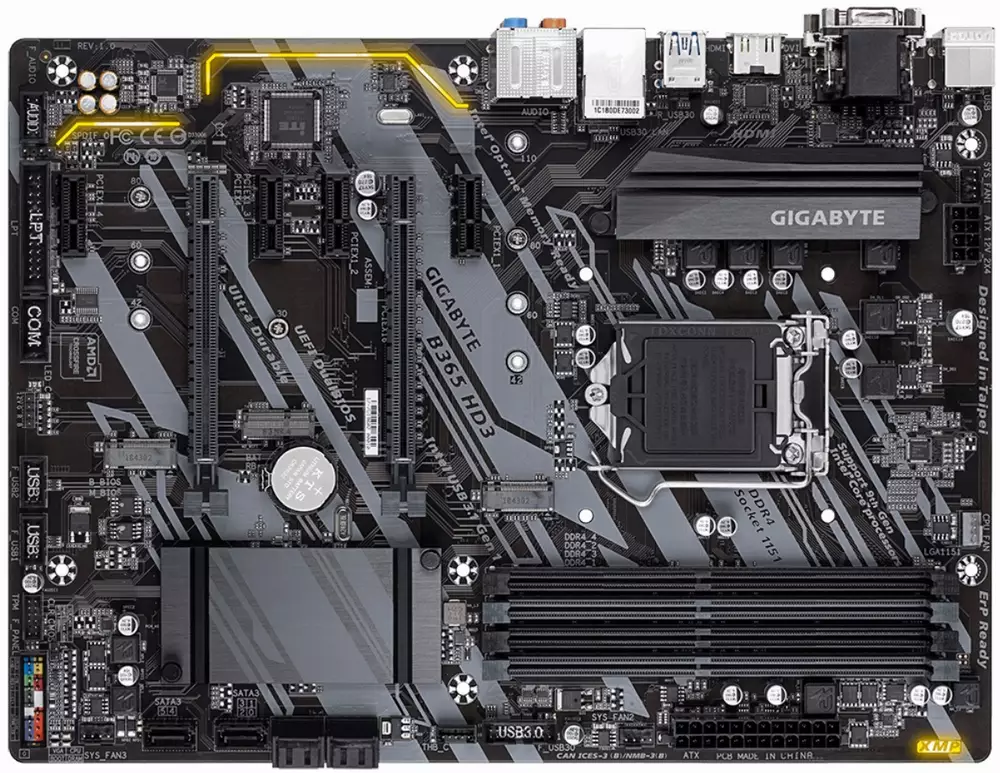

Дънна платка GIGABYTE B365 HD3

95.56/ 186.90 лв.
Спечели 95 точки с тази покупка
Изчерпан
Код: 15232
Производител
Gigabyte
CPU сокет
LGA 1151
Чипсет (MB) Intel B365
Форм фактор ATX
Поддържани процесори
Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
Поддържана памет
DDR4
Брой слотове за памет 4
Максимален капацитет RAM памет 64 GB
Честота памет (MHz)
до 2666MHz
Поддръжка на двуканална памет Да
Вградено аудио
Realtek® ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Вграден LAN
Realtek GbE LAN chip
(10/100/1000 Mbit)
Интерфейс SATA 6 x SATA3 6.0 Gb/s
Поддръжка на RAID 0, 1, 5, 10
М2 слот
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P)
Разширителни слотове
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
4 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Конектор захранване
1 x 24-pin
1 x 8-pin
USB портове
Chipset:
6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

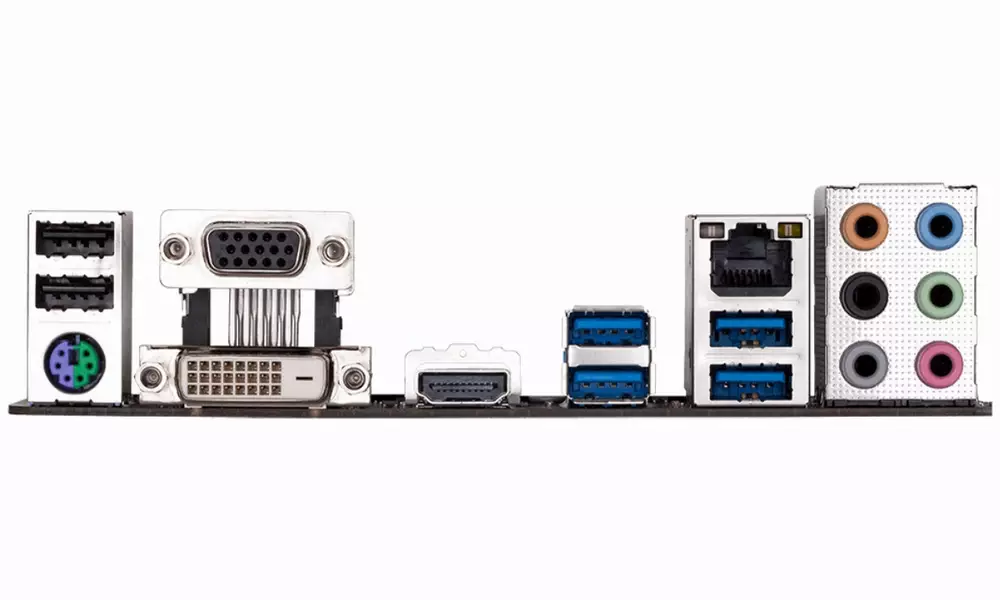

Заден I/O панел
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks
Графика
Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Support for up to 3 displays at the same time
Maximum shared memory of 1 GB
Actual support may vary by CPU
Размери 30.5cm x 22.5cm
OS
Support for Windows 10 64-bit
Поколение процесор
8-мо поколение
9-то поколение
Гаранция 36 месеца
