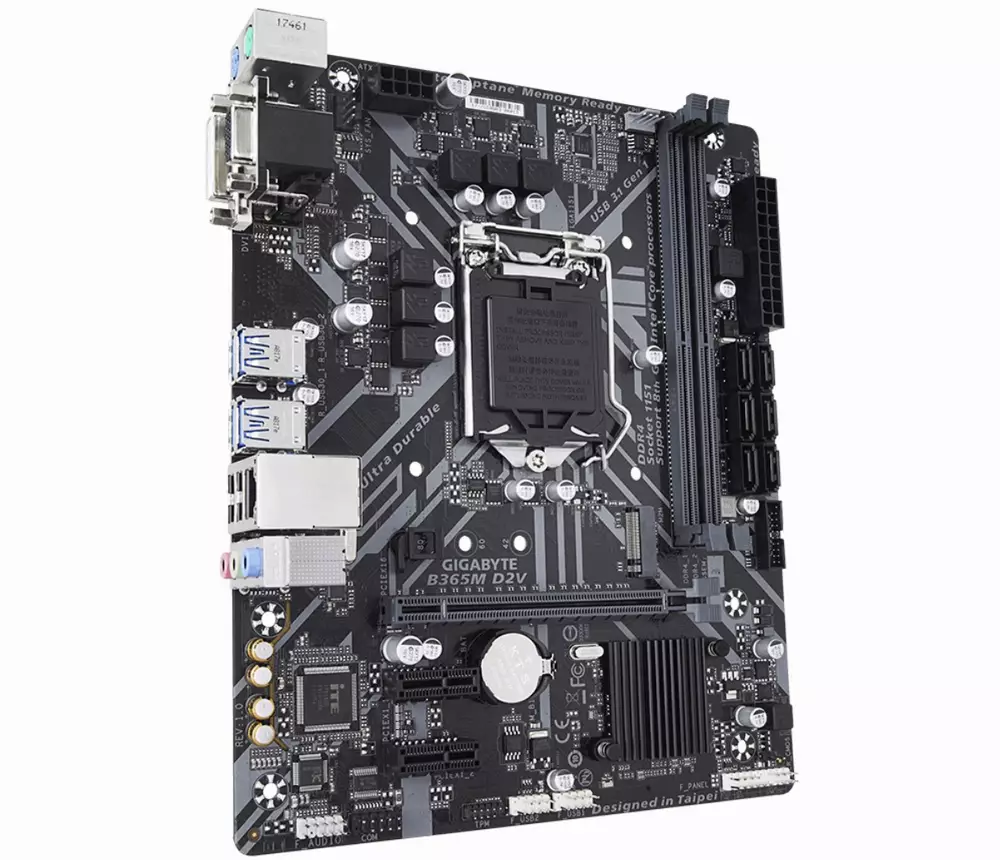

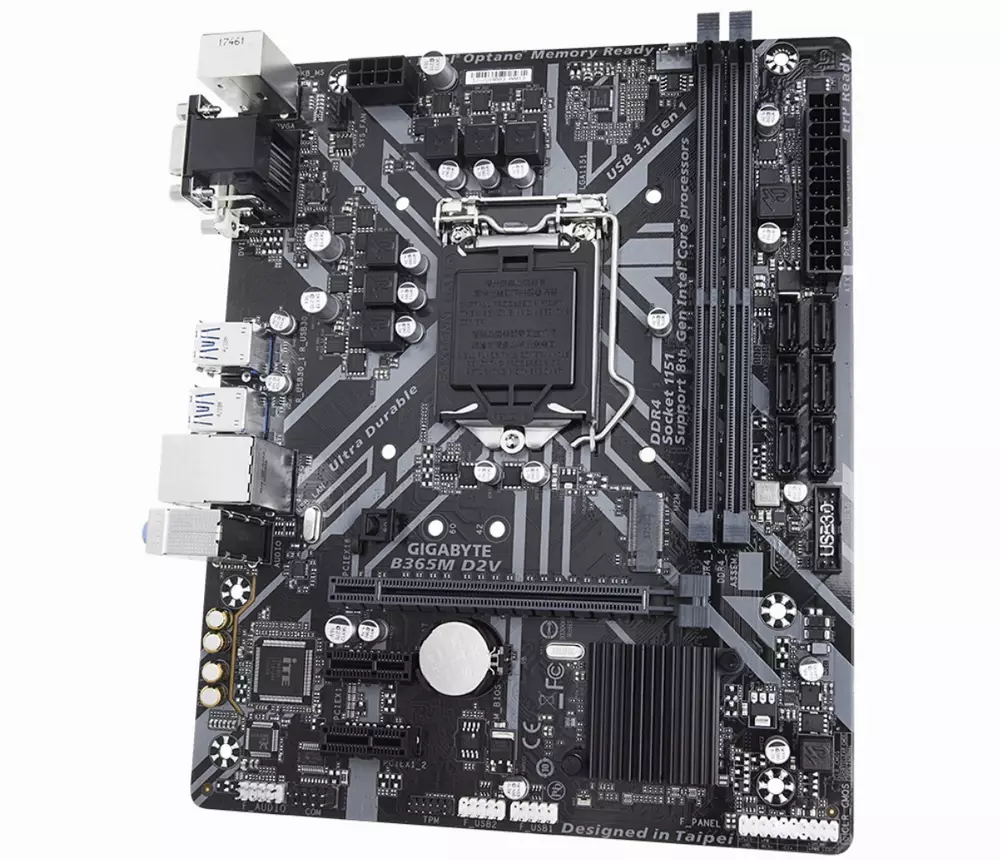

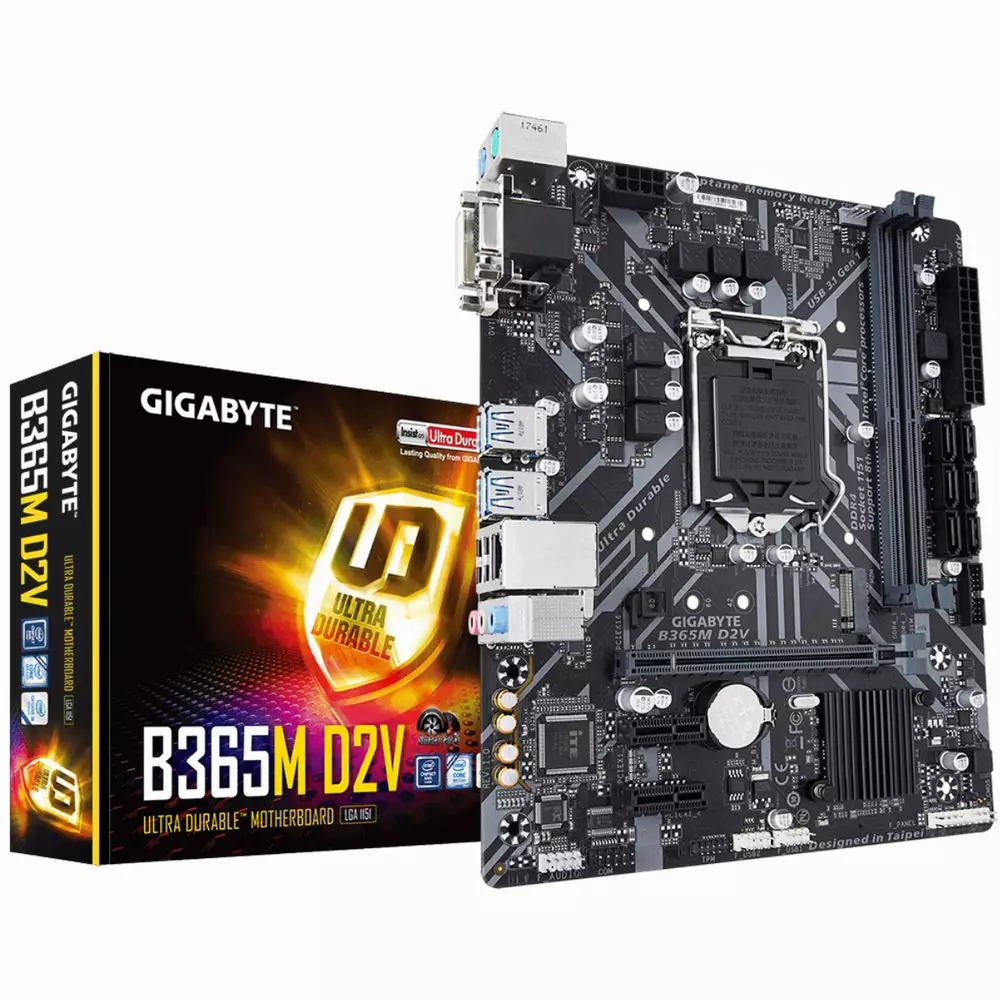

Дънна платка Gigabyte B365M D2V

71.83/ 140.49 лв.
Спечели 71 точки с тази покупка
Изчерпан
Код: 15228
Производител
Gigabyte
CPU сокет
LGA 1151
Чипсет (MB) Intel B365
Форм фактор Micro ATX
Поддържани процесори
Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
Поддържана памет
DDR4
Брой слотове за памет 2
Максимален капацитет RAM памет 32 GB
Честота памет (MHz)
до 2666MHz
Поддръжка на двуканална памет Да
Вградено аудио
Realtek ALC887
Вграден LAN
Realtek GbE LAN chip
(10/100/1000 Mbit)
Интерфейс SATA Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support); 6 x SATA 6Gb/s connectors; Support for RAID 0, RAID 1, RAID 5, and RAID 10; * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready
Поддръжка на RAID 0, 1, 5, 10
М2 слот
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
Разширителни слотове
1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Конектор захранване
1 x 24-pin
1 x 8-pin
USB портове
6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

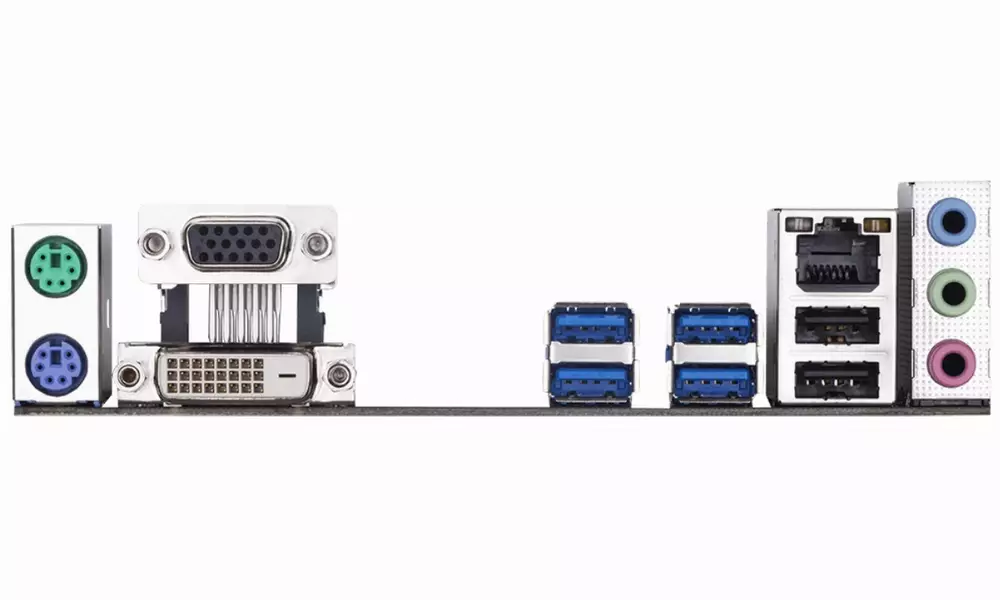

Заден I/O панел
1 x PS/2 mouse port
1 x PS/2 Keyboard port
1 x D-Sub port
1 x DVI-D port
4 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Графика
Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter. Maximum shared memory of 1 GB
Actual support may vary by CPU
Размери 22.6cm x 18.5cm
OS
Support for Windows 10 64-bit
Поколение процесор
8-мо поколение
9-то поколение
Гаранция 36 месеца
