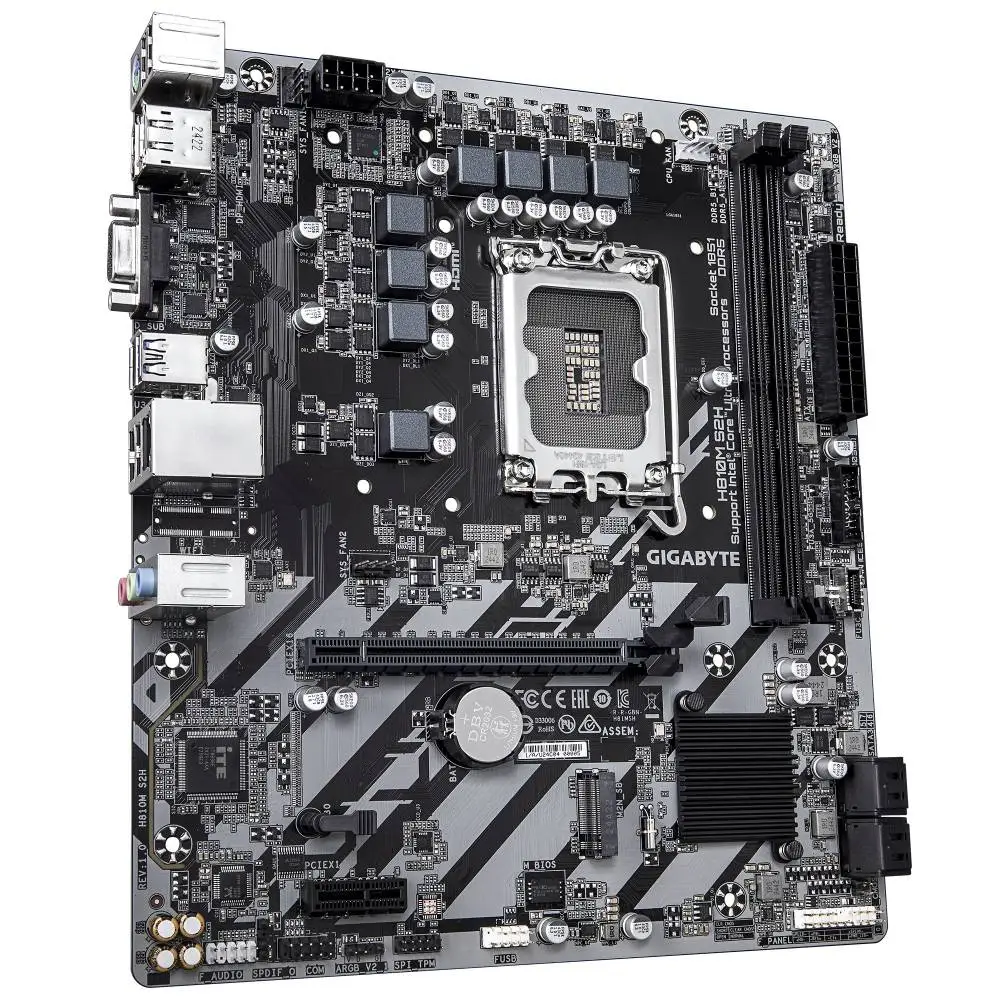

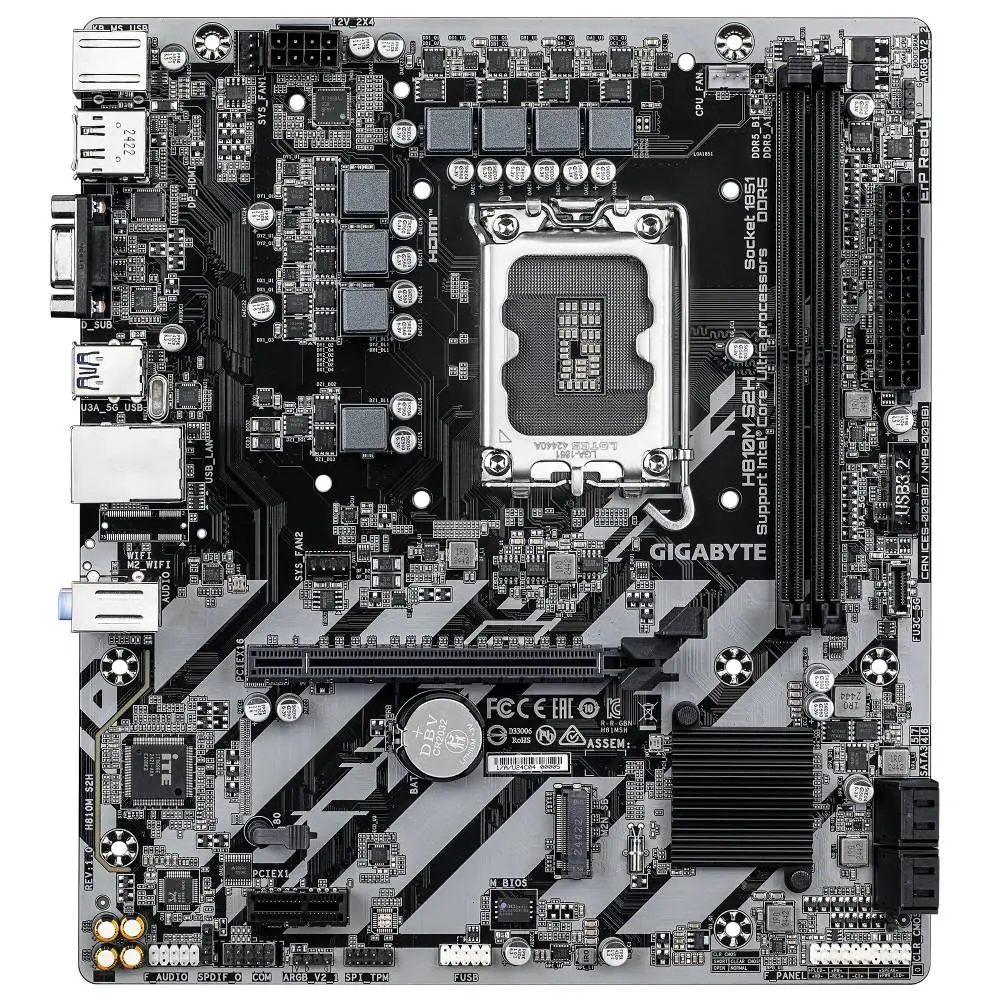

Motherboard Gigabyte H810M S2H LGA1851

Gigabyte H810M S2H is a compact Micro ATX motherboard for LGA 1851, aimed at stable and budget-oriented builds with the new Intel Core Ultra processors. It combines a basic Intel H810 chipset with modern features like DDR5 memory and PCIe 4.0 for GPU and NVMe SSD. You get support for up to 128 GB DDR5 and an M.2 slot with PCIe 4.0 x4 for a fast storage solution. It is ideal for compact cases where you want good connectivity without unnecessary extras like built-in Wi-Fi.

What you get

The board works with Intel Core Ultra processors on LGA 1851 socket, giving you a current platform for everyday work, office, light productivity, and more accessible gaming. The two DDR5 slots support up to 128 GB RAM and frequencies up to 6400 MHz (OC), so you can start with 1–2 modules and later upgrade without changing the motherboard. The M.2 slot with PCIe 4.0 x4 allows you to install a fast NVMe SSD for the operating system and games, while the four SATA3 6.0 Gb/s ports are perfect for HDD/SSD for storage and backup, including RAID 0/1/5/10 configurations. The Gigabit LAN chip from Realtek provides a stable wired network, and the USB configuration is sufficient for most peripherals and external devices, including through an internal USB Type‑C header for the front panel.

• Socket LGA 1851 with support for Intel Core Ultra processors – a current platform for the new generation of CPUs with good upgrade potential.
• Support for DDR5 memory with up to 6400 MHz (OC) and dual-channel mode – higher bandwidth and better system responsiveness.
• 2 RAM slots with a maximum of 128 GB – enough for future upgrades, even with heavy multitasking and more serious productivity.
• 1 x M.2 (PCIe 4.0 x4/x2) for NVMe SSD – fast system disk for Windows, games, and programs without the need for additional adapters.
• 4 x SATA3 6.0 Gb/s with support for RAID 0, 1, 5, 10 – flexible storage solution for speed, reliability, or a combination of both.
• 1 x PCIe 4.0 x16 slot for GPU and 1 x PCIe 3.0 x1 for expansion cards – enough options for a graphics card, capture card, additional controller, etc.
• Realtek GbE LAN (10/100/1000 Mbit) and Realtek Audio CODEC – stable network connection and basic sound for everyday use and gaming.

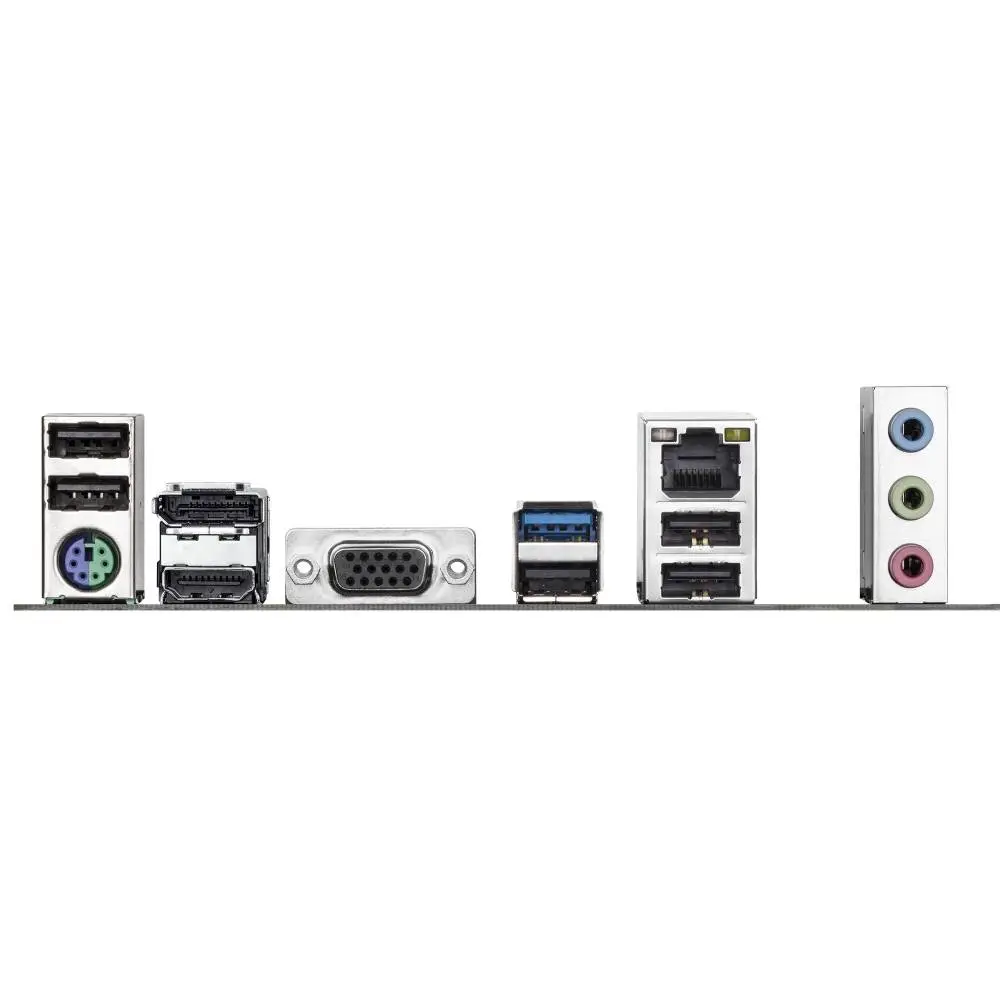

• A rich selection of USB: USB 3.2 Gen 1, internal USB Type‑C header, and multiple USB 2.0 ports – enough connectors for mouse, keyboard, headphones, flash drives, and external drives.
• Micro ATX form factor with standard 24‑pin + 8‑pin power connectors – easy integration into most mATX and ATX cases.

Who it is suitable for

This motherboard is suitable if you want a compact, budget, or office/gaming build with the new generation Intel Core Ultra, without paying for extras like Wi-Fi and heavy overclocking. It is a good choice for a home or office computer, e-sports titles, and systems with 1 GPU and several SSD/HDD. If you are aiming for multiple GPU configurations, enthusiast overclocking, or many M.2 devices, this board may feel limited.

The most sensible aspect here is the combination of the LGA 1851 platform, DDR5 support, and PCIe 4.0 in a compact Micro ATX body, without unnecessary additions that only raise the price. Clear, practical, and focused on getting the job done with a reliable foundation for future upgrades.
