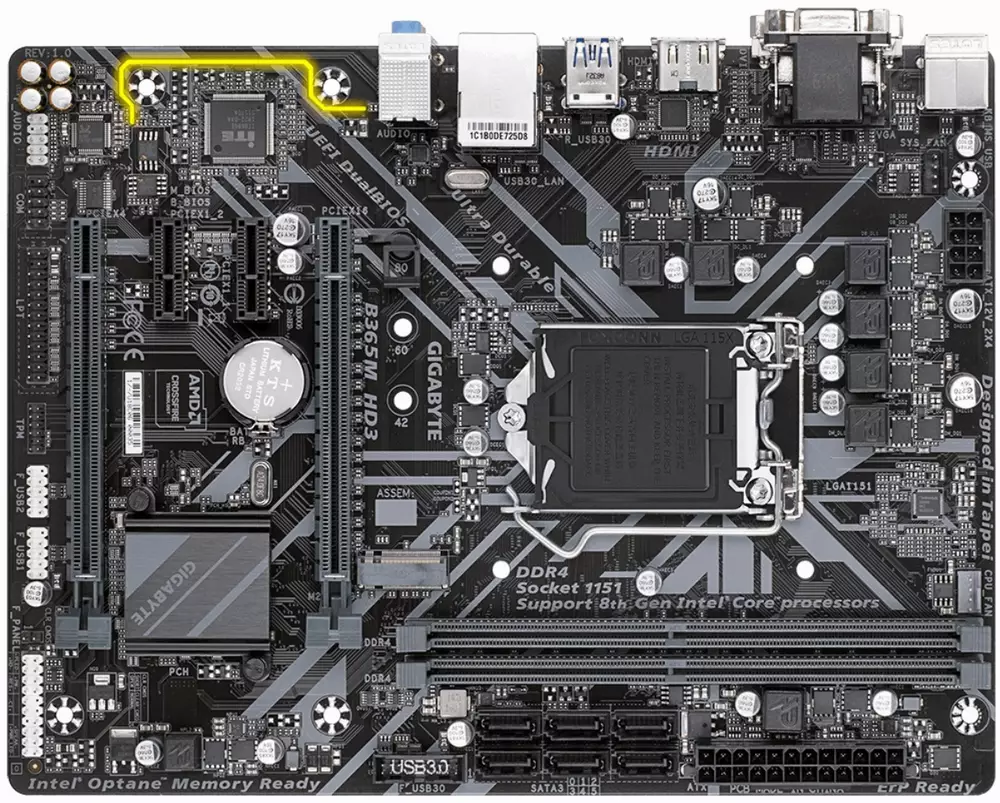

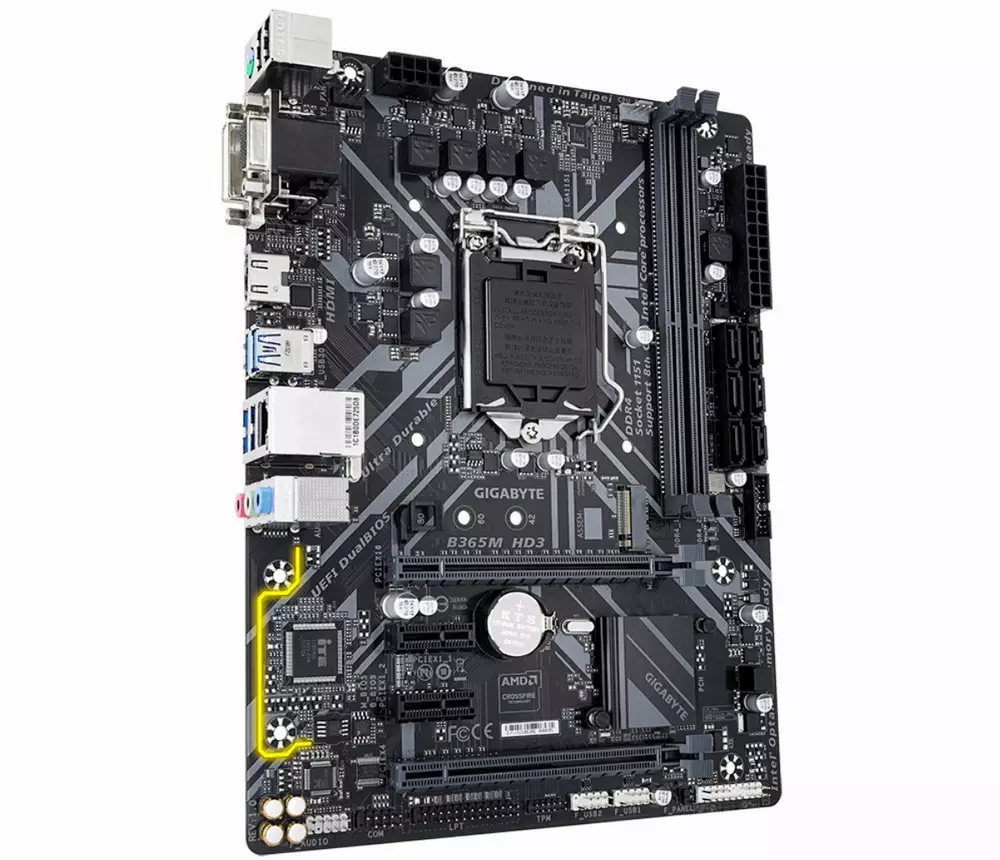

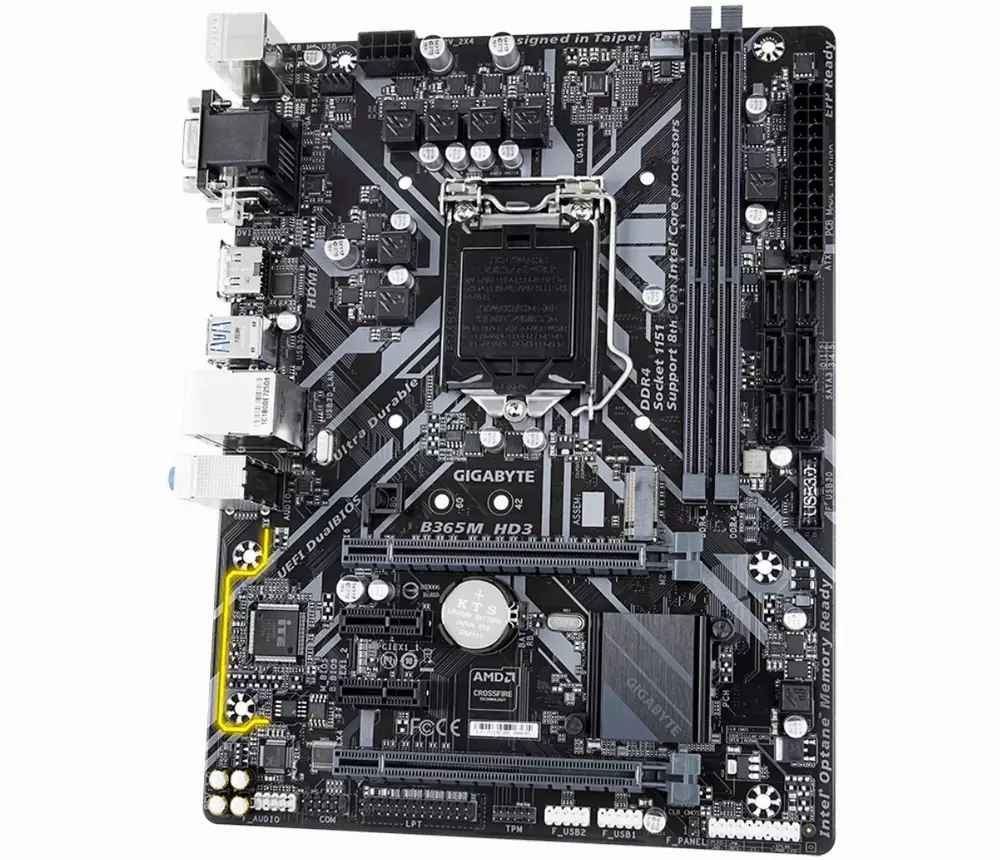

Дънна платка Gigabyte B365M HD3
| Производител | Gigabyte |
| CPU сокет | LGA 1151 |
| Чипсет (MB) | Intel B365 |
| Форм фактор | Micro ATX |
| Поддържани процесори | Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 2 |
| Максимален капацитет RAM памет | 32 GB |
| Честота памет (MHz) | до 2666MHz |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek ALC887 |
| Вграден LAN | Realtek GbE LAN chip (10/100/1000 Mbit) |
| Интерфейс SATA | 6 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0, 1, 5, 10 |
| М2 слот | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) |
| Разширителни слотове | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| Конектор захранване | 1 x 24-pin 1 x 8-pin |
| USB портове | 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |

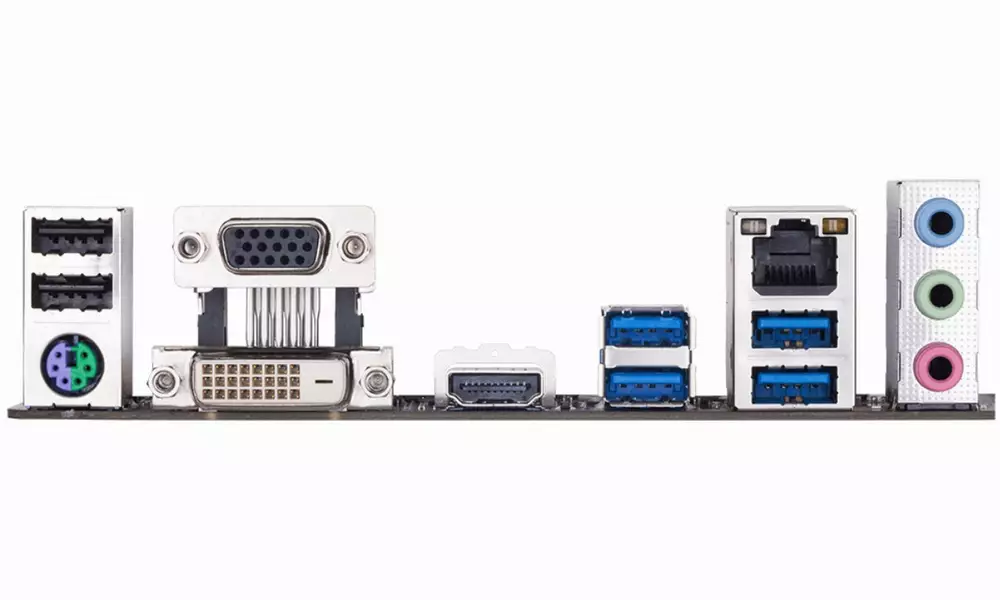

| Заден I/O панел | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Графика | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. Support for up to 3 displays at the same time Maximum shared memory of 1 GB Actual support may vary by CPU |
| Мулти GPU технология | AMD Quad-GPU CrossFire and 2-Way AMD CrossFire |
| Размери | 24.4cm x 18.5cm |
| OS | Support for Windows 10 64-bit |
| Поколение процесор | 8-мо поколение 9-то поколение |
| Гаранция | 36 месеца |
