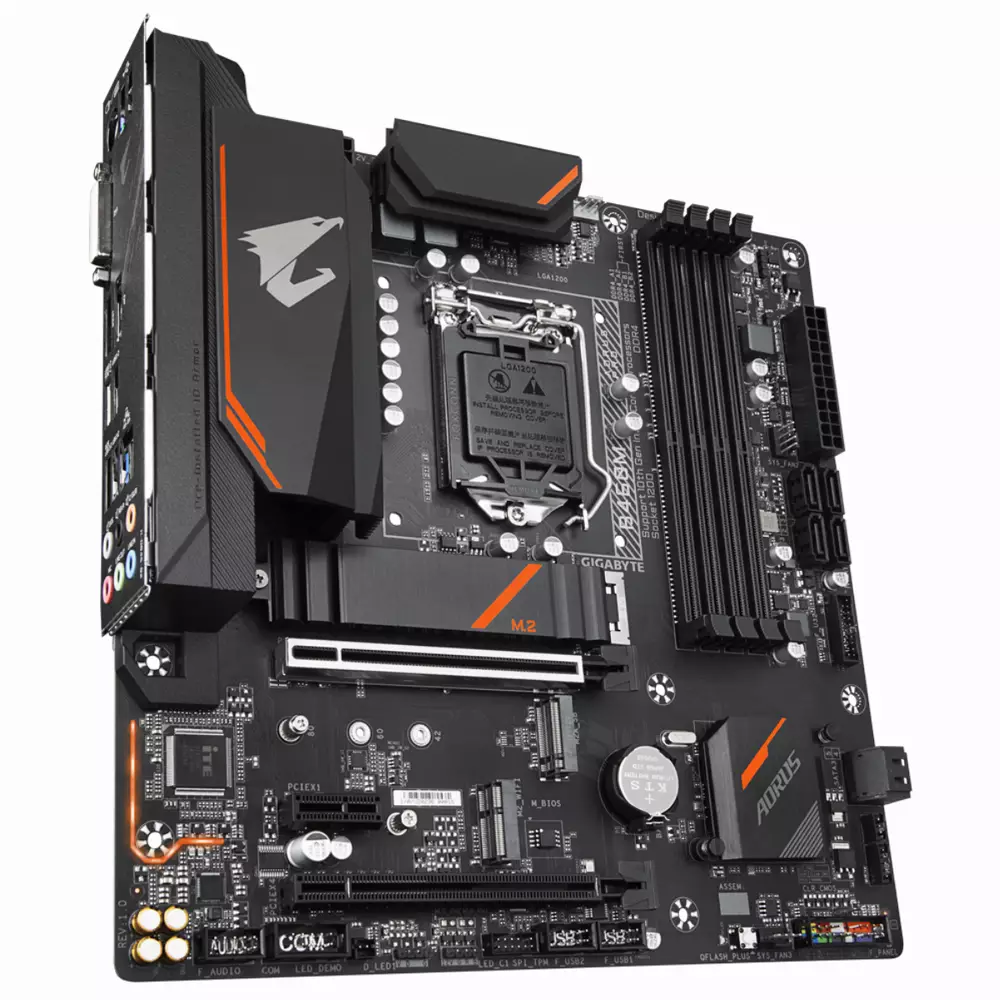

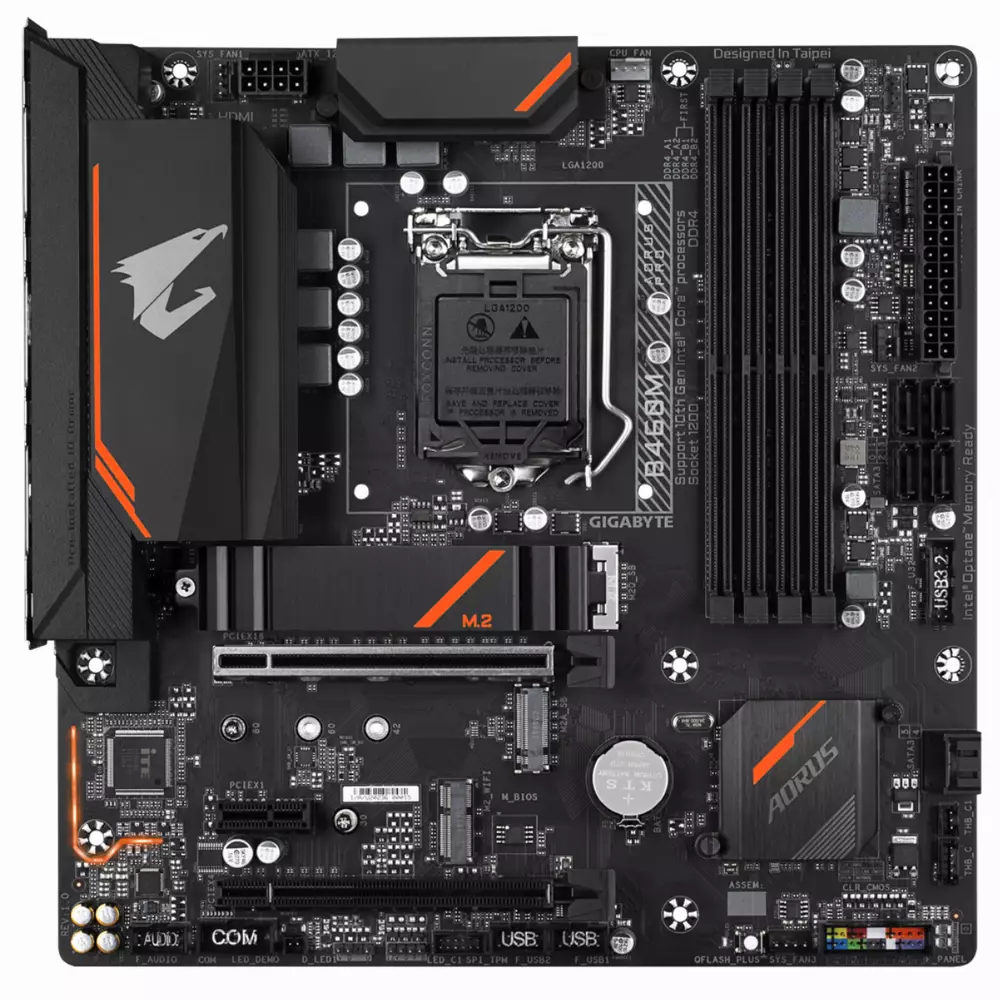

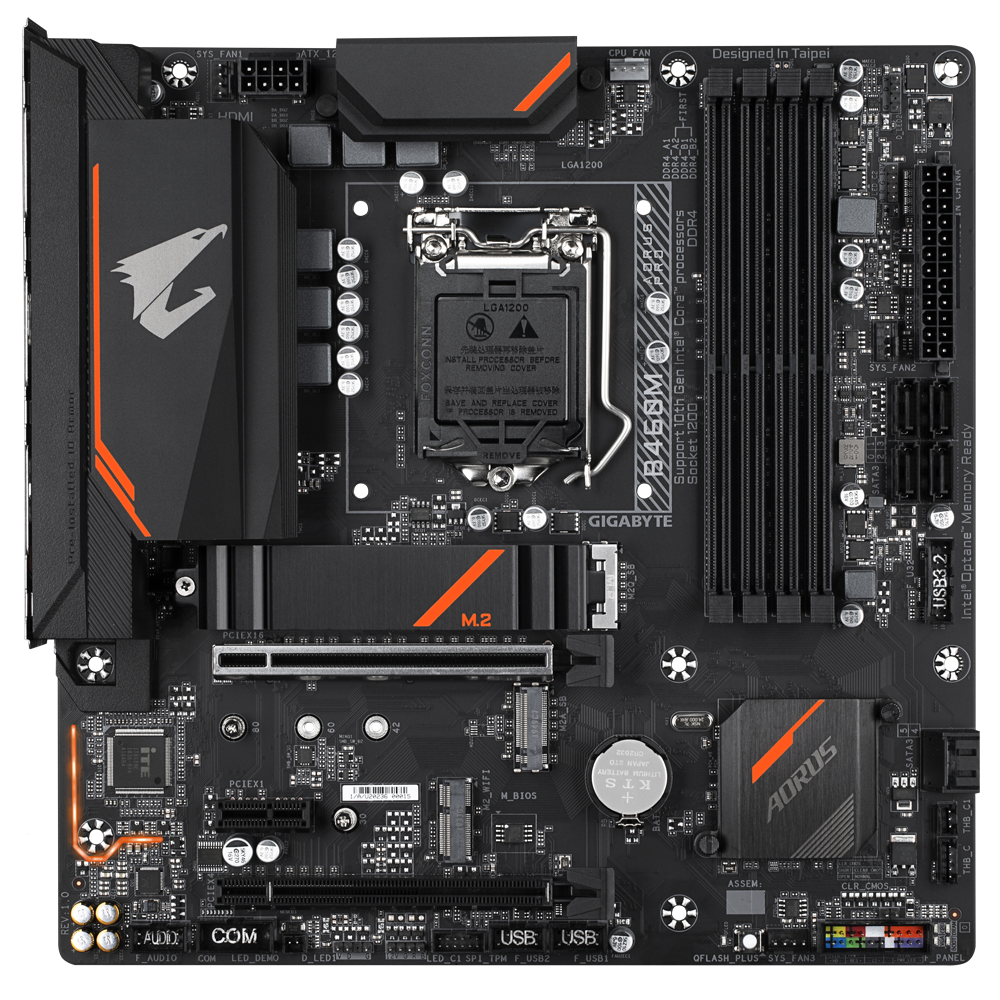

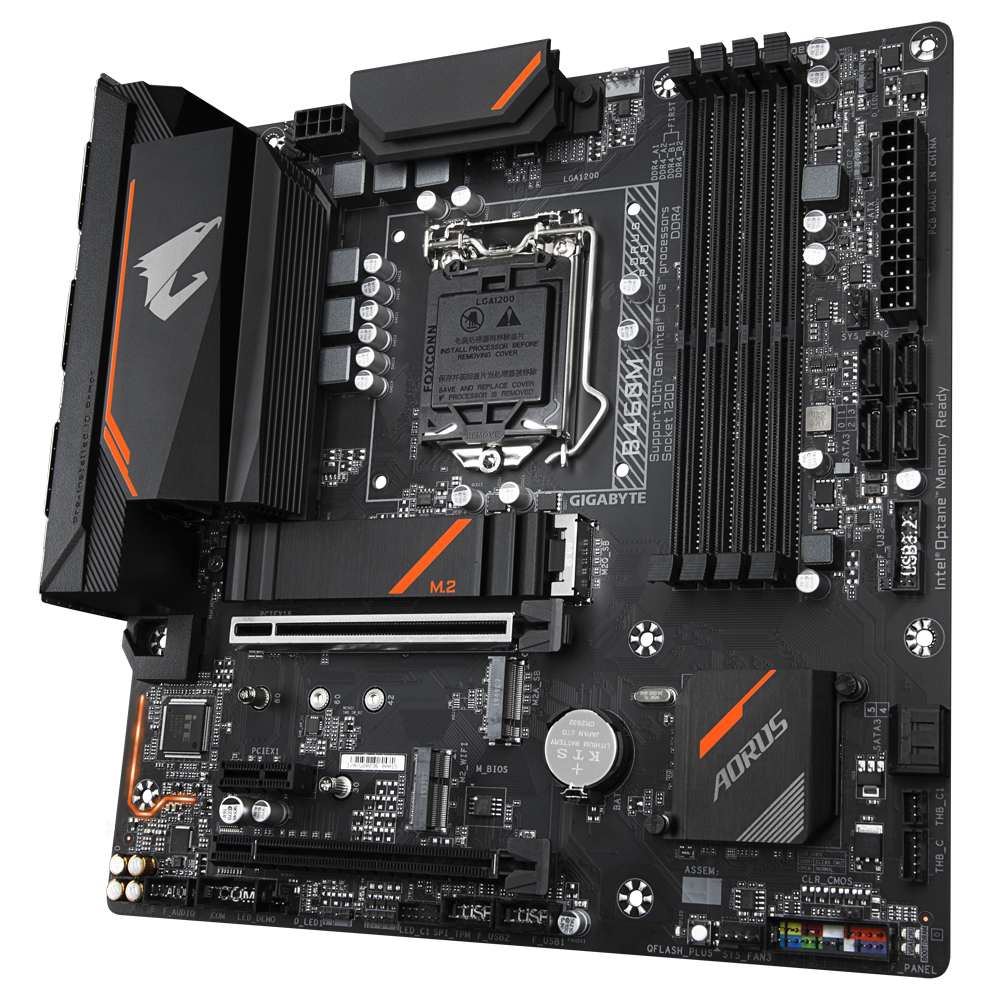

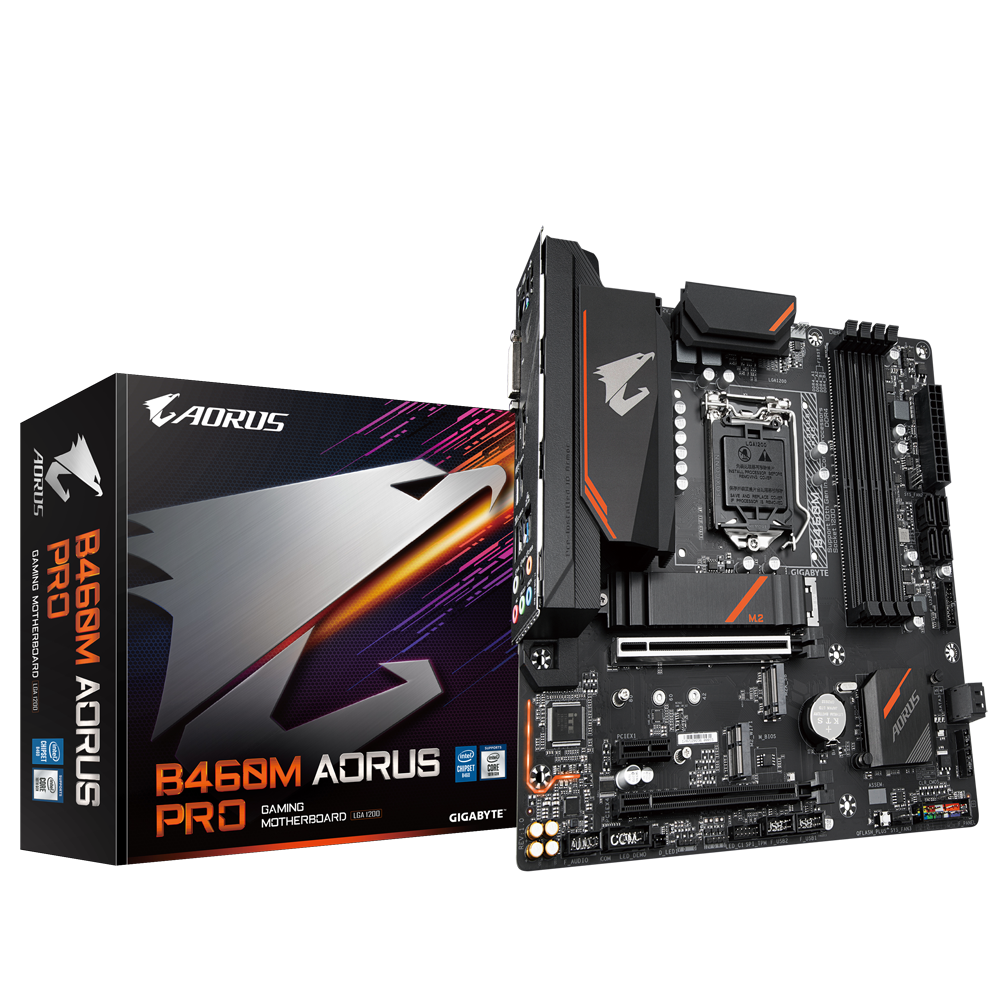

Дънна платка GIGABYTE B460M AORUS PRO

108.38/ 211.97 лв.
Спечели 108 точки с тази покупка
Изчерпан
Код: 18635
Производител
Gigabyte
Продуктов код GAB46MAPR-00-G
CPU сокет
LGA 1200
Чипсет (MB) Intel B460
Форм фактор Micro ATX
Поддържани процесори
Supports 10th Gen Intel Core Processors (Socket 1200)
Поддържана памет
DDR4
Брой слотове за памет 4
Максимален капацитет RAM памет 128 GB
Честота памет (MHz)
2933
2666
2400
2133
Поддръжка на двуканална памет Да
Вградено аудио
Realtek® ALC1200
Вграден LAN
Realtek GbE LAN chip
(10/100/1000 Mbit)
Интерфейс SATA 6 x SATA3 6.0 Gb/s
Поддръжка на RAID 0, 1, 5, 10
М2 слот
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 2 mode)
Разширителни слотове
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Supports up to ASPM L1.2 power management protocols.
Конектор захранване
1 x 24 pin
1 x 4 pin
USB портове
Chipset:
1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 1 support
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers

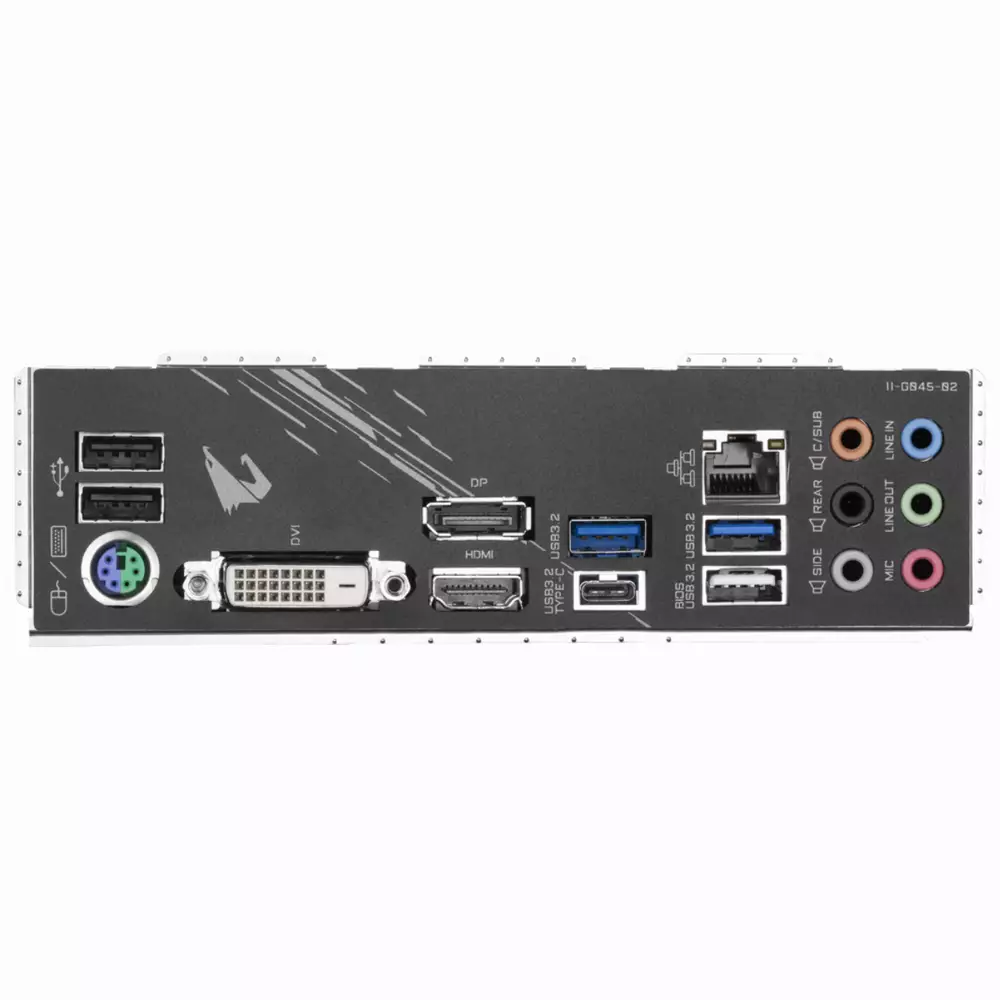

Заден I/O панел
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x DisplayPort
1 x HDMI port
1 x USB Type-C™ port, with USB 3.2 Gen 1 support
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks
Графика
Integrated Graphics Processor-Intel® HD Graphics support:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Support for up to 3 displays at the same time
Maximum shared memory of 512 MB
Комплектът включва
Ръководство
I/O Shield
2 x SATA 6Gb/s кабели
Диск с драйвери
Bios
BIOS: 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Размери 24.4 cm x 24.4 cm
Поколение процесор
10-то поколение
Гаранция 36 месеца
Все още няма ревюта за този продукт. Бъди първи!
