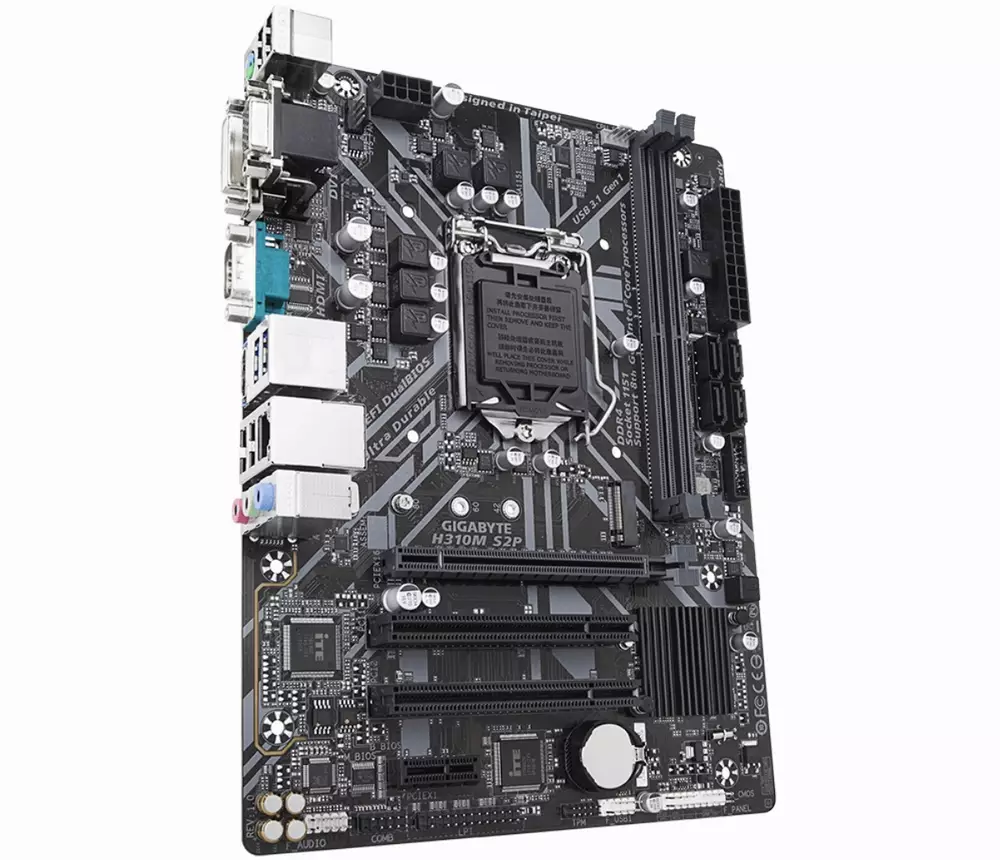

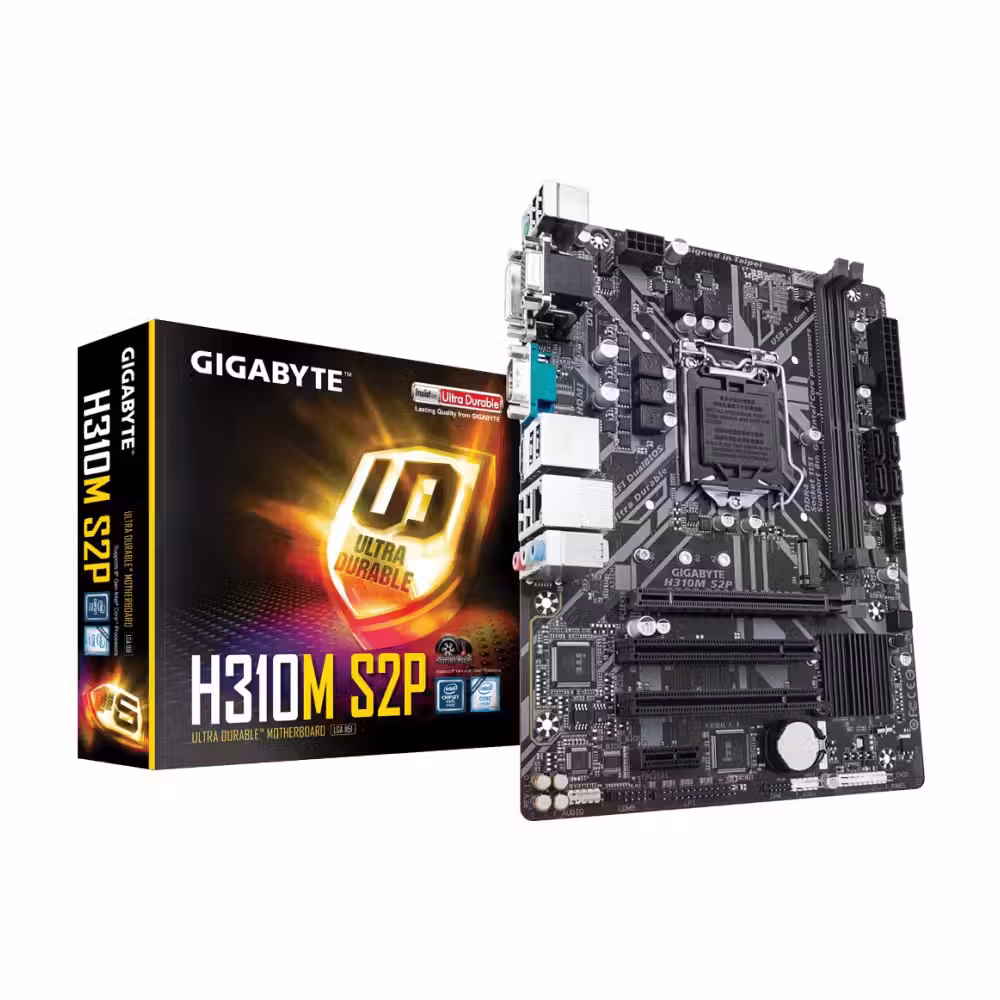

Дънна платка Gigabyte H310M S2P

72.24/ 141.29 лв.
Спечели 72 точки с тази покупка
Изчерпан
Код: 20331
Производител
Gigabyte
Продуктов код H310M S2P
CPU сокет
LGA 1151
Чипсет (MB) Intel H310
Форм фактор Micro ATX
Поддържани процесори
Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package (Go to GIGABYTE's website for the latest CPU support
L3 cache varies with CPU
Поддържана памет
DDR4
Брой слотове за памет 2
Максимален капацитет RAM памет 32 GB
Честота памет (MHz)
до 2666MHz
Поддръжка на двуканална памет Да
Вградено аудио
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Вграден LAN
Realtek GbE LAN chip
(10/100/1000 Mbit)
Интерфейс SATA 4 x SATA 6Gb/s connectors
М2 слот
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA SSD support)
Разширителни слотове
1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
2 x PCI slots
Конектор захранване
1 x 24-pin
1 x 8-pin
USB портове
4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

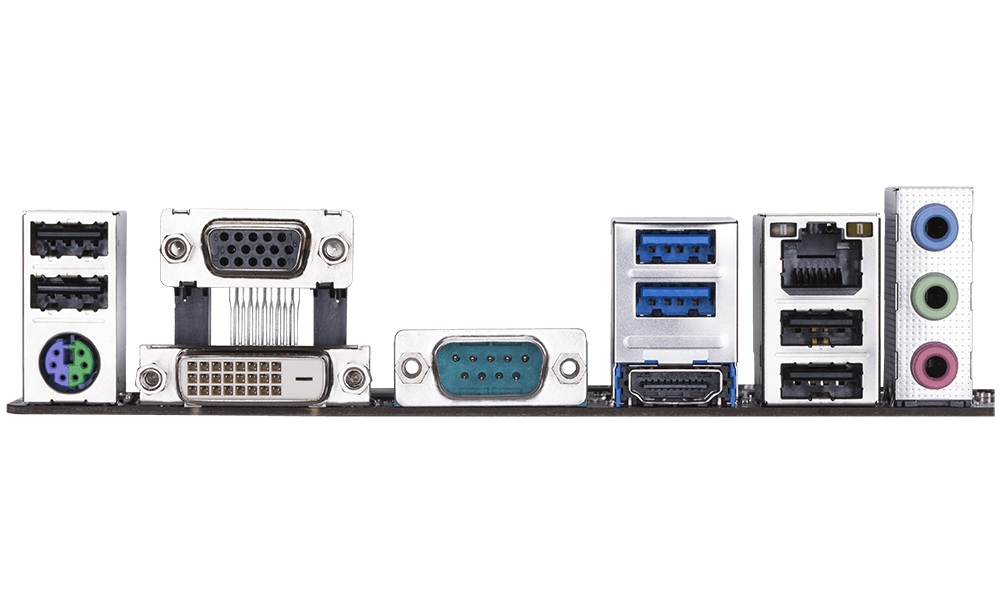

Заден I/O панел
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
1 x serial port
2 x USB 3.1 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Графика
Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2
Support for up to 3 displays at the same time
Maximum shared memory of 1 GB
Размери 24.4cm x 18.5cm
OS
Support for Windows 10 64-bit
Поколение процесор
8-мо поколение
9-то поколение
Гаранция 36 месеца
