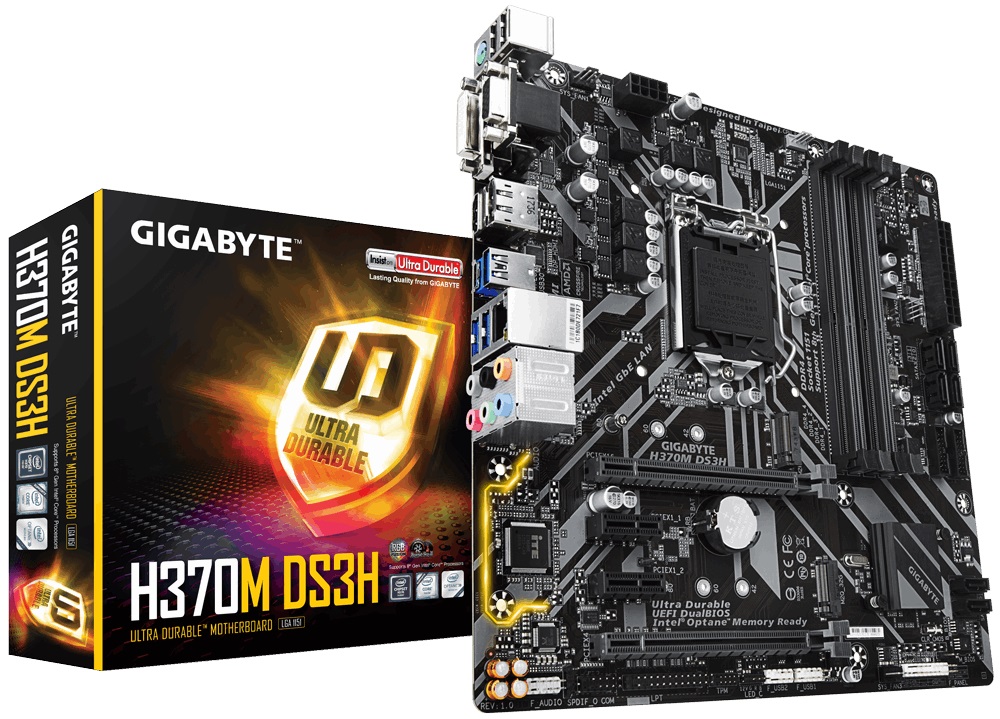

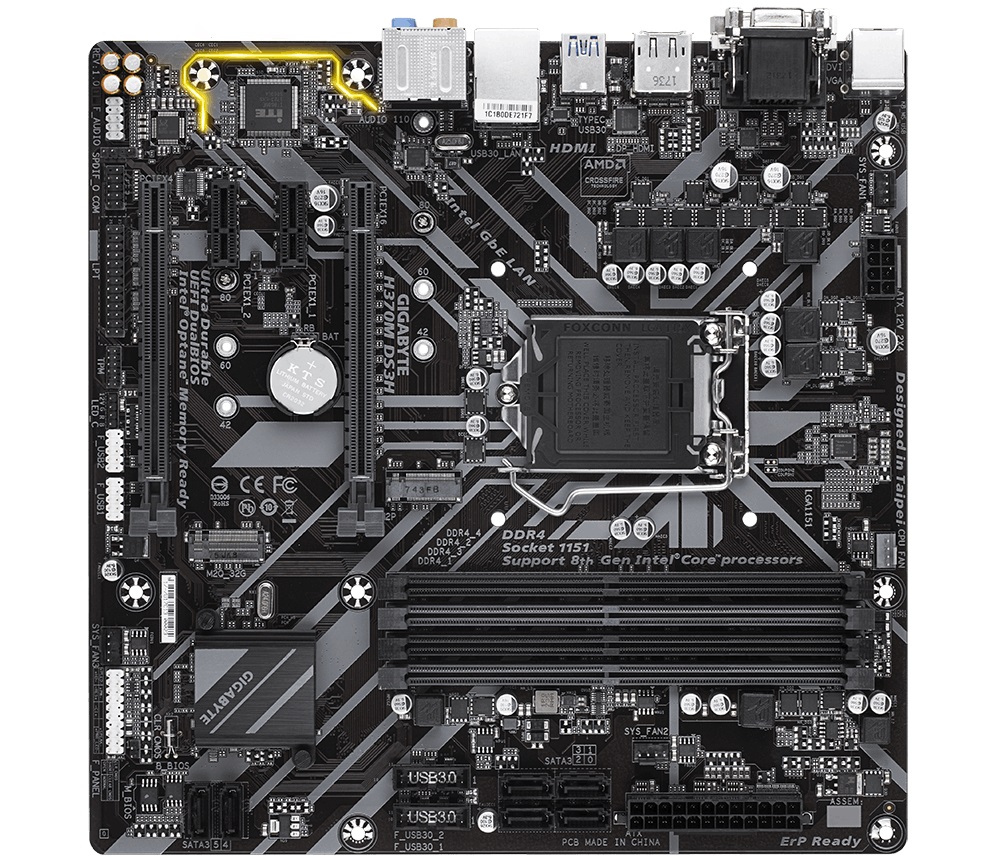

Дънна платка Gigabyte H370M DS3H
| Производител | Gigabyte |
| CPU сокет | LGA 1151 |
| Чипсет (MB) | Intel H370 |
| Форм фактор | Micro ATX |
| Поддържани процесори | Support for 9th and 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors//Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 4 |
| Максимален капацитет RAM памет | 64 GB |
| Честота памет (MHz) | до 2666MHz |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Вграден LAN | Intel GbE LAN chips (10/100/1000 Mbit) |
| Интерфейс SATA | 6 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0, 1, 5, 10 |
| М2 слот | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x2 SSD support) (M2P_16G) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2Q_32G) |
| Разширителни слотове | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| Конектор захранване | 1 x 24-pin 1 x 8-pin |
| USB портове | 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support 7 x USB 3.1 Gen 1 ports (3 ports on the back panel, 4 ports available through the internal USB headers) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |

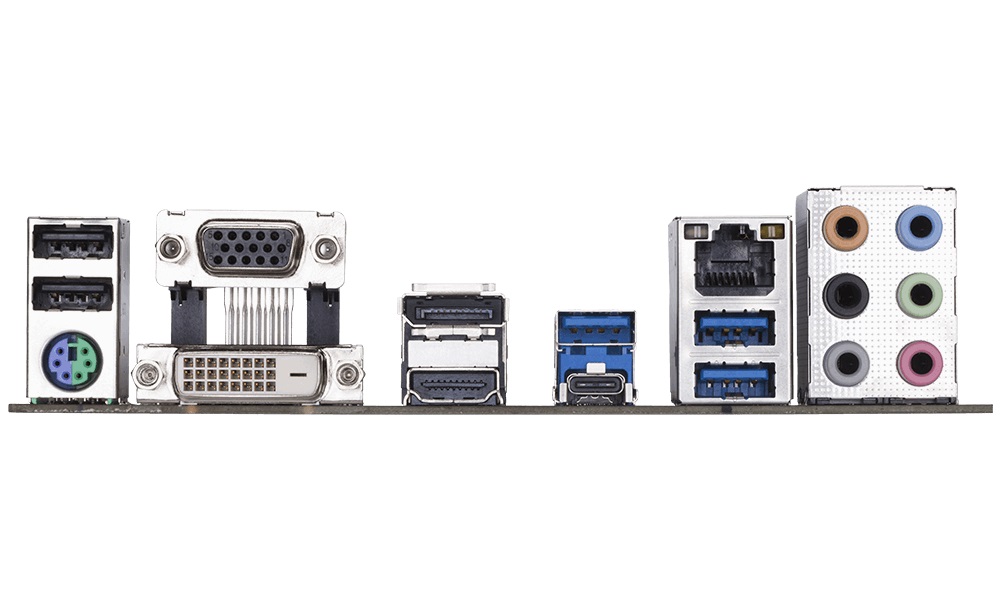

| Заден I/O панел | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 1 x DisplayPort 1 x USB Type-C™ port, with USB 3.1 Gen 1 support 3 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks |
| Графика | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. Support for up to 3 displays at the same time Maximum shared memory of 1 GB Actual support may vary by CPU. |
| Размери | 24.4 cm x 24.4 cm |
| OS | Support for Windows 10 64-bit |
| Поколение процесор | 8-мо поколение 9-то поколение |
| Гаранция | 36 месеца |
