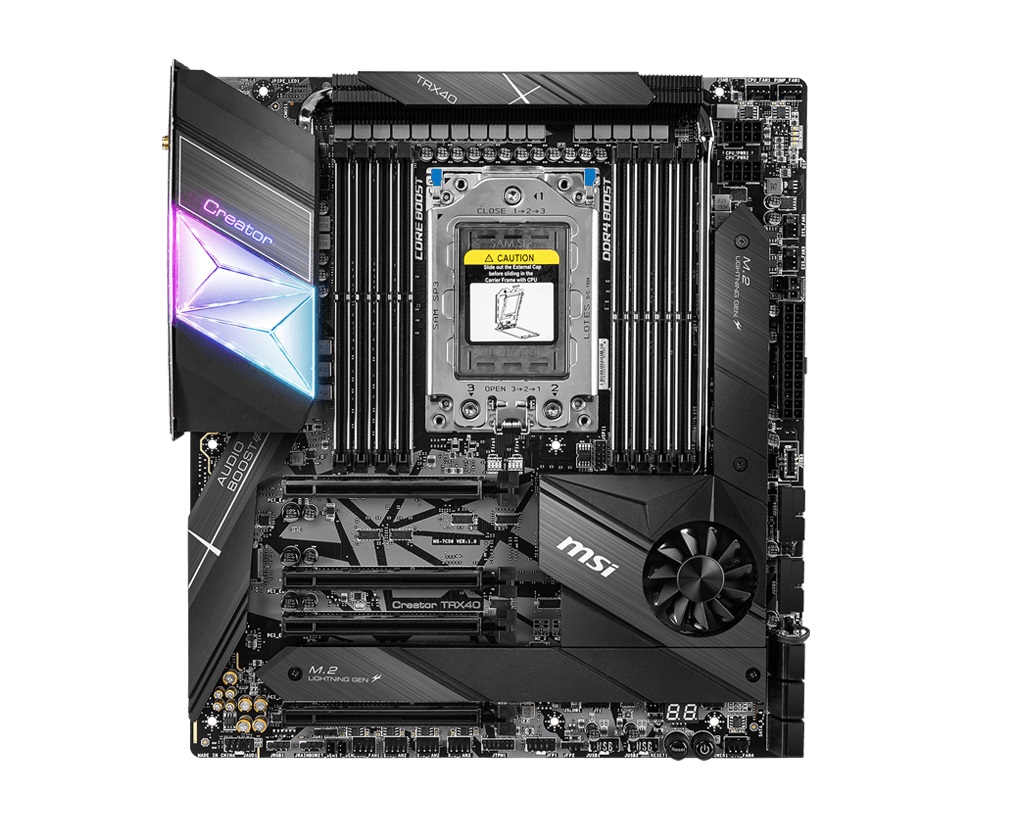

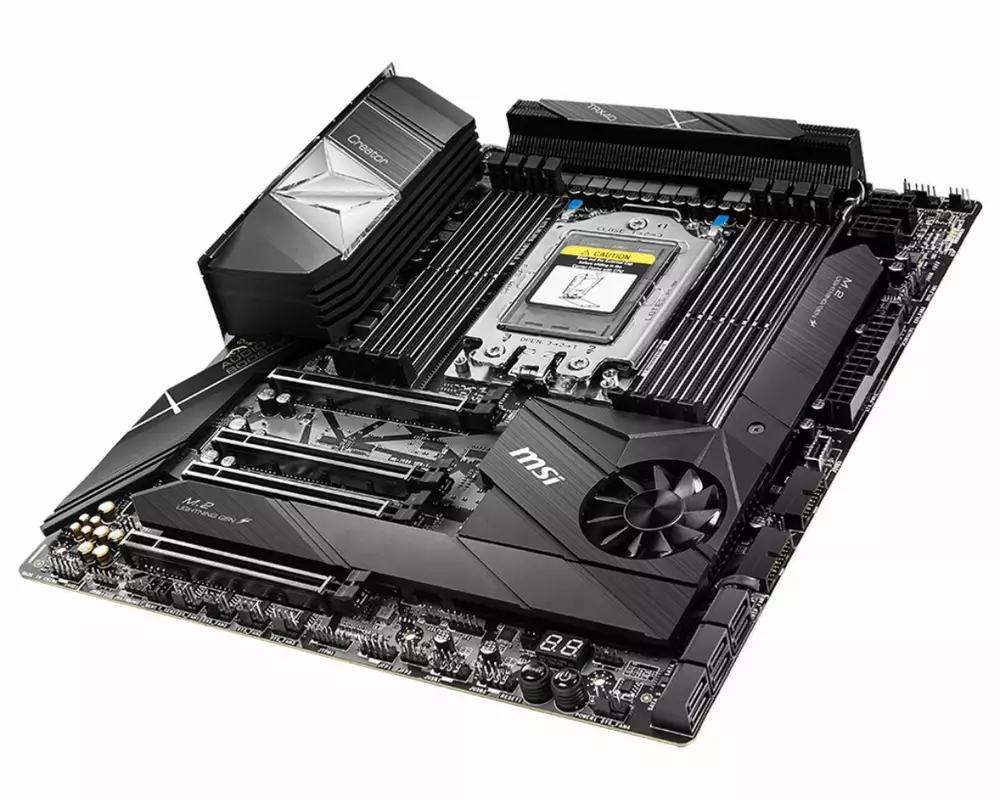

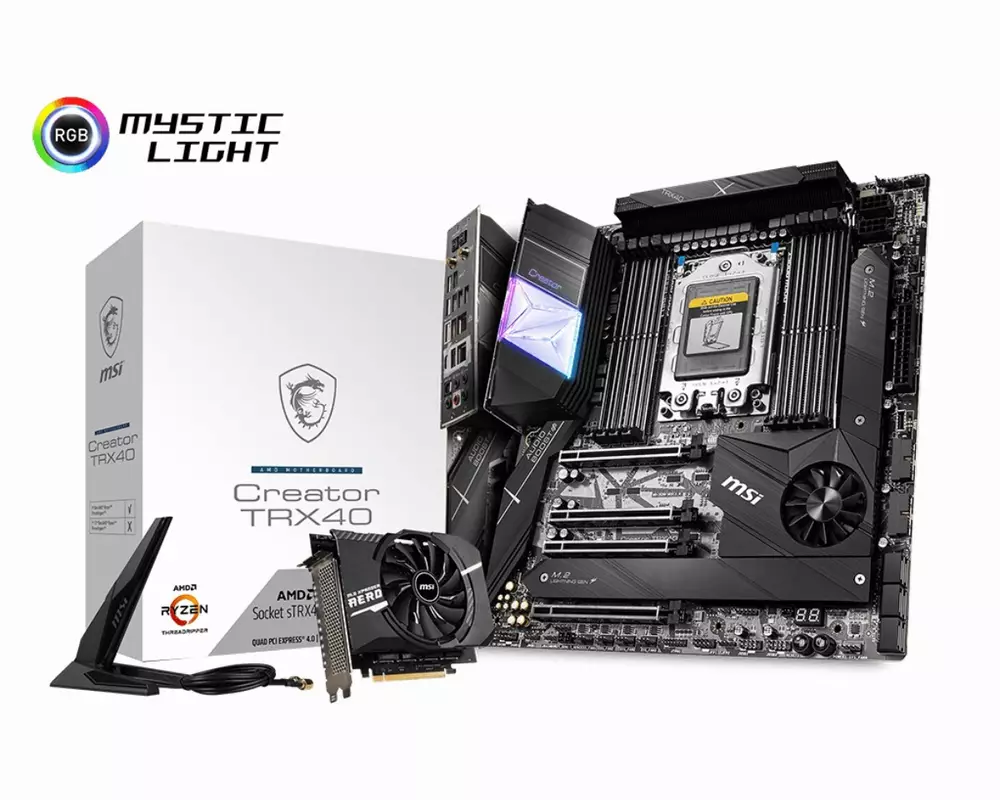

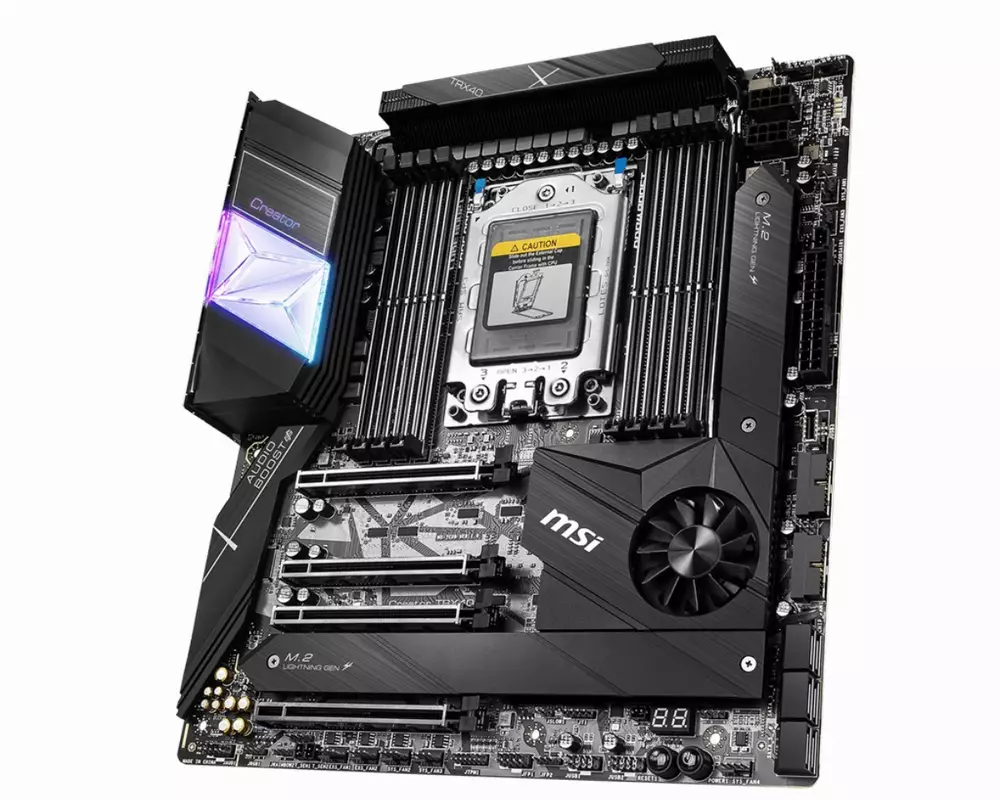

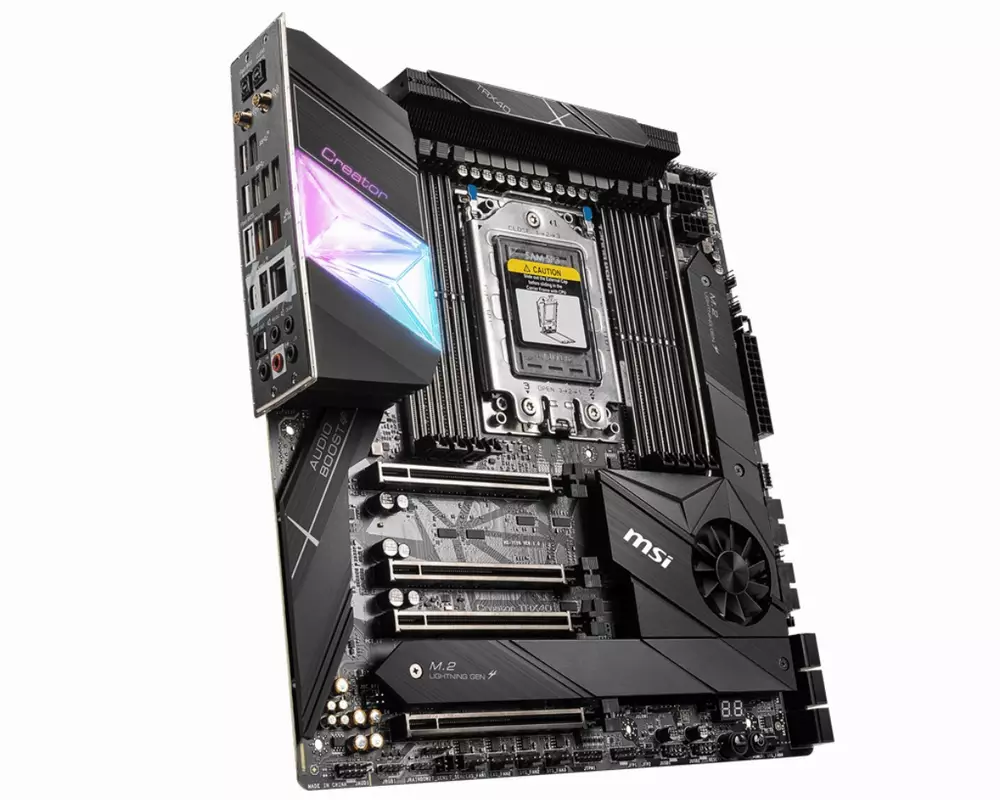

Дънна платка MSI CREATOR TRX40
| Производител | MSI |
| CPU сокет | sTRX4 |
| Чипсет (MB) | AMD TRX40 |
| Форм фактор | Extended ATX |
| Поддържани процесори | AMD Ryzen Threadripper 3th Gen |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 8 |
| Максимален капацитет RAM памет | 256 GB |
| Честота памет (MHz) | до 4666+(OC) |
| Поддръжка на двуканална памет | 4 канална архитектура |
| Вградено аудио | 1x Realtek® ALC1220 Codec 7.1-Channel High Definition Audio 1x Realtek® ALC4050H Codec Supports front & rear panel Mic-in Supports S/PDIF output |
| Вграден Wi-Fi | Intel® Wi-Fi 6 AX200 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO |
| Bluetooth версия | Bluetooth V5.1 |
| Вграден LAN | Intel I211-AT |
| Интерфейс SATA | 6 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0,1,10 |
| М2 слот | 1x M.2 slot (M2_3, Key M) Supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices 3rd Gen AMD Ryzen™ Threadripper™ Desktop Processor 2x M.2 slots (M2_1 & M2_2, Key M) M2_1 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices M2_2 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices |
| Разширителни слотове | 4x PCIe 4.0 x16 slots (support x16/x8/x16/x8 mode) |
| Конектор захранване | 1 x 24-pin 2 x 8-pin |
| USB портове | AMD® TRX40 Chipset 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port on the back panel and 1 Type-C port through the internal USB connector) 8 x USB 3.2 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen1 connectors) 4 x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors 3rd Gen AMD Ryzen™ Threadripper™ Desktop Processor 4 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel ASMedia® ASM3242 Chipset 1 x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel |
| Заден I/O панел | Clear CMOS Button Wireless / Bluetooth Gigabit LAN 10G LAN Audio Connectors Flash BIOS Button USB 3.2 Gen2 Type-A USB 3.2 Gen1 Type-A USB 3.2 Gen2 Type-A USB 3.2 Gen2x2 20G Type-C USB 3.2 Gen1 Type-A |
| Мулти GPU технология | Supports 3-Way NVIDIA SLI Technology; Supports 3-Way AMD CrossFire Technology |
| Размери | 30.4 cm x 27.7 cm |
| OS | Microsoft Windows 10 64-bit |
| Поколение процесор | 3-то поколение |
| Гаранция | 36 месеца |
Все още няма ревюта за този продукт. Бъди първи!
