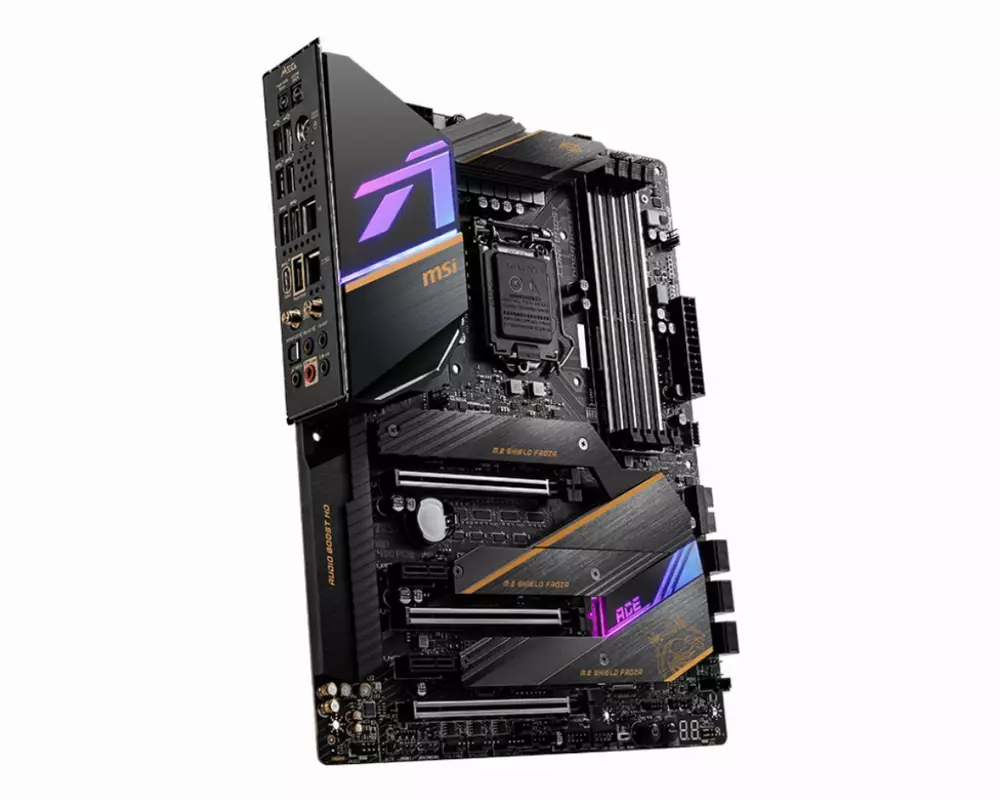

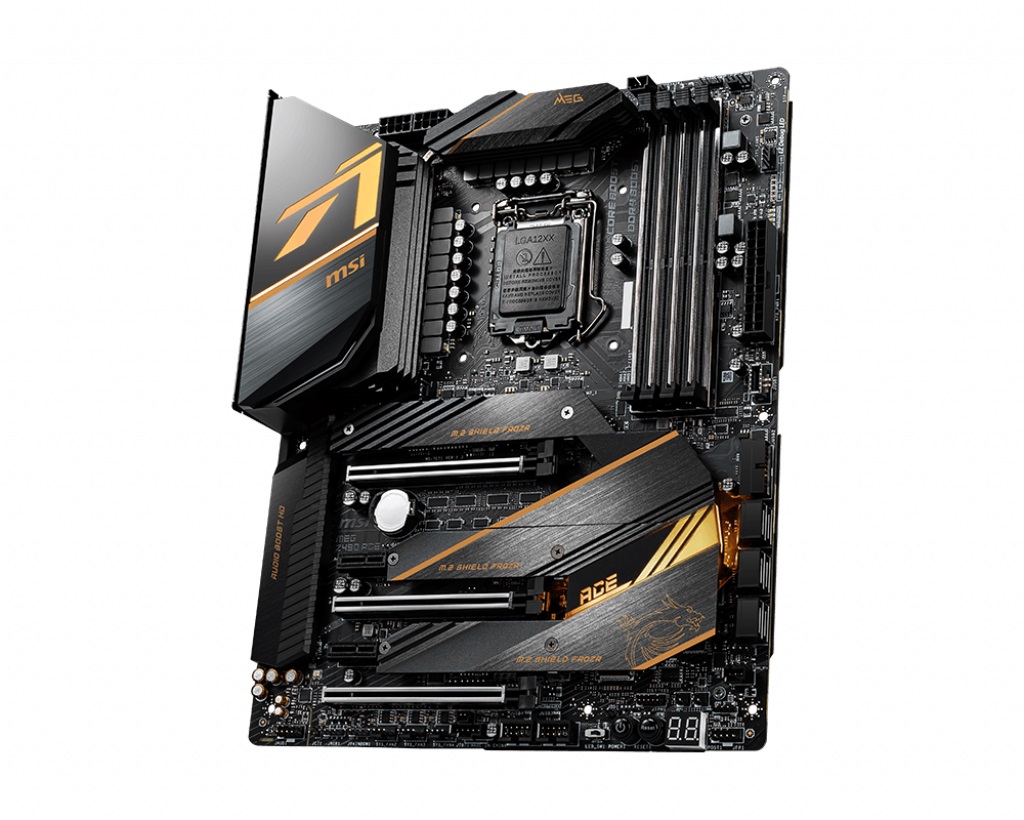

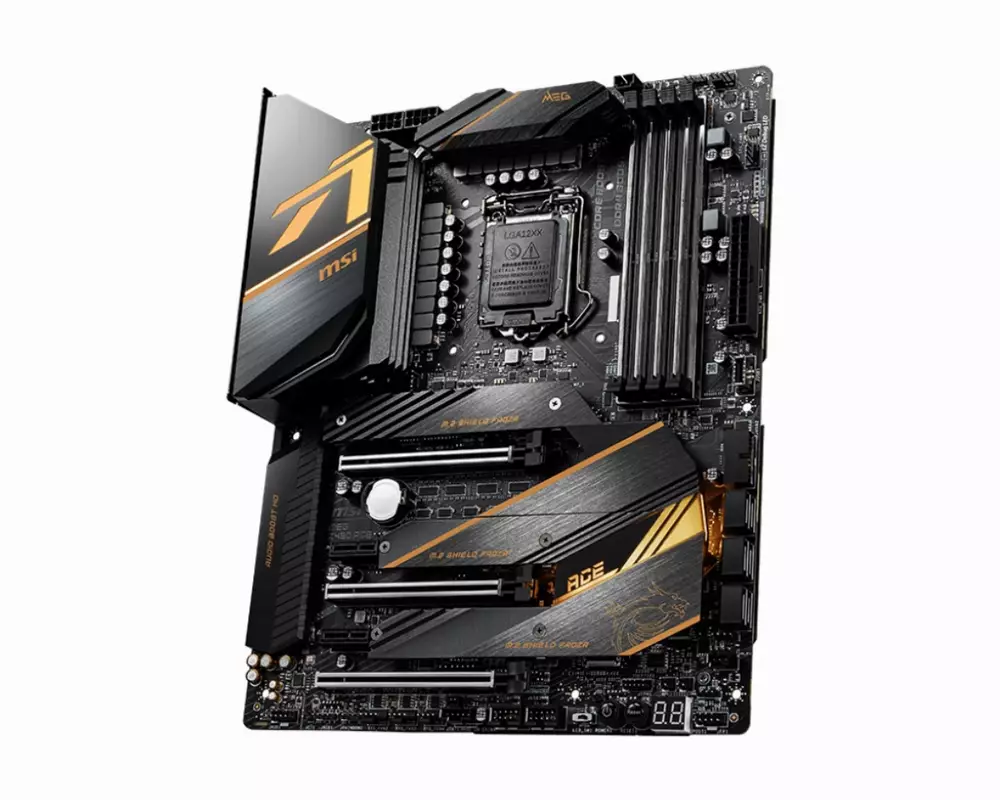

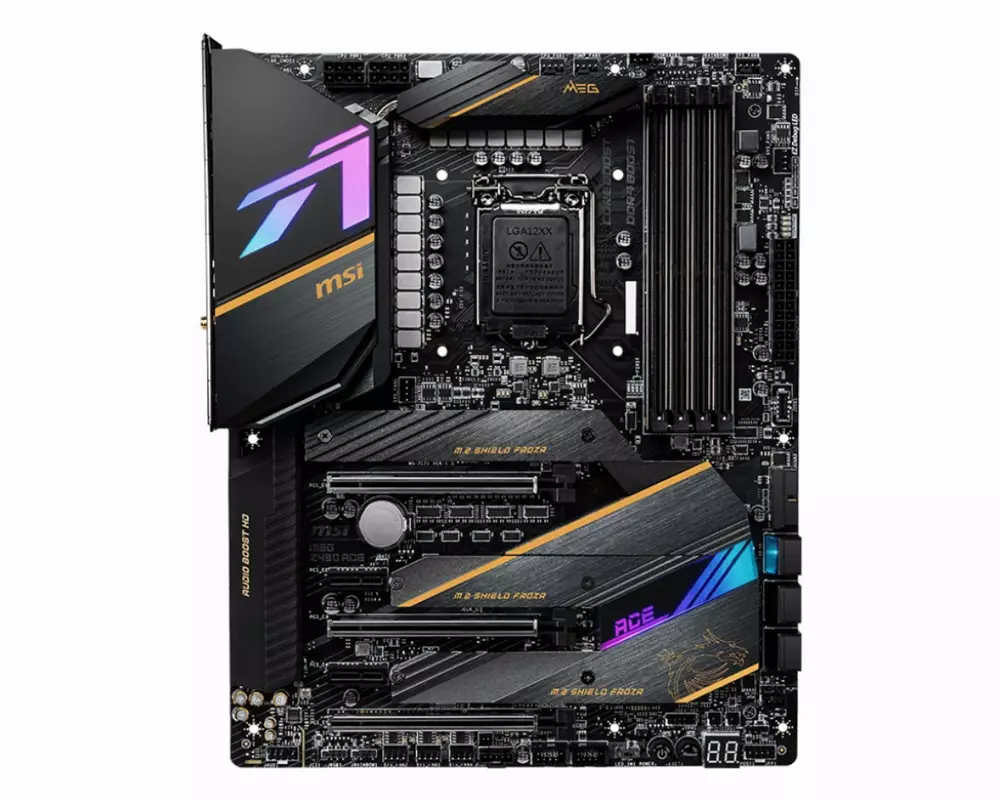

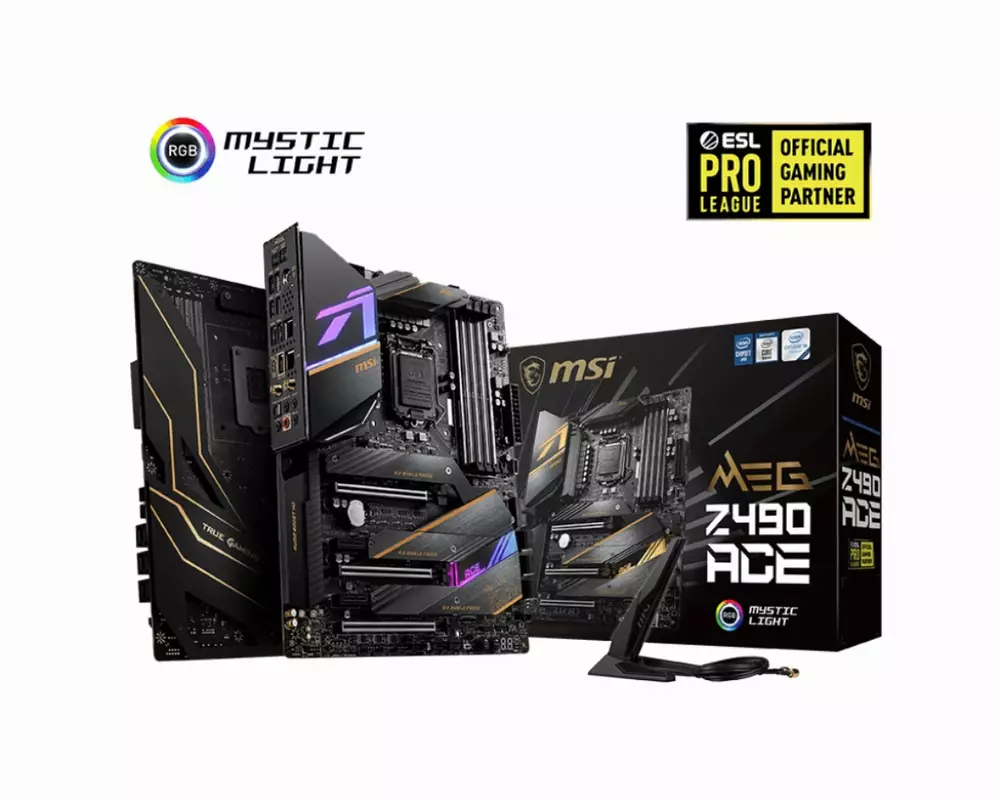

Дънна платка MSI MEG Z490 ACE
| Производител | MSI |
| CPU сокет | LGA 1200 |
| Чипсет (MB) | Intel Z490 |
| Форм фактор | ATX |
| Поддържани процесори | Supports 10th Gen Intel Core and Pentium Gold /Celeron processors for LGA 1200 socket |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 4 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет (MHz) | до 4800MHz (O.C.) |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek® ALC1220 Codec + ESS SABRE9018Q2C combo DAC |
| Вграден Wi-Fi | Intel AX201 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps WiFi 6 Pre-Certified Supports Bluetooth® 5.1 , FIPS, FISMA The Wireless module is pre-install in the M2 (Key-E) slot |
| Bluetooth версия | Bluetooth V5.1 |
| Вграден LAN | 1x Realtek® 8125B 2.5G LAN controller 1x Intel® I219V 1G LAN controller |
| Интерфейс SATA | 6 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1 and RAID 5 for M.2 PCIe storage devices |
| М2 слот | 3x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices1 M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices2 M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready3 Supports Intel® Smart Response Technology for Intel Core™ processors |
| Разширителни слотове | 3x PCIe 3.0 16 slots (2 from CPU, 1 from PCH, support 16/0/4, 8/8/4) 2x PCIe x1 slots (from PCH) |
| Конектор захранване | 1 x 24-pin 2 x 8-pin |
| USB портове | Intel® Z490 Chipset 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A ports on the back panel, 1 Type-C internal connector) 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal USB connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) ASMedia® 3241 chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel |

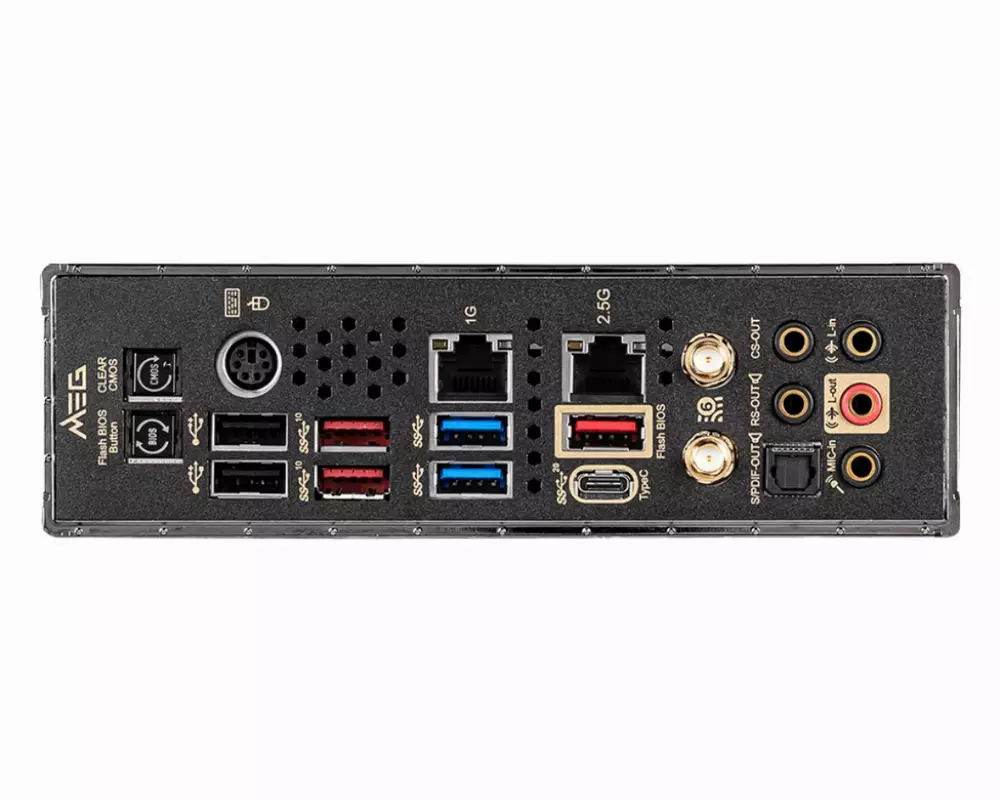

| Заден I/O панел | Clear CMOS Button PS/2 Keyboard / Mouse Port 1G LAN 2.5G LAN Wi-Fi /Bluetooth Antenna Connectors HD Audio Connectors Flash BIOS Button USB 2.0 Ports USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) Optical S/PDIF-Out |
| Мулти GPU технология | Supports 2-Way NVIDIA® SLI™ Technology; Supports 3-Way AMD® CrossFire™ Technology |
| Размери | 30.5 cm x 24.4 cm |
| OS | Support for Windows® 10 64-bit |
| Поколение процесор | 10-то поколение |
| Гаранция | 36 месеца |
