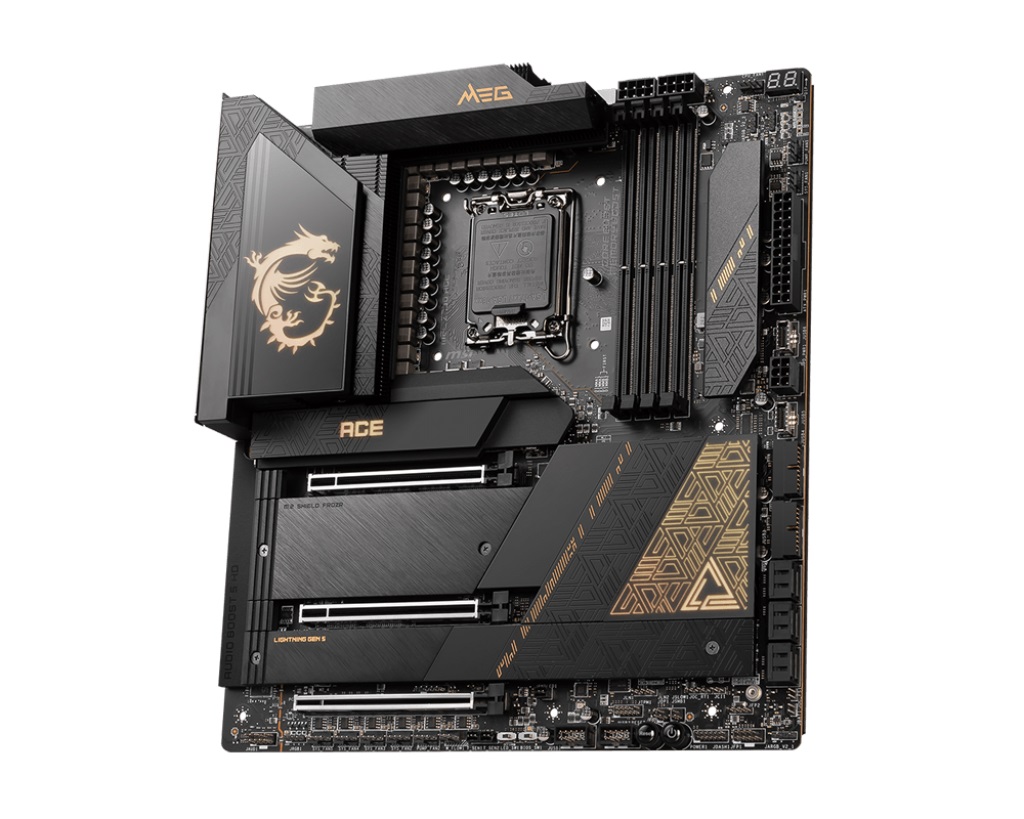

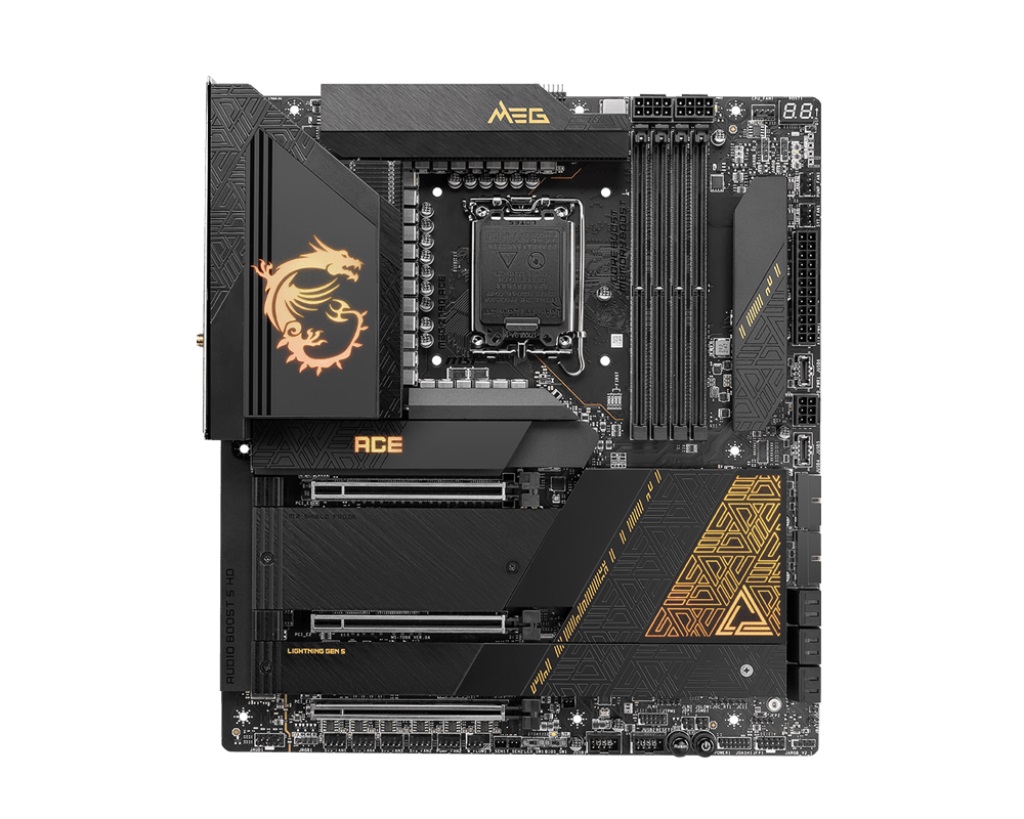

Дънна платка MSI MEG Z790 ACE LGA1700 DDR5
| Производител | MSI |
| CPU сокет | LGA 1700 |
| Чипсет (MB) | Intel Z790 |
| Форм фактор | ATX |
| Поддържани процесори | LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* |
| Поддържана памет | DDR5 |
| Брой слотове за памет | 4 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет (MHz) | До 7800+ (OC) |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel High Definition Audio |
| Вграден Wi-Fi | WiFi 6E |
| Bluetooth версия | Bluetooth V5.3 |
| Вграден LAN | 2 x Intel 2.5Gb Ethernet |
| Интерфейс SATA | 6 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0, 1, 5, 10 |
| М2 слот | 5 x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_4 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices |
| Разширителни слотове | 3 x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Конектор захранване | 1 x 24-pin 2 x 8-pin |
| USB портове | 4 x USB 2.0 (Front) 4 x USB 3.2 Gen1 Type A (Front) 7 x USB 3.2 Gen2 Type A (Rear) 1 x USB 3.2 Gen2 Type C (Rear) 2 x USB 3.2 Gen2x2 Type C (Front) |
| Заден I/O панел | Clear CMOS Button Flash BIOS Button 2.5G LAN 2.5G LAN Thunderbolt 4 40Gbps (Type-C) Wi-Fi / Bluetooth Audio Connectors Smart Button USB 3.2 Gen 2 10Gbps (Type-C Display port) USB 3.2 Gen 2 10Gbps (Type-A) Mini DisplayPort Input (for Thunderbolt passthrough) Optical S/PDIF-Out |
| Графика | Thunderbolt chip JHL8540 2 x Thunderbolt4 (USB-C) ports Q’ty Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel) |
| Размери | 30.5 cm x 24.4 cm |
| OS | Microsoft Windows 10, Microsoft Windows 11 |
| Поколение процесор | 12-то поколение 13-то поколение 14-то поколение |
| Гаранция | 36 месеца |
